Transformer Test Solutions

LISUN’s transformer test solutions are designed to meet the comprehensive requirements of international standards, providing professional support for testing transformers, reactors, power supply units, and their combinations. IEC 61558-1:2017 establishes extensive safety requirements and test specifications for these products, covering aspects such as electrical insulation, mechanical strength, and protection against electric shock, laying a solid foundation for ensuring product safety in various applications. IEC 60076-1:2011 focuses on power transformers, defining key concepts, rated values, and operating conditions, serving as a fundamental guide for their design, manufacturing, and operation. IEC 62041:2010 addresses electromagnetic compatibility (EMC) requirements, specifying emission and immunity limits to ensure these products coexist harmoniously in the electromagnetic environment without causing or being affected by excessive interference.

LISUN’s transformer test solutions cover key items in relevant standards with professional equipment, enabling diverse tests: insulation/creepage checks, hazardous part identification, touch current measurement, test probe-related tests, and assessments of heat resistance, humidity, aging, rust resistance, vibration, tumbling, impact resistance, and enclosure protection. They also include material flammability, fire/heat resistance, tracking resistance, impulse dielectric performance, short-circuit impedance, voltage drop, temperature rise, total harmonic content, and EMC tests (electrostatic discharge, radiated fields, fast transients, surges, etc.). One-stop support helps manufacturers and laboratories ensure products meet international standards, guaranteeing safety, reliability, and stable performance in use.

Transformer Test Solution

Standard:

Part 2	IEC 61558-12017	Safety of transformers, reactors, power supply units and combinations thereof – Part 1:General requirements and tests
Part 2	IEC 60076-1:2011	Power transformers – Part 1:General
Part 3	IEC 62041:2010	Transformers,power supplies,reactors and similar products-EMC requirements

Part 1 IEC 61558-12017 Safety of transformers, reactors, power supply units and combinations thereof – Part 1:General requirements and tests

LISUN supplies the fully test solutions for the following IEC 61558-1：2017, please see the below excel table:

IEC 61558-1：2017 Clause and Subject	LISUN MODEL
3.7 Insulation	WB2681A
18.2 Insulation resistance	WB2681A
3.7.9 creepage distance	CK-1
9.2.1 Determination of hazardous-live-parts	MNTC-G1

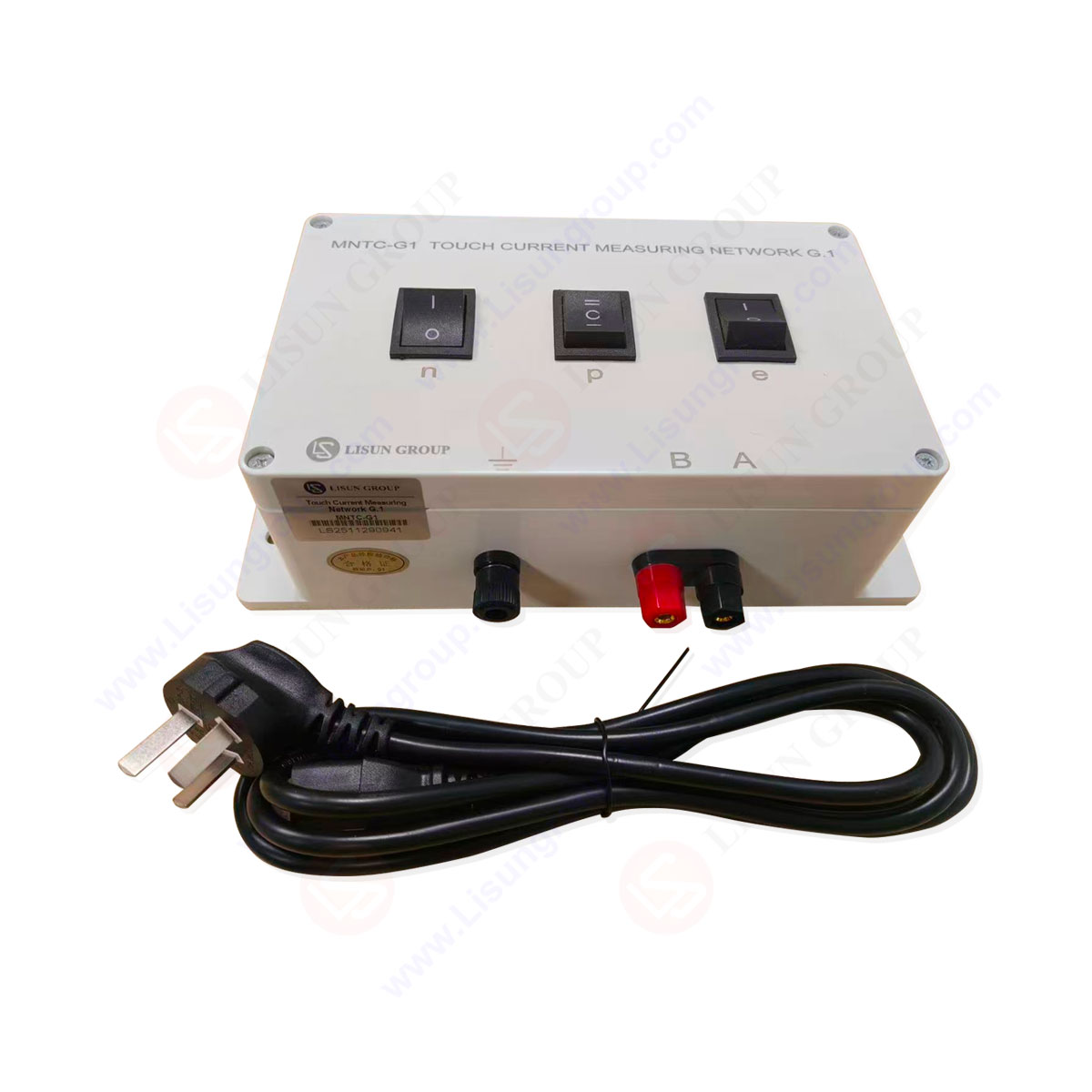

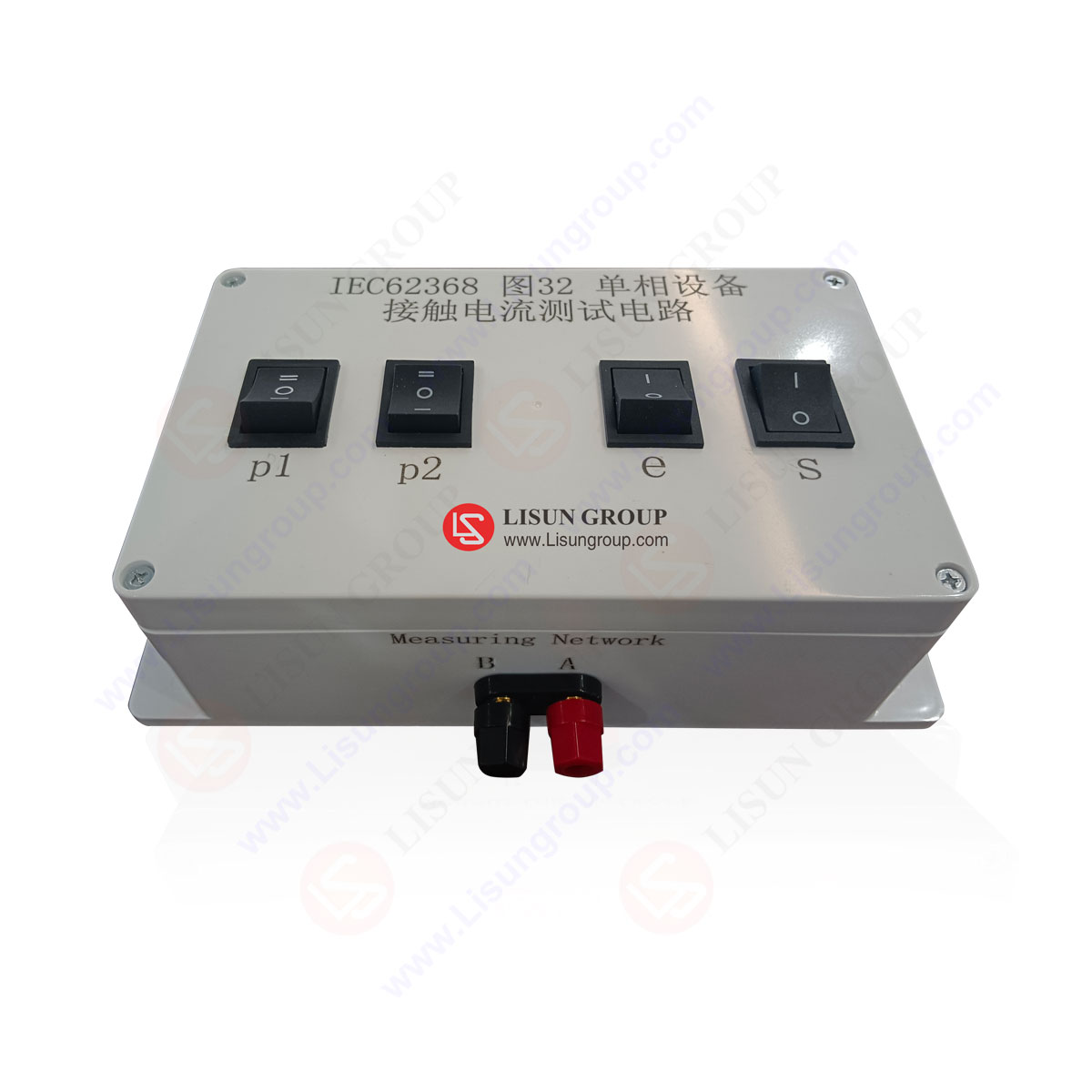

18.5.2 Touch current	MNTC-G1
9.2.2 IEC 61032, test probe 13	SMT-1312

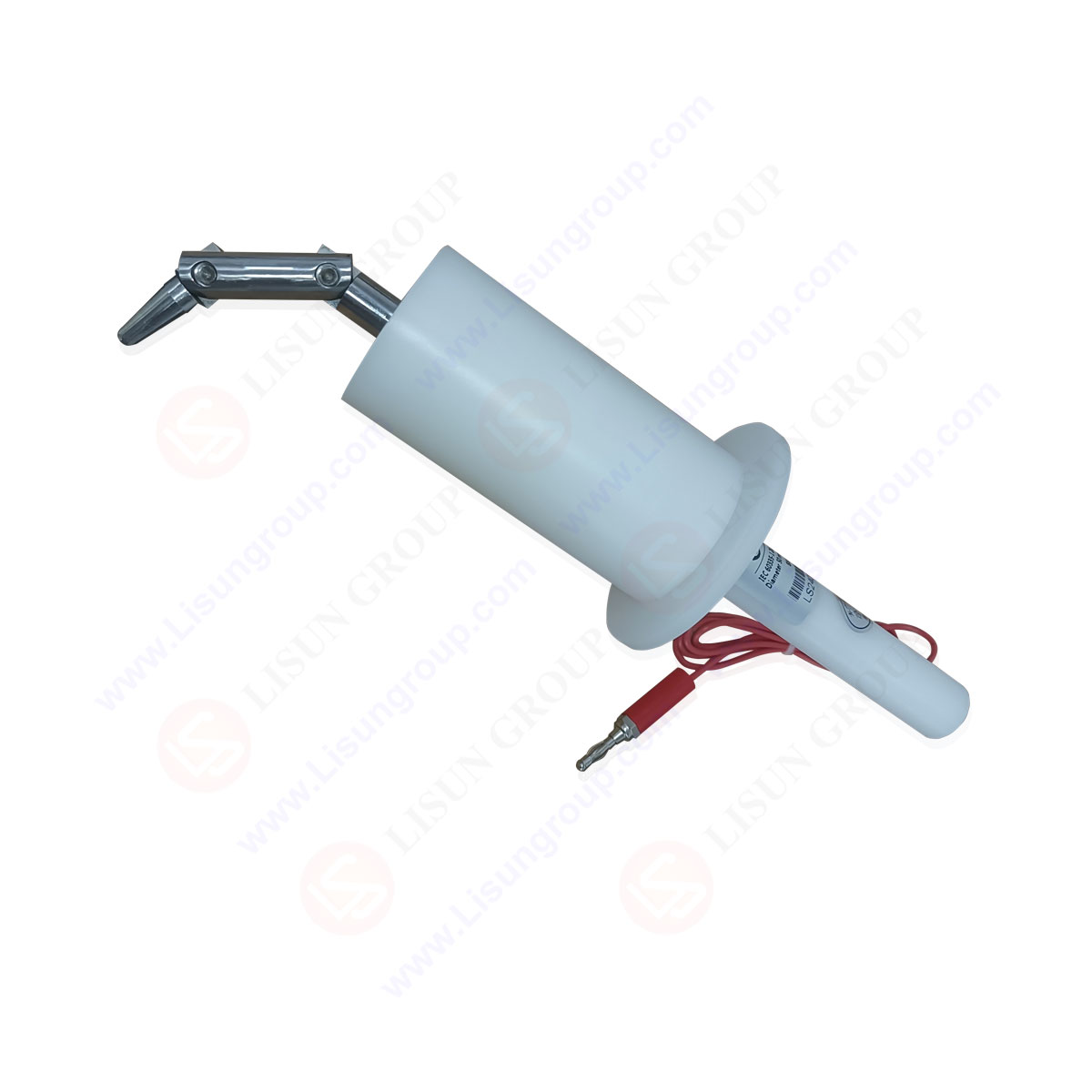

9.2.2 IEC 61032, test probe B	SMT-PBC
14.3.2 Heat run	GDJS-015B
17.2 Humidity treatment
19.10 a)Ageing test
28 Resistance to rusting
14.3.3 Vibration	LVD-100KG
16.4 a) tumbling barrel Test&Distortion of pins and damage	LS-DDT1-B
16.4 a) tumbling barrel Test&Distortion of pins and damage	LS-B10
17.1 Degrees of protection provided by enclosures (IP code)	JL-X
17.1.2 test probe C and D of IEC 61032	SMT-1203C

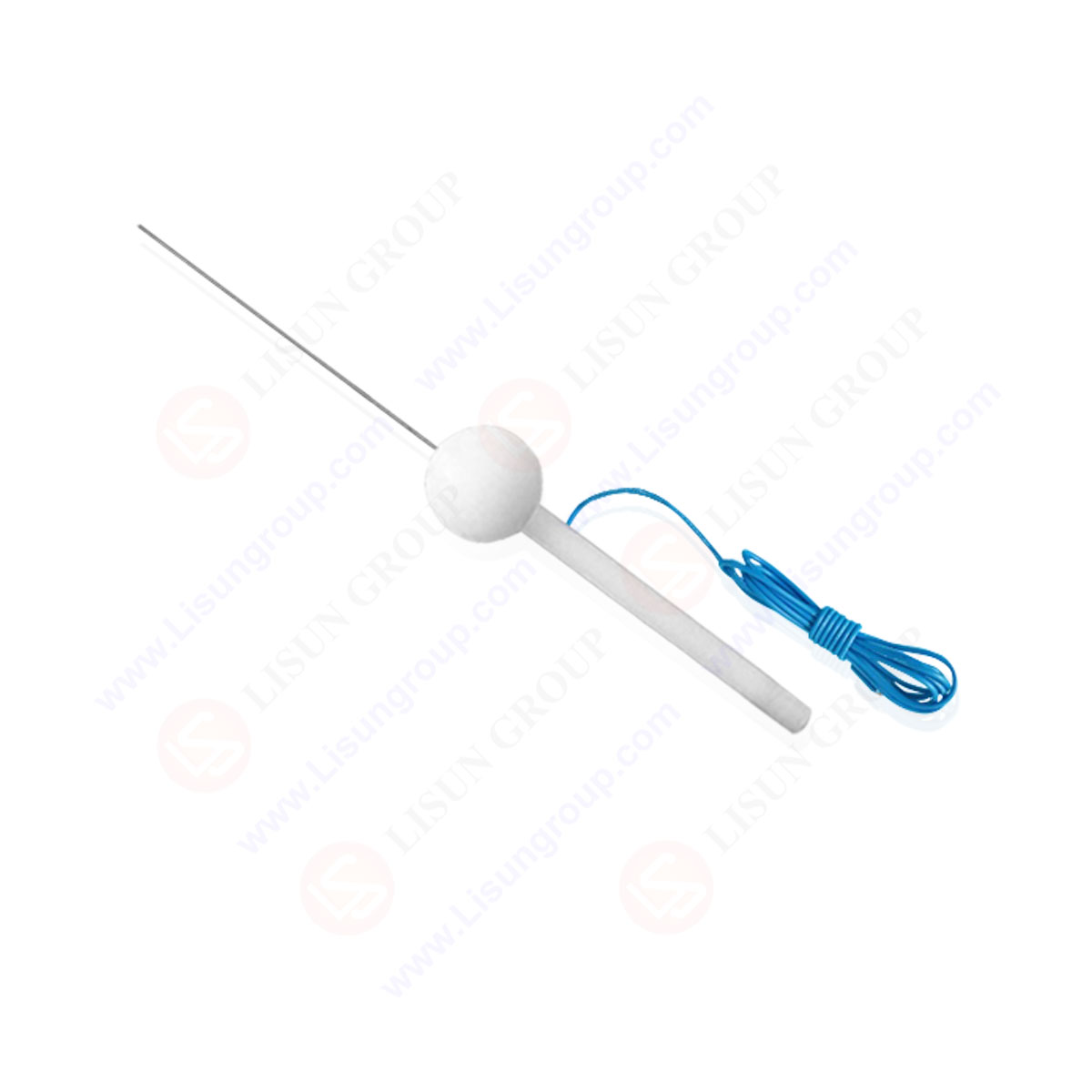

17.1.2 test probe C and D of IEC 61032	SMT-1204C
19.1.4 Isolating transformers and safety isolating transformers	ITEU-SP4K
19.2 Flammability of materials	ZRS-3H
27.4 Resistance to fire
Annex E) Glow-wire test
19.10 b）Impact test	IK01-07
22.9.4 Flexing Test	SW-6
27.2 Resistance to heat	ZBP-T
27.5 Resistance to tracking	TTC-1
Annex G Tracking test	TTC-1
Annex R.1 Impulse dielectric test	SUG255

Part 2 IEC 60076-1:2011 Power transformers – Part 1:General

LISUN supplies the fully test solutions for the following IEC 60076-1:2011, please see the below excel table:

IEC 60076-1:2011 Clause and Subject	LISUN MODEL
3.7 Short-circuit impedance and voltage drop	LS2789
3.8 Temperature rise	GDJS-015B
3.13.2 total harmonic content	LS2090-IEC
5.5 Provision for unusual service conditions
dripping water	JL-X
salt spray	YWX/Q-010
excessive and abrasive dust	SC-015
extreme mechanical shock and vibrations	LVD-100KG
solar radiation	UV-263LS

Part 3 IEC 62041:2010 Transformers,power supplies,reactors and similar products-EMC requirements

LISUN supplies the fully test solutions for the following IEC 62041:2010, please see the below excel table:

IEC 62041:2010 Clause and Subject	LISUN MODEL
5.1.2.2 Electrostatic discharges	ESD61000-2
5.1.2.3 Radiated, radio frequency electromagnetic field	GTEM-2
5.1.2.4 Electrical fast transient/burst	EFT61000-4
5.1.2.5 Conducted disturbances, inducted by radio-frequency fields	RFCI61000-6
5.1.2.6 Surge	SG61000-5
5.1.2.7 Voltage dips and short interruptions	CSS61000-11
5.2 Emission	EMI-9KB
