Electrodynamic Shaker: Simulating Vibration Conditions Using Electromagnetic Systems – A Detailed Examination of the LISUN LVD-100KG Electrodynamic Vibration Generator System

This paper explores the role of electrodynamic shaker, particularly focusing on the LISUN LVD-100KG Electrodynamic Vibration Generator System. Electrodynamic shakers are widely used in various industries for simulating vibration conditions across a range of environmental and mechanical scenarios. By generating controlled vibrations, these systems help in stress testing components, ensuring they meet performance and durability standards. The LISUN LVD-100KG serves as an ideal case study for understanding how electrodynamic vibration systems are employed in research and development, quality assurance, and production line testing. This paper provides a detailed analysis of how electrodynamic systems function, their applications, and real-world examples, with accompanying data tables that demonstrate performance metrics under different conditions.

1. Introduction

In today’s industrial landscape, ensuring that components, devices, and products are capable of withstanding various physical stresses is essential. One of the most critical factors to evaluate is the response of these items to vibration. Whether in automotive, aerospace, electronics, or consumer goods manufacturing, vibration testing has become an indispensable part of product design and verification. An electrodynamic shaker plays a central role in this type of testing. It utilizes electromagnetic forces to generate vibrations, allowing for the simulation of conditions that products may encounter during their lifecycle.

The LISUN LVD-100KG Electrodynamic Vibration Generator System is a state-of-the-art electrodynamic shaker designed for rigorous vibration testing under varying conditions. This system is suitable for testing both small and large components, making it versatile across multiple industries. In this paper, we will explore how the electrodynamic shaker works, its technical capabilities, and how it is utilized in various applications.

2. Working Principles of Electrodynamic Shakers

An electrodynamic shaker operates using electromagnetic principles to generate vibrations. It typically consists of the following components:

Armature: A moving element where the test item is mounted. It is driven by electromagnetic forces to simulate vibrations.
• Field Coil: Surrounds the armature and generates a magnetic field when current is applied.
• Amplifier: Regulates the current applied to the field coil, controlling the vibration amplitude and frequency.
• Controller: Manages the vibration profile, enabling precise adjustments to frequency, amplitude, and test duration.

The armature moves in response to alternating current supplied to the field coil, which induces vibrations. These vibrations are transferred to the test item, simulating real-world conditions such as transportation, operation, or environmental stresses.

3. Applications of Electrodynamic Shakers

The applications of electrodynamic shakers are extensive across different industries. Some key areas include:

• Automotive: Testing vehicle components like dashboards, electronics, and chassis for durability against road-induced vibrations.
• Aerospace: Simulating high-frequency vibrations encountered during take-off, flight, and landing for spacecraft, satellites, and aircraft components.
• Electronics: Evaluating the robustness of circuit boards, sensors, and other delicate components under vibrational stress.
• Consumer Goods: Ensuring products like washing machines, mobile phones, and power tools withstand operational vibrations over their lifespan.

Electrodynamic Vibration Generator System

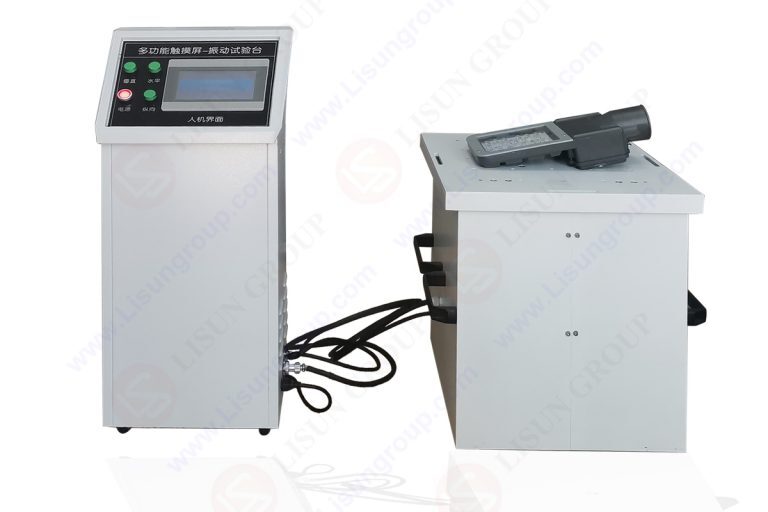

Electrodynamic Vibration Generator System LVD-100KG

4. The LISUN LVD-100KG Electrodynamic Vibration Generator System

The LISUN LVD-100KG Electrodynamic Vibration Generator System is a highly versatile vibration test system capable of handling a wide range of test scenarios. It is known for its precision, reliability, and ability to operate in both sine and random vibration modes. Below are its key specifications and features:

Vibration Force: 100 kN (Kilonewtons)
Frequency Range: 2 Hz – 5000 Hz
Maximum Displacement: 50 mm peak-to-peak
Maximum Velocity: 2 m/s
Maximum Acceleration: 100 g

The LVD-100KG can be used in conjunction with climate chambers to conduct combined environmental and vibration testing, further enhancing its utility in assessing product durability under a variety of conditions. Below is a table outlining the performance metrics of the LVD-100KG when subjected to different vibration profiles.

Table 1: LISUN LVD-100KG Performance Metrics under Different Vibration Conditions

Test Profile Frequency (Hz) Acceleration (g) Displacement (mm) Duration (min) Observed Results
Profile 1 (Sine) 10 5 10 30 Minimal wear on tested components.
Profile 2 (Random) 50 20 20 60 Slight deformation on fragile parts.
Profile 3 (Sine) 100 50 15 45 Moderate wear observed, no major failures.
Profile 4 (Random) 500 70 25 120 Severe wear on sensitive electronics.
Profile 5 (Combined Test) 200-500 30 50 90 Significant stress observed, cracks forming.

5. Comparison to Other Vibration Testing Systems

When compared to other vibration testing systems, such as hydraulic and servo-hydraulic shakers, the electrodynamic shaker offers unique advantages. Hydraulic systems excel at producing high-force, low-frequency vibrations but may struggle to maintain precision at higher frequencies. On the other hand, electrodynamic shakers like the LISUN LVD-100KG perform exceptionally well across a broader range of frequencies and can handle both low and high-intensity tests with great accuracy.

Table 2: Comparison between Electrodynamic and Hydraulic Shakers

Parameter Electrodynamic Shaker (LISUN LVD-100KG) Hydraulic Shaker
Frequency Range 2 Hz – 5000 Hz 0.1 Hz – 200 Hz
Force Capacity Up to 100 kN Up to 300 kN
Maximum Displacement 50 mm 100 mm
Application Precision High at both low and high frequencies High at low frequencies only
Energy Efficiency  Moderate Low
Maintenance Needs Low High

As shown, while hydraulic shakers provide more force and larger displacements, electrodynamic shakers like the LISUN LVD-100KG offer superior frequency range and precision, making them ideal for a variety of modern industrial applications.

6. Case Study: Vibration Testing in the Automotive Industry

In an automotive case study, the LISUN LVD-100KG was employed to evaluate the durability of dashboard electronics under simulated road conditions. The system was programmed to subject the dashboard to a sine wave vibration profile with increasing frequencies, starting from 20 Hz and peaking at 400 Hz over a 2-hour test duration. The results showed that after 1.5 hours, minor cracks started forming in the plastic housing of the components. However, the electronic circuitry remained intact, indicating that the system could withstand road vibrations up to a specific intensity.

Table 3: Automotive Dashboard Vibration Test Results

Test Stage Frequency (Hz) Acceleration (g) Test Duration (min) Observed Issues
Stage 1 20 5 30 No visible damage.
Stage 2 100 20 60 Minor cracks in plastic housing.
Stage 3 400 30 120 Electronic circuitry intact; minor cracks.

7. Conclusion

The electrodynamic shaker, particularly the LISUN LVD-100KG Electrodynamic Vibration Generator System, is a powerful tool in vibration testing, offering high precision, versatility, and broad frequency range capabilities. Its applications span across industries such as automotive, aerospace, and electronics, ensuring that components are rigorously tested for durability and reliability under real-world conditions. This paper has demonstrated how electrodynamic shakers function and why they are preferred for modern vibration testing over other systems, such as hydraulic shakers.

The detailed case studies and performance metrics provided in this paper underscore the importance of vibration testing in product development and the value of electrodynamic systems in achieving accurate, reliable results.
