RF Conducted Immunity Test System

Product No: RFCI61000-6

Leave a Message

=
  • Description
  • Video
  • Download

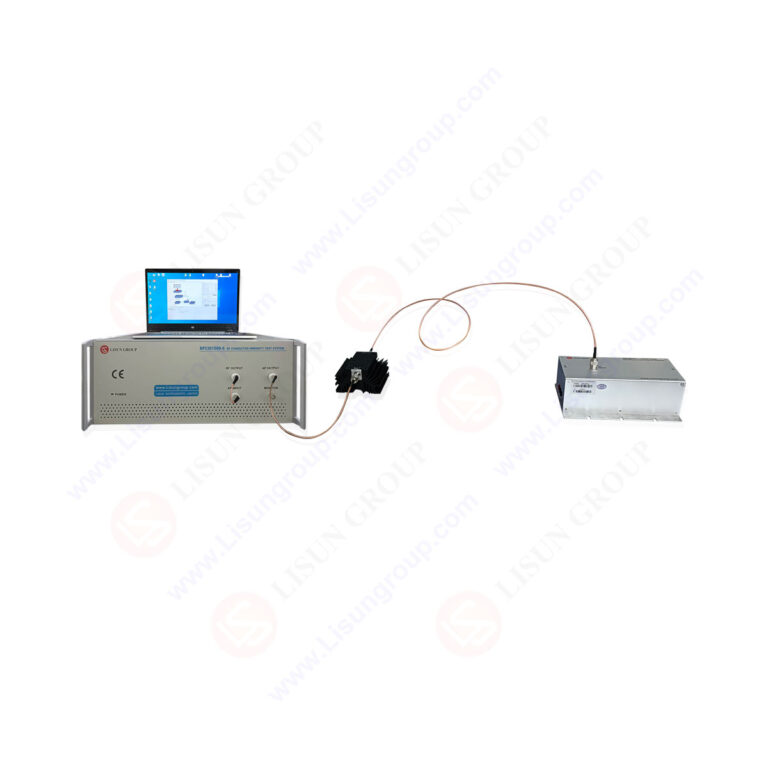

  • RFCI61000-6 Conducted Immunity Test System includes a built-in signal source, a power amplifier and power meter module, a variety of coupling decoupled network (CDN), electromagnetic clamp and current injection clamp developed by external attenuator by LISUN. It is widely used in medical, power, industrial control, new energy charging piles, communication piles and ect for industries.

    Standard:
    IEC61000-4-6/EN61000-4-6 (GB/T17626.6)”Electromagnetic compatibility(EMC)- Part 4-6:Testing and measurement techniques- Immunity to conducted disturbances, induced by radio- frequency fields”
    ISO11452-4 “Road vehicles — Component test methods for electrical disturbances from narrowband radiated electromagnetic energy- Part 4:Harness excitation methods”

    Host Configuration

    Output Voltage

    LISUN Model:RFCI61000-6-35W(Output power: 35W)

    1 ~ 17Vrms(CDN method)

    1 ~ 11Vrms(Electromagnetic clamping method)

    LISUN Model:RFCI61000-6-85W(Output power: 85W)

    1 ~ 30Vrms(CDN method)

    1 ~ 18Vrms(Electromagnetic clamping method)

    1 ~ 10Vrms(Current injection clamping method)

    Output impendance

    50Ω

    Voltage resident rate

    ≤ 1.2

    Output Frequence

    150kHz ~ 230MHz

    Harmonic

    < 15dBc

    Signal source (built-in)

    Frequency

    9k ~ 1GHz

    Output level

    -60 ~ 10dBm

    Non -row signal

    Continuous wave

    Modulation

    A amplitude modulation modulation frequency: 1Hz ~ 10kHz modulation depth: 1 ~ 99%

    Pulse modulation and modulation frequency: 1Hz ~ 1kHz Lights ratio: 1 to 100%

    Power amplifier (built-in)

    Output Frequency

    150kHz ~ 230MHz

    Max. output power

    LISUN Model RFCI61000-6-35W:+44dBm/35W

    LISUN Model RFCI61000-6-85W:+49dBm/85W

    Harmonic

    < 15dBc

    Power meter (built-in)

    Input Frequency

    9kHz ~ 3GHz

    Input Power

    -40dBm ~ +30dBm

    Attenuator (built-in)

    Frequency Range:

    DC~1GHz

    Max. output power:

    100W

    Attenuation value:

    6dB

    Operation (please refer to GB/T17626.6 or IEC61000-4-6: 2014 Terms of Article 7.4.2 Figure 20 to select injection method: CDN method, electromagnetic clamp and current injection clamp method)):
    1. The host RFCI61000-6-35W/RFCI61000-6-85W can test the power cables or communications lines with the CDN Coupling Decoupling Network (Optional) of the following models of LISUN:

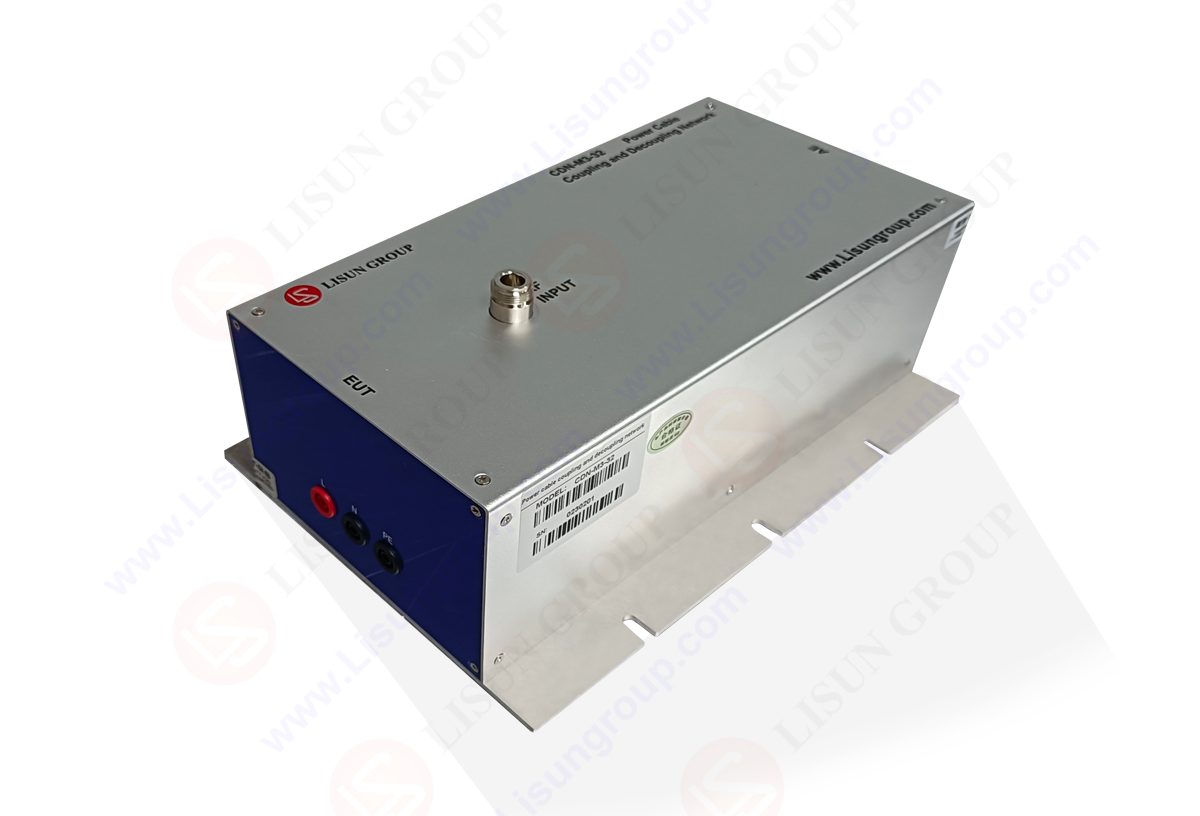

    CDN for RF Conducted Immunity Test

    Figure 20 – Rules for selecting the injection method

    Coupling decoupling network type

    LISUN Model

    Test Ports

    Voltage / Current

    Power Cables

    CDN-M1-16

    Single -phase wire power cable

    220V/16A

    CDN-M1-32

    Single -phase wire power cable

    220V/32A

    CDN-M2-16

    Single -phase two-core power cable

    220V/16A

    CDN-M2-32

    Single -phase two-core power cable

    220V/32A

    CDN-M3-16

    Single -phase three-core power cable

    220V/16A

    CDN-M3-32

    Single -phase three-core power cable

    220V/32A

    CDN-M3-32-3

    Three -phase and three-core power cable (3L)

    380V/32A

    CDN-M4-32

    Three -phase and four-core power cable (3L/1N)

    380V/32A

    CDN-M4-32-PE

    Three -phase and four-core power cable (3L/1PE)

    380V/32A

    CDN-M5-32

    Three -phase and five-core power cable (3L/1N/1PE)

    380V/32A

    Non-shielding symmetrical lines

    CDN-T2

    2 line

    100V/5A

    CDN-T4

    4 line

    100V/5A

    CDN-T8

    8 line

    100V/5A

    Non -shielding non -symmetrical lines

    CDN-AF2

    2 line

    100V/5A

    CDN-AF4

    4 line

    100V/5A

    CDN-AF8

    8 line

    100V/5A

    Shield lines

    CDN-S8

    2 line、4 line、8 line

    100V/5A

    RF conduction antipitrimal coupling degraded network calibration bracket

    CDN-CS100

    Coupling decoupling network calibration bracket, which contains 150Ω-50Ω adapter resistance and If you equipped with 1 set of or more sets of CDN, you need to be equipped with at least 1 set of calibration bracket (various CDNs can equipped with it)

    2. The host RFCI61000-6-35W/RFCI61000-6-85W can work with LISUN AB-EM Electromagnetic Clamp (Optional) to comply with IEC 61000-4-6. It is the immunity to conducted disturbances induced by the detection of radio frequency fields.

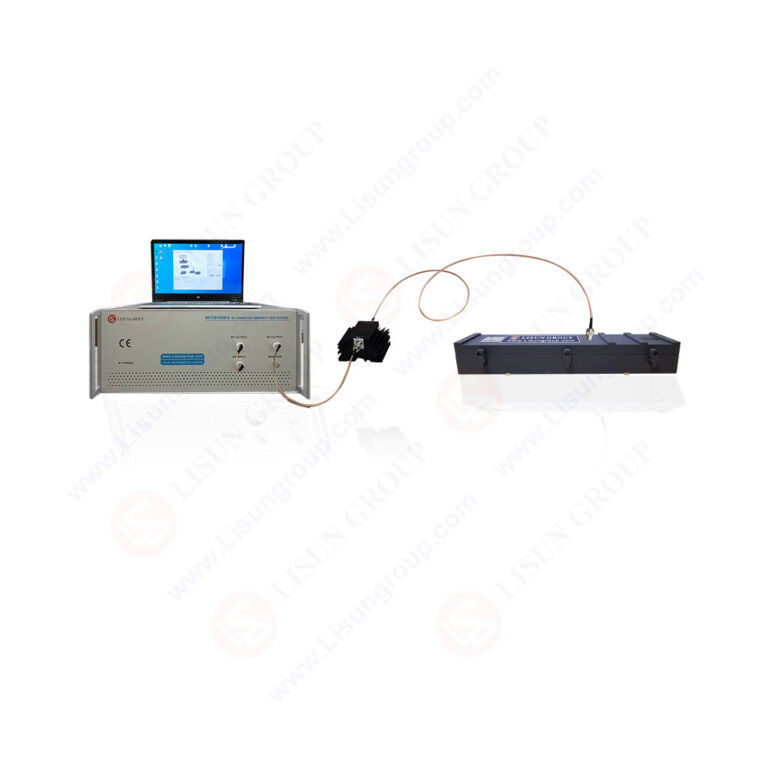

    Electromagnetic Clamp for RF Conducted Immunity Test

    • The maximum injection power is 100W (5 minutes);
    • The injection frequency is 150kHz~400MHz;
    • Coupling and decoupling direction coefficient greater than 10dB>10MHz

    3. The host RFCI61000-6-35W/RFCI61000-6-85W can test any signal lines with LISUN AB-100W (Optional) current injection clamp:

    Current Injection Clamp for RF Conducted Immunity Test

    • Support any specification signal line test: unshielded balanced line (T2, T4, T8), unshielded unbalanced line (AF2, AF4, AF8), shielded cable (S1, S1/75, S2, S4, S9, S25), Communication signal line (RJ11, RJ11S, RJ45, RJ45S, USB-C, USB-P) and other signal lines of any specifications
    • Support maximum wire diameter: 40mm
    • Maximum output power: 100W
    • Frequency range: 100KHz~230MHz
    • Insertion loss: <7dB
    • Standard current clamp calibration parts

    Tags: ,

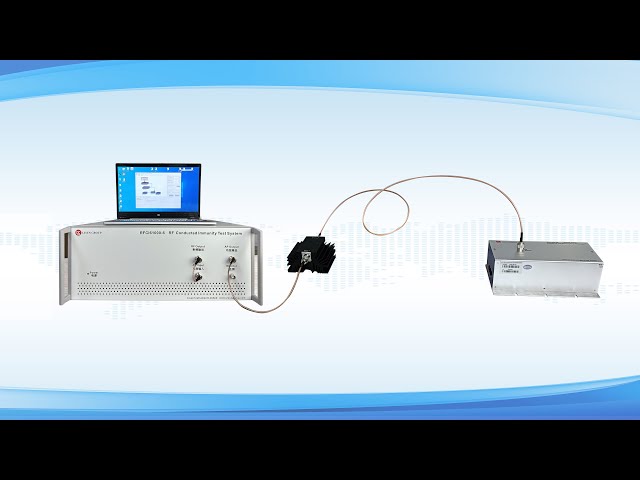

  • RF Conducted Immunity Test System - Introduction Video
