Magnetic Field Generator

Product No: PFM61000-8A

Leave a Message

=
  • Description
  • Download

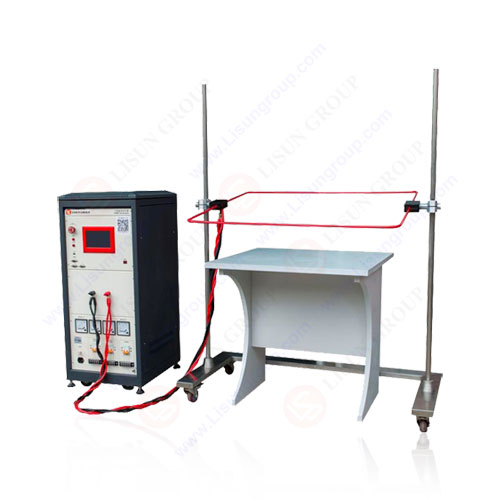

  • The PFM61000-8 Series Magnetic Field Generator is a high-stability device developed by LISUN specifically for power frequency magnetic field immunity testing of electronic products. Its core positioning is to meet the demand for “power frequency magnetic field immunity evaluation” of electronic and electrical products in different scenarios. It can accurately replicate 50/60Hz power frequency magnetic field environments in scenarios such as residences, commercial premises, industrial plants, power plants, and medium-to-high voltage substations, providing standardized testing conditions for detecting the anti-interference capability of equipment under magnetic field interference.

    Standard:

    Standard No. Standard Number
    IEC 61000-4-8:2020 Electromagnetic compatibility (EMC) – Part 4-8: Testing and measurement techniques – Power frequency magnetic field immunity test
    EN 61000-4-8:2021 Electromagnetic compatibility (EMC) – Part 4-8: Testing and measurement techniques – Power frequency magnetic field immunity test
    ISO 11452-8:2015 Road vehicles – Component test methods for electrical disturbances from narrowband radiated electromagnetic energy – Part 8: Magnetic field immunity
    MIL-STD-461G-2015 Department of Defense Test Method Standard for Electrical and Electronic Equipment – Magnetic Field, Power Frequency (50/60 Hz) Immunity
    GB/T 17626.8-2006 电磁兼容性(EMC) 第4-8部分:试验和测量技术 工频磁场抗扰度试验
    GJB 151B-2013 军用设备和分系统电磁发射和敏感度要求

    Specification:

    LISUN Model PFM61000-8A PFM61000-8B
    Magnetic Field Intensity long-duration:1~100A/m(adjustable)
    short-duration:100~1000A/m(adjustable)
    long-duration:1~400A/m(adjustable)
    short-duration:400~1000A/m(adjustable)
    Magnetic Field Duration long-duration:1s~999min
    short-duration:1s~5s
    Total Harmonic Distortion of Output Current (THD-i) <8%
    Magnetic Field Direction It can be adjusted to horizontal, vertical, or rotated arbitrarily at 360 degrees, and can also be moved up and down, supporting both proximity method and immersion method testing.
    Magnetic Field Frequency 50Hz or 60Hz

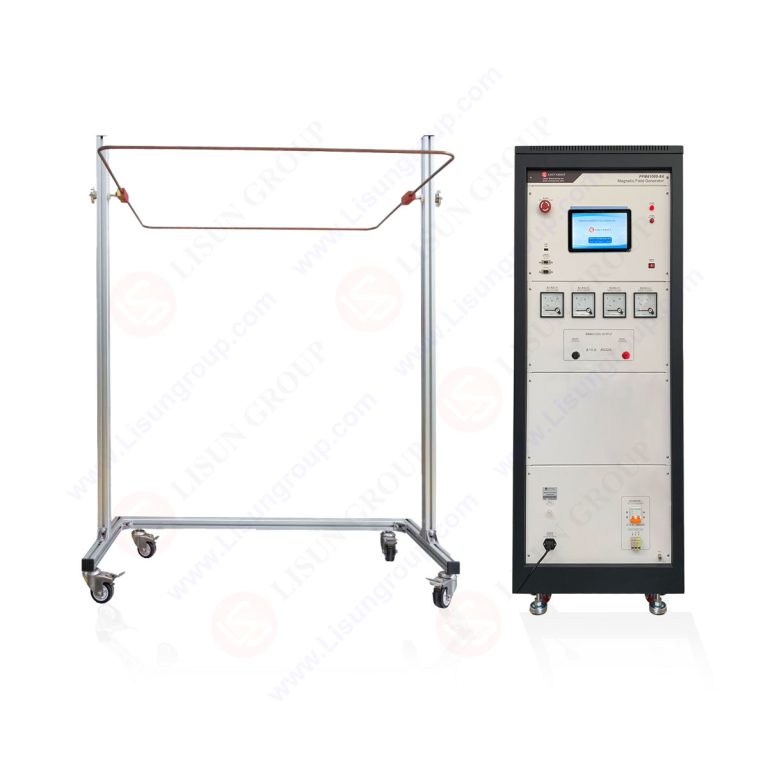

    Magnetic Field Antenna 1*1m single-turn 1*1m multi-turn

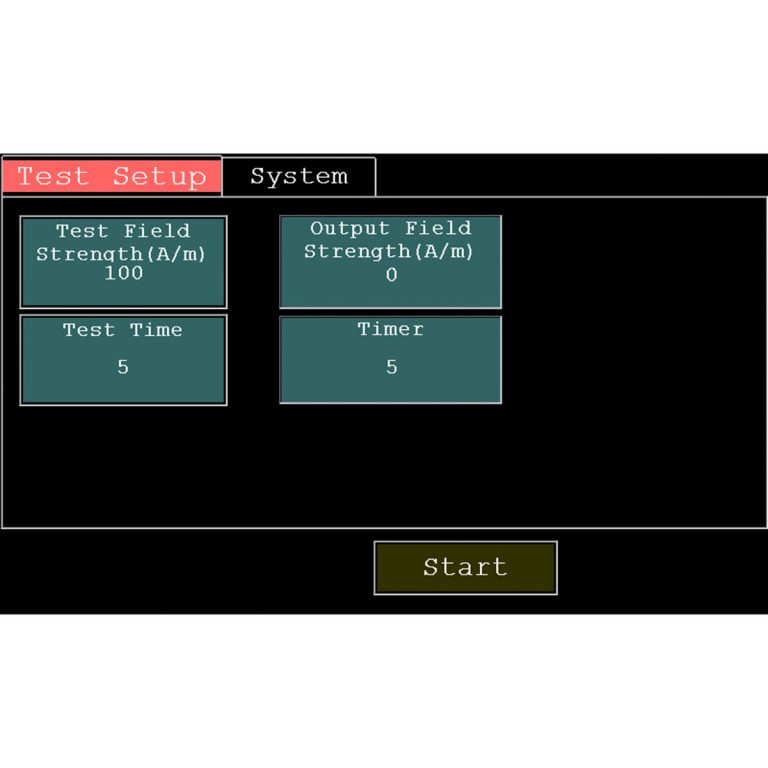

    Control System A 10-inch extra-large Android touch screen with both Chinese and English

    Typical Applications:
    • Information Technology (IT) Equipment Testing: In accordance with the standards GB/T 17626.8-2006 and IEC 61000-4-8:2020, it tests the immunity performance of equipment such as computers, servers, and routers under power frequency magnetic fields to ensure the stability of data transmission.
    • Medical Electronic Equipment Verification: For precision medical devices like electrocardiographs (ECGs) and monitors, it simulates the power frequency magnetic field environment in hospitals to evaluate the measurement accuracy of the equipment under magnetic field interference, meeting the EMC (Electromagnetic Compatibility) certification requirements for medical devices.
    • Automotive Electronics Immunity Testing: Based on the standard ISO 11452-8:2015, it tests the immunity of automotive components such as on-board ECUs (Electronic Control Units), navigation systems, and sensors to power frequency magnetic fields, preventing functional abnormalities caused by magnetic field interference during vehicle operation.
    • Power Equipment Testing: During the R&D of equipment used in the vicinity of substations and power plants (e.g., switchgear, metering instruments), it verifies the operational reliability of such equipment under strong power frequency magnetic field environments to ensure the stable operation of power systems.
    • Military Equipment Testing: In compliance with the standards GJB 151B-2013 and MIL-STD-461G, it tests the power frequency magnetic field immunity of military communication equipment and radar components to ensure operational effectiveness in complex electromagnetic environments.
    • Laboratory Certification Testing: It provides third-party testing institutions with power frequency magnetic field testing capabilities that comply with international standards, supporting the immunity testing 环节 of certification projects such as CE, FCC, and CCC for electronic and electrical products.
