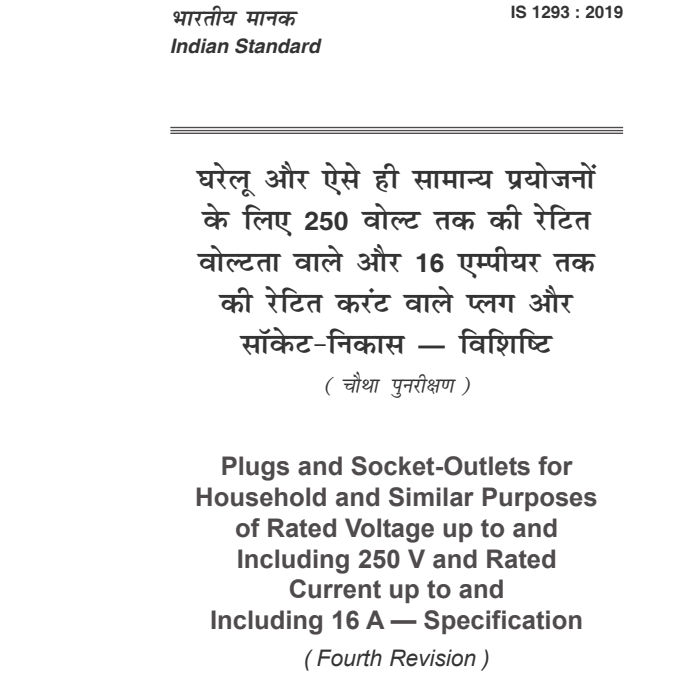

IS 1293:2019 Plugs and Socket-Outlets for Household and Similar Purposes of Rated Voltage up to and Including 250 V and Rated Current up to and Including 16 A – Specification

IS 1293:2019 is India’s national standard (by BIS) for household and similar-purpose plugs and socket-outlets with rated voltage ≤250V and rated current ≤16A. Its primary aim is to set uniform safety and performance criteria for these electrical accessories, ensuring they operate reliably and mitigate risks like electric shock or fire in residential, commercial, and light industrial settings.

The standard specifies critical mandates: dimensional accuracy (to ensure compatibility), electrical safety (insulation resistance, dielectric strength, anti-shock protection), mechanical durability (wear resistance for repeated use), flame-retardant materials for housings, and clear marking (ratings, BIS certification). Compliance is mandatory for market access in India, ensuring products meet national quality norms and end-users use safe, certified accessories.

LISUN supplies the fully test solutions for the following IS 1293:2019, please see the below excel table:

IS 1293:2019 Clause and Subject	LISUN MODEL
10.1 Test probe 11 with 75N force	SMT-1175
Table 5 Creepage distance	CK-1
10.5 Figure9 and Figure10	SMT-20N&SMT-1N
11 PROVISIONS FOR EARTHING	WB2678A
12.22 Probe with Force of 30N	SMT-02T30
14.2 Figure 15 Device for Testing Non-solid Pins	GNGPL-57C20
16 RESISTANCE TO AGEING，TO HARMFUL INGRESS OF WATER AND TO HUMIDITY	GDJS-015B
	JL-X
17 INSULATION RESISTANCE AND ELECTRIC STRENGTH	WB2681A
19 TEMPERATURE RISE	WS-1

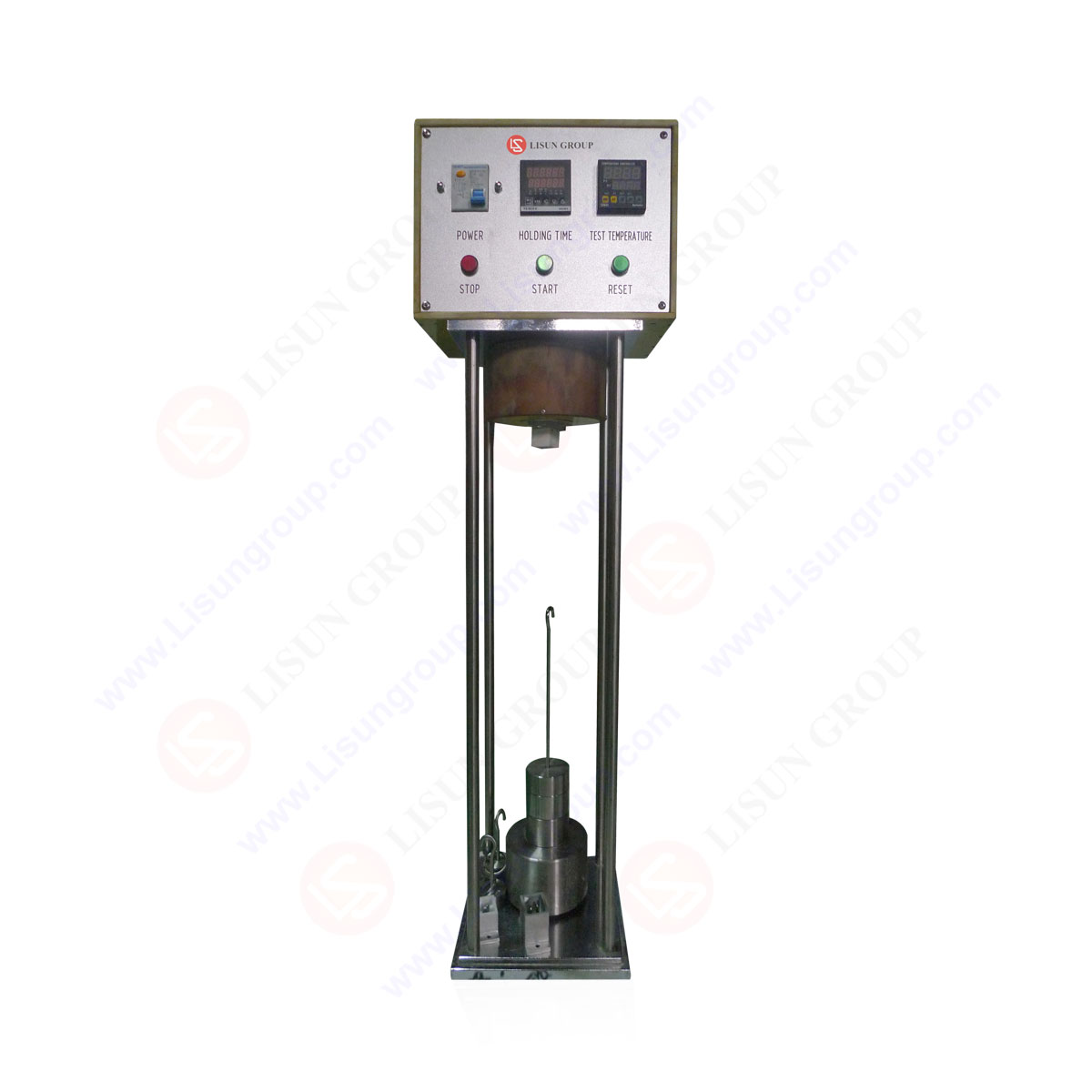

22.1 Verification of the Maximum Withdrawal Force(Figure 21)	LS-B46
23.2 Figure 23 APPARATUS FOR TESTING CORD RETENTION	LS-B07
23.4 flexing test Figure 24	SW-6
24.1 pendulum hammer test	IK07-10
24.2 TEST PROBE B	SMT-PBC
24.4 APPARATUS FOR IMPACT TEST AT LOW TEMPERATURE(Figure 27)	DWC-1
30.4 Impact Test at Low Temperature
24.7 APPARATUS FOR ABRASION TEST ON INSULATING SLEEVES OF PLUG PINS(Figure 28)	LS-B10
25 RESISTANCE TO HEAT	GW-500
25.4 APPARATUS FOR COMPRESSION TEST FOR THE VERIFICATION OF RESISTANCE TO HEAT(Figure 37)	LS-TCT-1
27 CREEPAGE DISTANCES	CK-1
Figure 38 Ball Pressure Test	ZBP-T
28.1.1 Glow-Wire Test	ZRS-3H
28.2 Resistance to Tracking	TTC-1
29 RESISTANCE TO RUSTING	YWX/Q-010
30.1 Pressure Test at High Temperature	GNGPL-3610-2PA

Tags：CK-1 , DWC-1 , GDJS-015B , GNGPL-3610-2PA , GNGPL-57C20 , IK07-10 , JL-X , LS-B07 , LS-B10 , LS-B46 , LS-TCT-1 , SMT-02T30 , SMT-1175 , SMT-1N , SMT-20N , SMT-PBC , SW-6 , TTC-1 , WB2678A , WB2681A , WS-1 , YWX/Q-010 , ZBP-T , ZRS-3H
