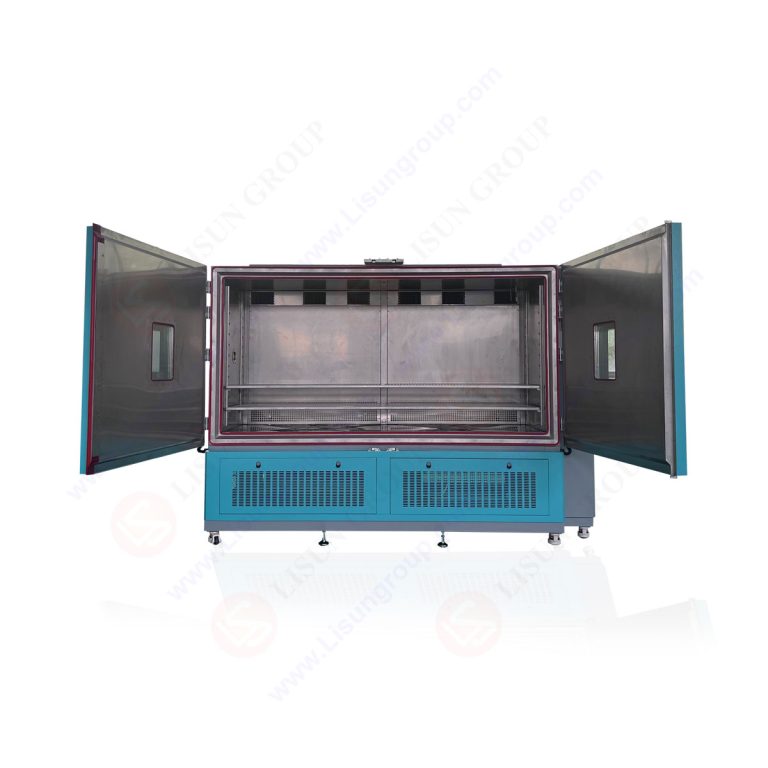

Temperature Humidity Chamber | Thermal Chamber

Product No: GDJS-015B

Leave a Message

=
  • Description
  • Video
  • Download
  • Temperature Humidity Chamber | Thermal Chamber | Climate Chamber simulate different climatic conditions, such as heat-endurance, cold endurance, dryness-endurance and humidity-endurance which defines the performance of material.  By testing the product under different climatic conditions to see whether its performance can meet the intended requirements. It is widely used to test the CFL/LED, electricity products, automative cars, home appications and mobiles. This series of aging test chamber is suitable for the reliability test of industrial products. It has the characteristics of temperature control precision and wide control range.

    Standard:
    IEC60068-2-1 ” Environmental testing – Part 2-1: Tests – Test A: Cold”
    IEC60068-2-2 “Environmental testing – Part 2-2: Tests – Test B: Dry heat”
    IEC60068-2-78 “Environmental testing – Part 2-78: Tests – Test Cab: Damp heat, steady state”
    IEC60598-1 “Luminaires – Part 1: General requirements and tests”
    IES LM-80-08 “Approved Method: Measuring Lumen Maintenance of LED Light “
    GB/T2423.17 “Environmental testing for electric and electronic products – Part 2: Test method – Test Ka: Salt mist”
    GB/T5170.2 “Inspection methods for environmental testing equipment for electric and electronic products — Temperature testing equipment”
    GB/T5170.5 “Inspection methods for environmental testing equipments for electric and electronic products―Part 5:Damp heat testing equipments”

    What is a Climate Chamber?

    Climate chamber is used to simulate a temperature environmental condistions. It may also be called environmental chambers or thermal chamber or temperature chamber. You can click the below videos to learn the details and also how to operate it.

    video

    Specifications:
    •The temperature humidity test chamber is made of SUS304 Steel. The thermal insulation layer is made of polyurethane hard foam ultra-fine glass fiber. The heat-insulated doorframe uses high temperature aging silicone rubber sealing strip.
    •The temperature controller of the climate chamber includes Korean TEMI display in English/Chinese and German Siemens PLC. It can communicate with PC via RS-232. The temperature accuracy is 0.1℃ and humidity accuracy is 0.1%R.H
    •The temperature sensor is platinum PT100Ω/MV
    •The independant heating system uses nickel-chrome electric heater
    •The refrigerating system is fully enclosed air-cooled single-stage compression refrigeration mode, and the compressor is from France TECUMSEH brand which can allow you get after sales support from many other countries
    •The circulation system uses temperature resistant and low noise air-conditioned motor and multi-blade centrifugal wind wheel
    •The safety protection system includes electric leakage, short circuit, over temperature, motor overheating, compressor pressure, overload, over-current protection
    •Working Voltage: AC380V±10% 3phases and frequency 50Hz/60Hz
    •Working Environmental: Temperature is 5℃~+30℃  Humidity ≤85%R.H

    High & Low Temperature Humidity Chamber with Programmable Function (GDJS Series)
    LISUN Model GDJS-100* GDJS-225* GDJS-500* GDJS-010* GDJS-015* GDJS-020*
    Workroom Dimensions 41*55*45 50*60*75 70*80*90 100*100*100 100*100*150 100*100*200
    External Dimensions 105*105*156 105*102*200 132*132*217 167*152*231 245*160*231 160*254*214
    Working Power 5.5kW 7.0kW 13.5kW 15.0kW 16.5kW 26.5kW
    Temperature Range A: -20℃~150℃      B: -40℃~150℃     C: -60℃~150℃    D: -70℃~150℃
    Fluctuation/Evenness ±0.5℃/±2℃
    Temperature Rise Speed 1.0℃~3.0℃/min
    Temperature Fall Speed 0.7℃~1.0℃/min
    Humidity Range 20%~98% R.H
    Humidity Deviation -2%~-3% R.H

    High and Low Temperature Chamber with Programmable Function (GDJW Series)
    LISUN Model GDJW-100* GDJW-225* GDJW-500* GDJW-010* GDJW-015* GDJW-020*
    Workroom Dimensions (cm) 41*55*45 50*60*75 70*80*90 100*100*100 100*100*150 100*100*200
    Temperature Range  A: -20℃~150℃      B: -40℃~150℃     C: -60℃~150℃    D: -70℃~150℃
    Fluctuation/Evenness ±0.5℃/±2℃
    Temperature Rise Speed 1.0℃~3.0℃/min
    Temperature Fall Speed 0.7℃~1.0℃/min

    High Temperature Chamber/Oven Chamber/Aging Oven Testing (GW Series)
    LISUN Model GW-225 GW-500 GW-010 GW-015 GW-020
    Workroom Dimensions (cm) 50*60*75 70*80*90 100*100*100 100*100*150 100*100*200
    Temperature Range Enviromental Temperature ~250℃ (Option to 300℃)
    Fluctuation/Evenness ±0.5℃/±2℃
    Temperature Rise Speed 1.0℃~3.0℃/min

    The * in GDJS-225*/GDJW-225* means the temperature range A: -20℃-150℃, B: -40℃-150℃,  C: -60℃-150℃,D: -70℃-150℃

    How does an environmental chamber work?

    The temperature and humidity environmental chamber can simulate a variety of temperature and humidity natural environments, and is suitable for testing electronic devices, household appliances, food, trolleys, vulcanized rubber, plastic rubber, metal materials and other commodities. The whole process of humidification of the temperature and humidity environmental chamber is to increase the working pressure of water vapor. The more initial way is to spray water on the test box wall to control the saturation pressure of the water surface according to the operating temperature.

    What’s Temperature Chamber quality difference between LISUN and other brands in China Market?

    1. LISUN low temperature such as -60℃ warranty under a 200W lamps with heating but other brands under empty conditions.
    2. LISUN adopts with Finland brand electronic humidity sensor which no need to maintenence. But our competitor used dry ball device which is easy dry to cause problems after used 3-6months.
    3. LISUN equipped a water purification device, customer can use a water pipe connect it to provide water supply directly, our competitor but need to add the water by hand.
    4. LISUN temperature chamber key electrical connector parts adopted with famous brand AC contactor and solid state relays from Schneider and Omron brands. It is easy for you to find in your local market if they were failed, but our competitors used them with almost Chinese local brands.

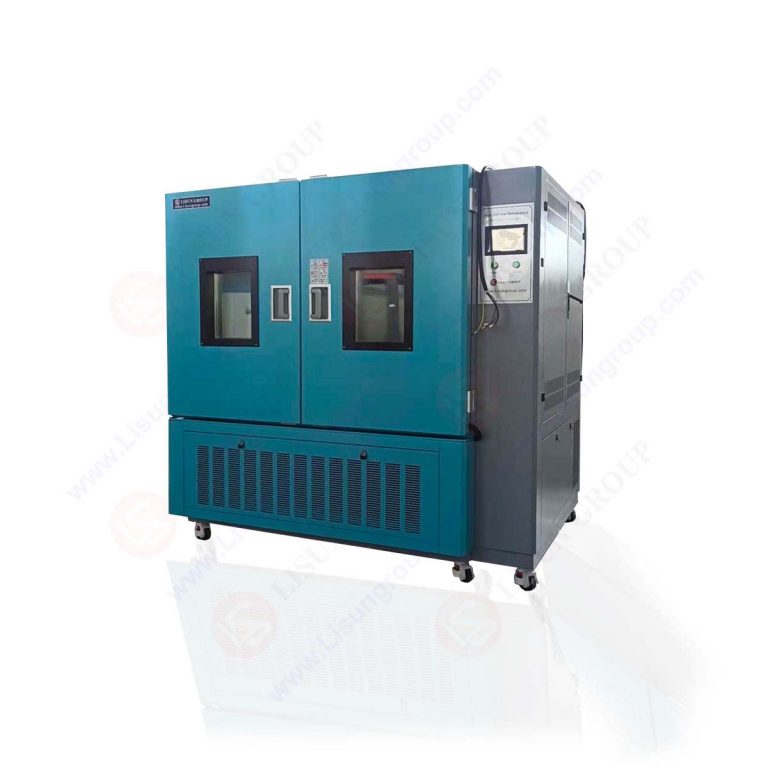

    High and Low Temperature Humidity Chamber GDJS AL5

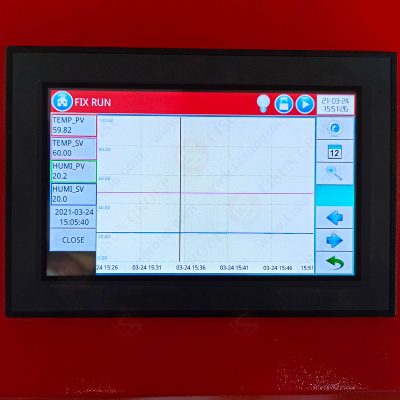

    Temperature Humidity Chamber Test Curve

    Appendix: GDJS Series Temperature And Humidity Corresponding Chart.
    Note: This is a regular model. If you have special requirements, please contact us for customization.)

    GDJS Series Temperature And Humidity Corresponding Chart

    GDJS Series Temperature And Humidity Corresponding Chart

    LISUN GDJS-015B Temperature Humidity Chamber – After-sales Frequently Asked Questions (FAQ)
    LISUN GDJS-015B Temperature Humidity Chamber were in the market for more than 10 years, LISUN engineers service team already summary the most of the After Sales Questions and Answers in the above link. Please read it carefuly, you can solve the most of the problems by yourself if you have some questions while using the instruments. LISUN will be continue to update this pages and more FAQ can be found in this topic link.
