LISUN’s Motor-Operated Tool | Power Tool Testing solutions strictly comply with a range of core international standards, providing full support for safety and electromagnetic compatibility (EMC) testing of hand-held, portable power tools, and garden machinery. Among these, IEC 60745-1:2006 focuses on general safety requirements for hand-held power tools; IEC 61029-1:1990 addresses safety design and functional specifications for portable power tools; and IEC 62841-1:2014 extends to comprehensive safety requirements for hand-held, portable tools, and garden machinery. In the field of EMC, CISPR 14-1:2016 (EN 55014:2021) limits the electromagnetic radiation of equipment to avoid interference with other devices, while CISPR 14-2:2015 specifies the immunity standards of equipment under external electromagnetic interference to ensure its normal operation.
Based on the above standards, LISUN has built a complete system of testing equipment, covering key test items specified in each standard clause. From safety tests such as waterproof rating (IP code), mechanical impact, temperature rise, moisture resistance, high-voltage testing, durability, switch testing, creepage distance and clearance measurement, to ball pressure test, glow wire test, needle flame and tracking test, rust resistance test, as well as electromagnetic radiation and immunity tests (including electrostatic discharge, fast transient pulses, voltage surges, etc.), there are corresponding professional testing equipments, providing one-stop testing support for R&D design, production quality inspection, and compliance certification of power tools.
Motor-Operated Tool Test Solution
Standard:
IEC 60745-1:2006 Hand-held motor-operated electric tools – Safety – Part 1: General requirements
LISUN supplies the fully test solutions for the following IEC 60745-1:2006, please see the below excel table:
| IEC 60745-1:2006 Clause and Subject | LISUN MODEL |
| 8.1 IP number according to degree of protection against ingress of water | JL-X |
| 21.20 IP System | |

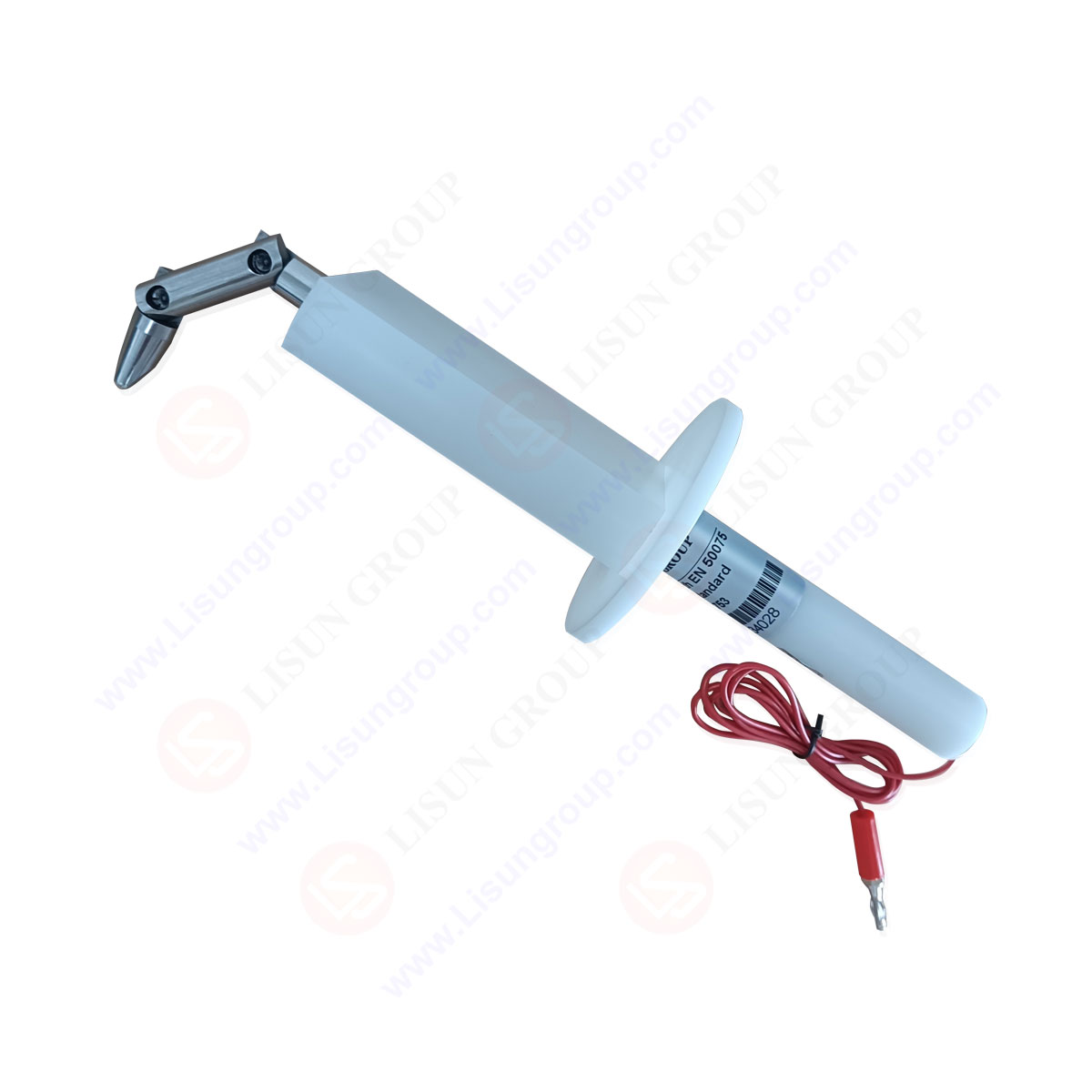

| 9.3 Test Figure 1 | SMT-PB |
| 9.4 Test Figure 2 | SMT-1213 |
| 12 Heating-Temperature Rise | WS-1 |
| 14 Moisture resistance | GDJS-015B |
| Annex I 17 Endurance test apparatus | |
| 15 HV-test facilities | SG61000-5 |
| 20.2 spring-operated impact test apparatus | IK01-06 |

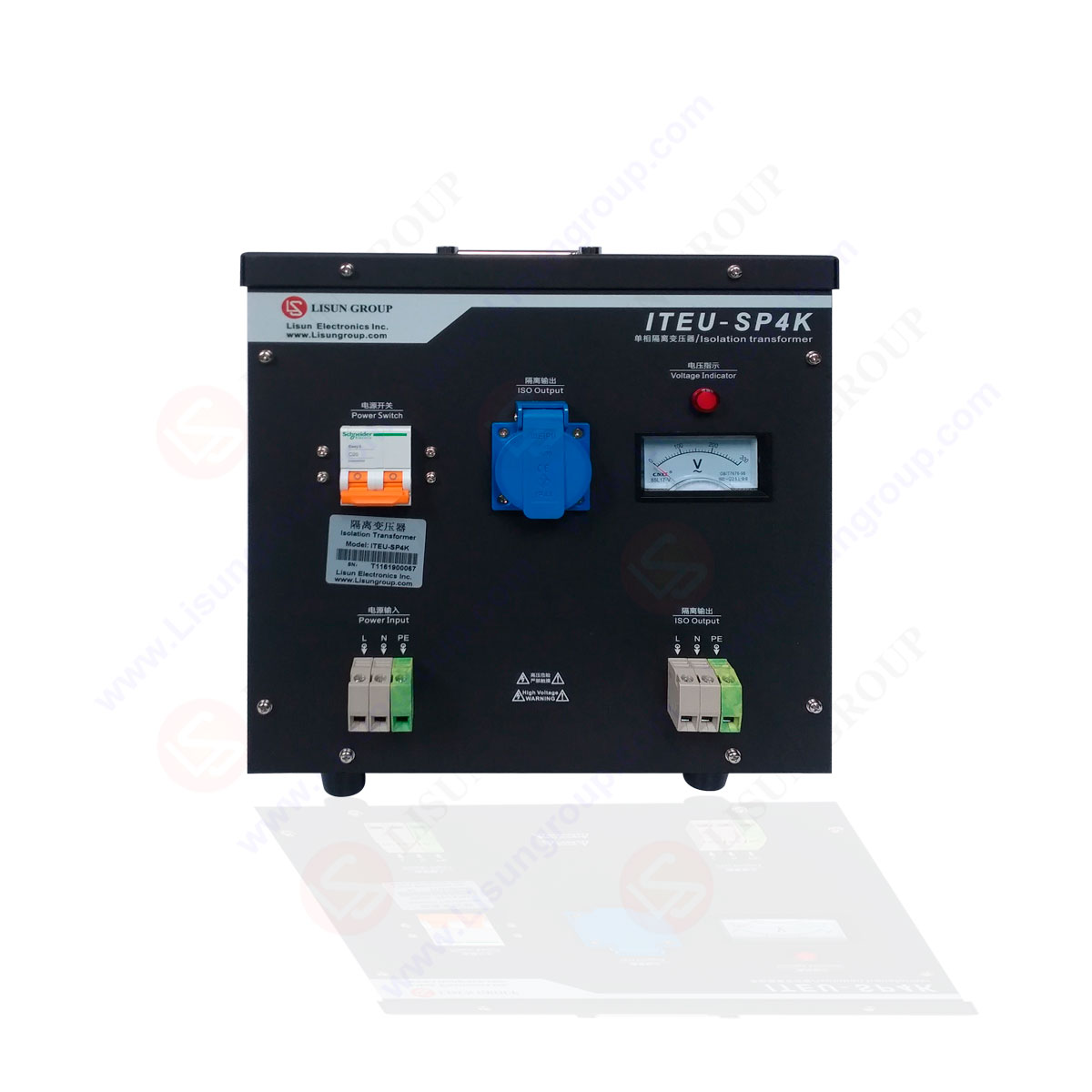

| 23.1.4 Isolation Transformer | ITEU-SP4K |

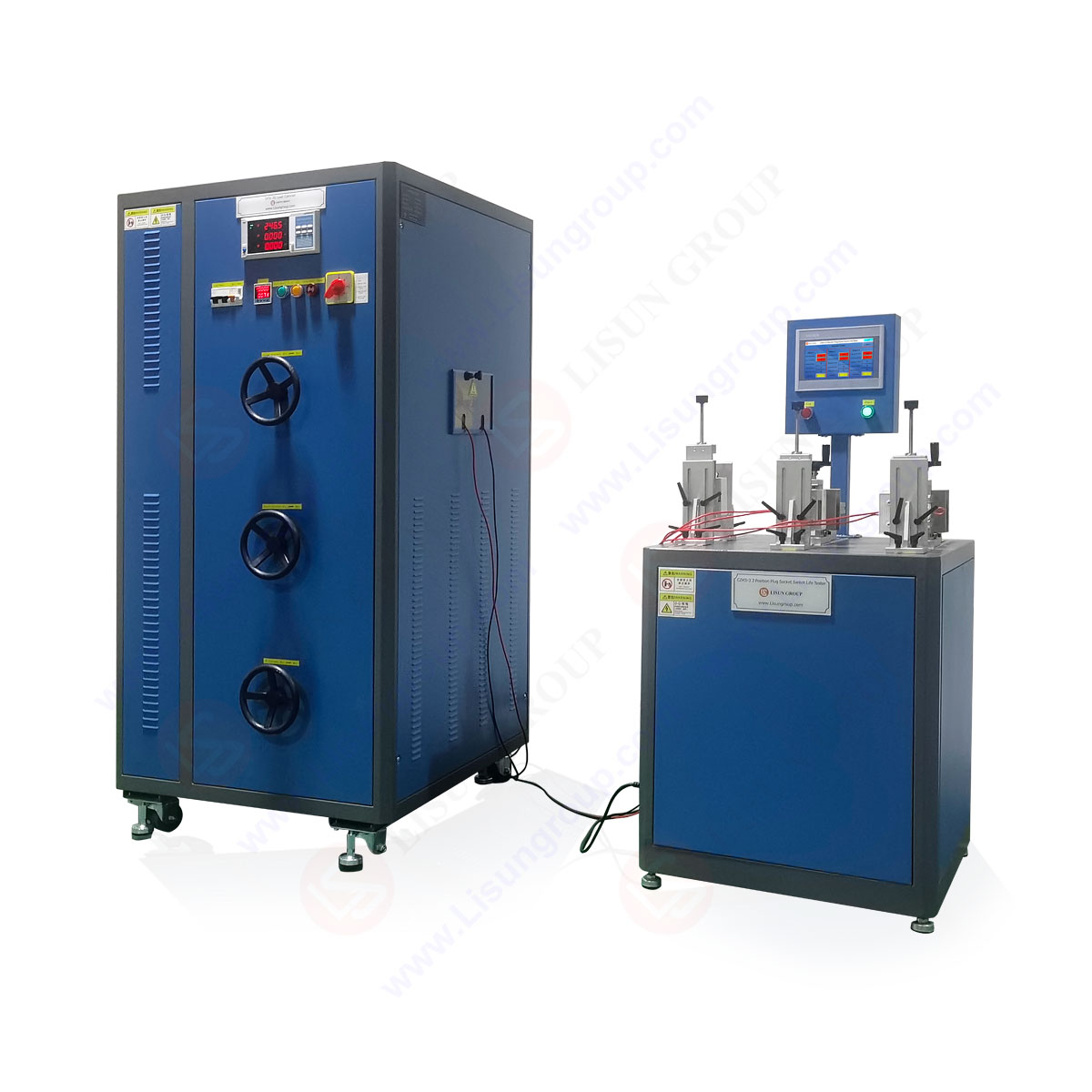

| 23.1.11 Switch tests of Clause 17 of IEC 61058-1. | CZKS-3 |
| 24.13 Flexing test apparatus | WDT-B42 |
| 28 Creepage distances, clearances and distances through insulation | CK-1 |
| 29.1 Ball pressure test | ZBP-T |
| 29.2 Glow wire test | ZRS-3H |
| 29.3 NeedLe Flame Test and tracking test | ZY-3&TTC-1 |
| 30 Resistance to rusting | YWX/Q-010 |
LISUN supplies the fully test solutions for the following IEC 61029-1:1990, please see the below excel table:
| IEC 61029-1:1990 Clause and Subject | LISUN MODEL |
| 8.1 Test Finger Figure 1 | SMT-335F7 |
| 8.1 Test Pin Figure 2 | SMT-1213 |
| 8.1 Test Finger of 50N Force | SMT-1150 |
| 11 Heating-Temperature Rise | GDJS-015B |
| 12 Leakage current | WB2675D |
| 14 Protection against ingress of foreign bodies and moisture resistance | JL-X&GDJS-015B |
| 15 Insulation resistance and electric strength | WB2681A |
| 16 Endurance | GDJS-015B |
| LVD-100KG | |
| 19 Impact hammer | IK01-06 |
| 20 Oxygen bomb | LS-B48 |
| 23 Flexing test apparatus | WDT-B42 |
| 27 Creepage distances | CK-1 |
| 28 Resistance to heat, fire and tracking | ZBP-T&GW-500 |
| ZRS-3H | |
| TTC-1 | |
| 29 Resistance to rusting | YWX/Q-010 |
LISUN supplies the fully test solutions for the following IEC 62841-1:2014, please see the below excel table:
| IEC 62841-1:2014 Clause and Subject | LISUN MODEL |

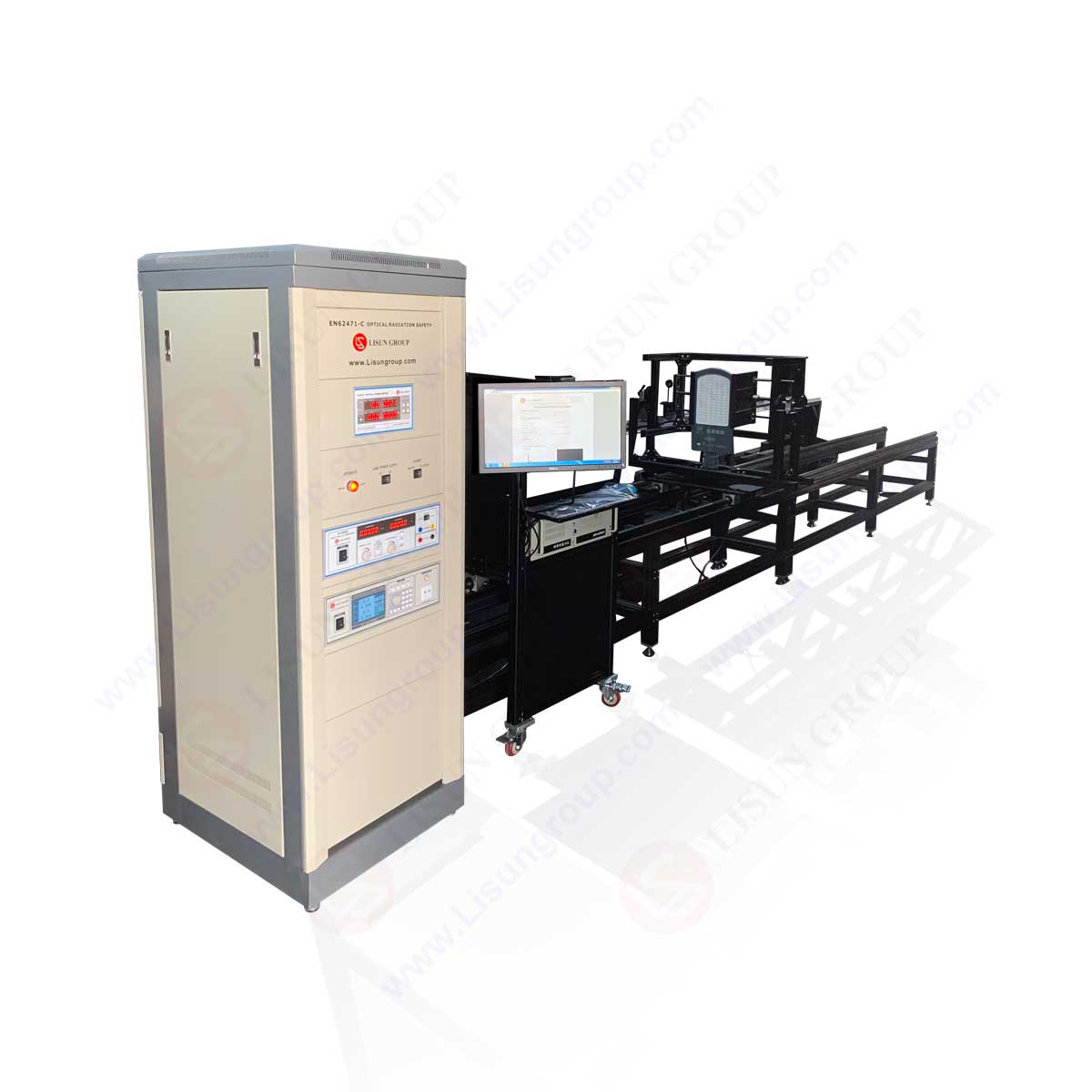

| 6 Radiation, toxicity and similar hazards | EN62471-C |
| 8.12 thermal and humidity conditions | GDJS-015B |
| 9.3 Test probe B of IEC 61032 | SMT-PB |
| 19.1 Test probe B according to IEC 61032 | |
| 9.4 Test probe 13 of IEC 61032 | SMT-1312 |
| 12.4 Temperature rises | WS-1 |
| 12.6 Heating Cabinet | GW-500 |
| 13.1 Ball Pressure apparatus of IEC 60695-10-2 | ZBP-T&GW-500 |
| 13.2 glow-wire test of IEC 60695-2-11 | ZRS-3H |
| 14.2.2 IPX1-7 apparatus in accordance with IEC 60529( | JL-X |
| 15 Resistance to rusting | YWX/Q-010 |
| 18.8.1 electrostatic discharges in accordance with IEC 610o0-4-2 | ESD61000-2 |
| 18.8.2 fast transient bursts in accordance with IEC 61ooo-4-4 | EFT61000-4 |
| 18.8.3 Voltage Surge in accodance with IEC 61000-4-5 | SG61000-5 |
| 18.8.4 injected currents in accordance with IEC 61000-4-6 | RFCI61000-6 |

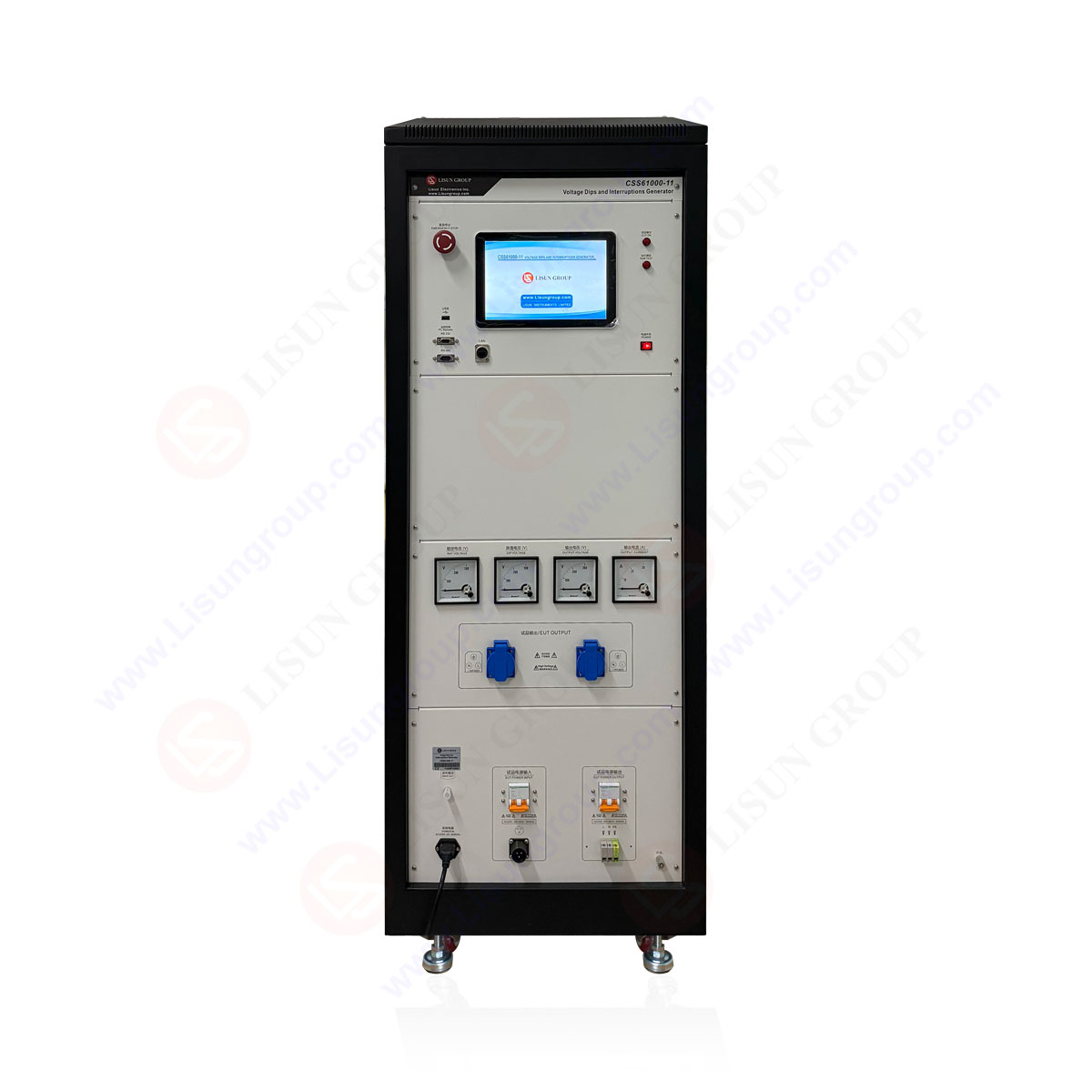

| 18.8.5 voltage dips and interruptions in accordance with IEC61000-4-11 | CSS61000-11 |
| 20.2 Spring operated test apparatus according to clause 5 of IEC 60068-2-75 | IK01-06 |
| 24.11 Flexing apparatus | WDT-B42 |
| 28 Creepage distances | CK-1 |
| Annex C Leakage current | WB2675D |
| Annex I.3 Vibration | LVD-100KG |
LISUN supplies the fully test solutions for the following CISPR 14-1:2016(EN 55014:2021), please see the below excel table:
| CISPR 14-1:2016(EN 55014:2021) Clause and Subject | LISUN MODEL |
| 4.3.2 Frequency range 9 kHz to 30 MHz | EMI-9KA |
| 4.3.3 Frequency range 150 kHz to 30 MHz | EMI-9KB |
| 4.3.4 Frequency range 30 MHz to 1 000 MHz | EMI-9KC |
| 5.3.4 Radiated emission – 30 MHz to 1 000 MHz | |

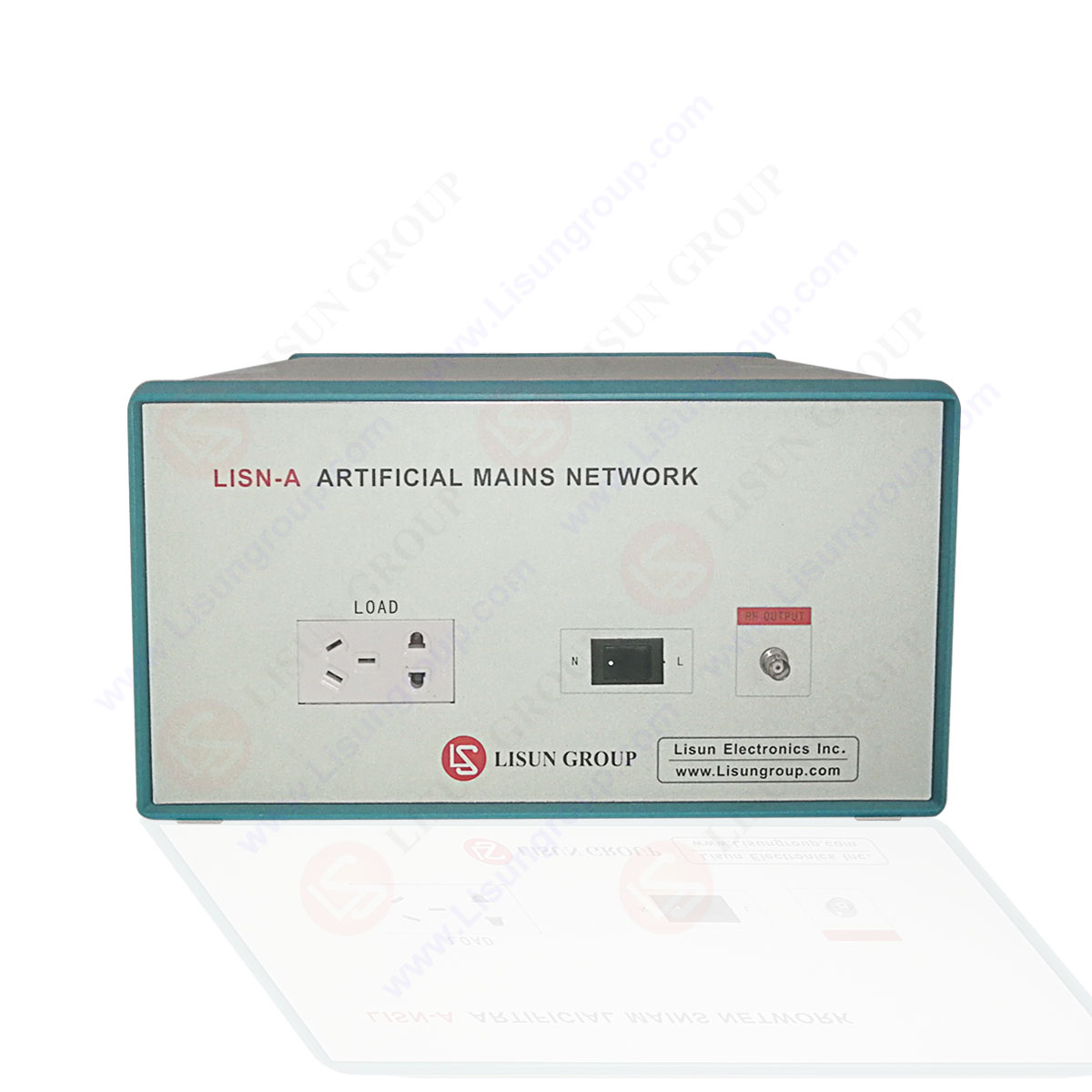

| 5.1.3 Artificial Mains Network (AMN) | LISN-C |
LISUN supplies the fully test solutions for the following CISPR 14-2:2015, please see the below excel table:
| CISPR 14-2:2015 Clause and Subject | LISUN MODEL |
| 5.1 Electrostatic discharge | ESD61000-2 |
| 5.2 Fast transients | EFT61000-4 |
| 5.3-4 Injected currents | LSBCI-40 |

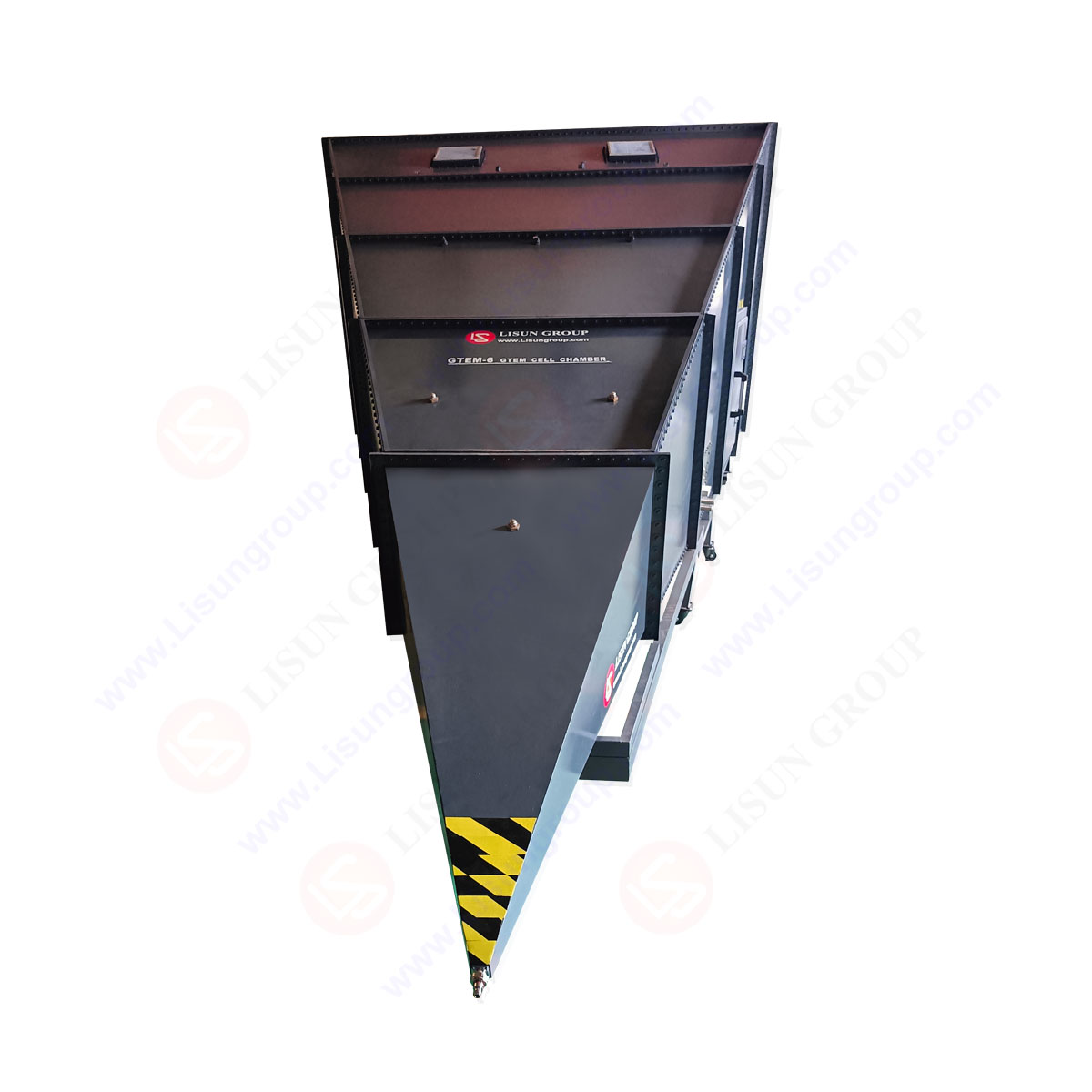

| 5.5 Radio frequency electromagnetic fields, 80 MHz to 1 0o0 MHz | GTEM-2 |
| 5.6 Surges | SG61000-5 |
| 5.7 Voltage dips | CSS61000-11 |
