IPX7 Immersion tank Waterproof test Device

IPX7 Immersion tank Waterproof test Device, also known as rain test chambers, waterproof testing equipment, waterproof detectors, waterproof testing machines, IP waterproof testing machines, etc., are suitable for products including but not limited to electronic and electrical products, diving equipment, mobile phones, bracelet watches, household appliances, LED lamps, lighting fixtures, swimming pool lights, connectors, automotive instruments, and other products.

What is the waterproof standard for IPX7 Immersion tank Waterproof test Device?
The IP (Ingress Protection) protection level system is drafted by IEC (International Electrotechnical Commission), which classifies electrical appliances based on their dust and moisture resistance characteristics.
The IP protection level is composed of two numbers. The first number represents the level of dust prevention and intrusion prevention of electrical appliances (including tools, human fingers, etc.), and the second number represents the degree of airtightness of electrical appliances against moisture and water immersion. The larger the number, the higher the protection level.

Characteristics of IPX7 Immersion tank Waterproof test Device:
The IPX7 Immersion tank Waterproof test Device is divided into two models: one is a stainless steel immersion testing device 1; One type is a glass type immersion test device 2. This testing machine can simulate the pressure environment of water depth and perform water pressure testing on samples.

Glass immersion tester:
1. This testing machine can simulate water pressure testing at depths of 0-1200mm, with a standard testing time of 30 minutes.

2. The testing machine is made up of five pieces of tempered glass and 304 stainless steel splicing, which makes the equipment aesthetically pleasing and allows for a more comprehensive observation of the testing situation inside the chamber; Stainless steel is mainly used to connect the joints of various tempered glass plates, which can effectively increase the pressure bearing capacity of the chamber.

3. In order to make it easier for operators to know the amount of water inside the chamber, we have installed a stainless steel ruler on the outside of the chamber. The value of a stainless steel ruler is measured from the bottom of the chamber, just to measure the amount of water.

4. There are two external water valve switches on the bottom front of the immersion tank, one is the inlet valve; One is the drain valve. This design facilitates the entry and exit of water from the equipment. We also installed movable pulleys for the testing machine to facilitate equipment movement and handling.

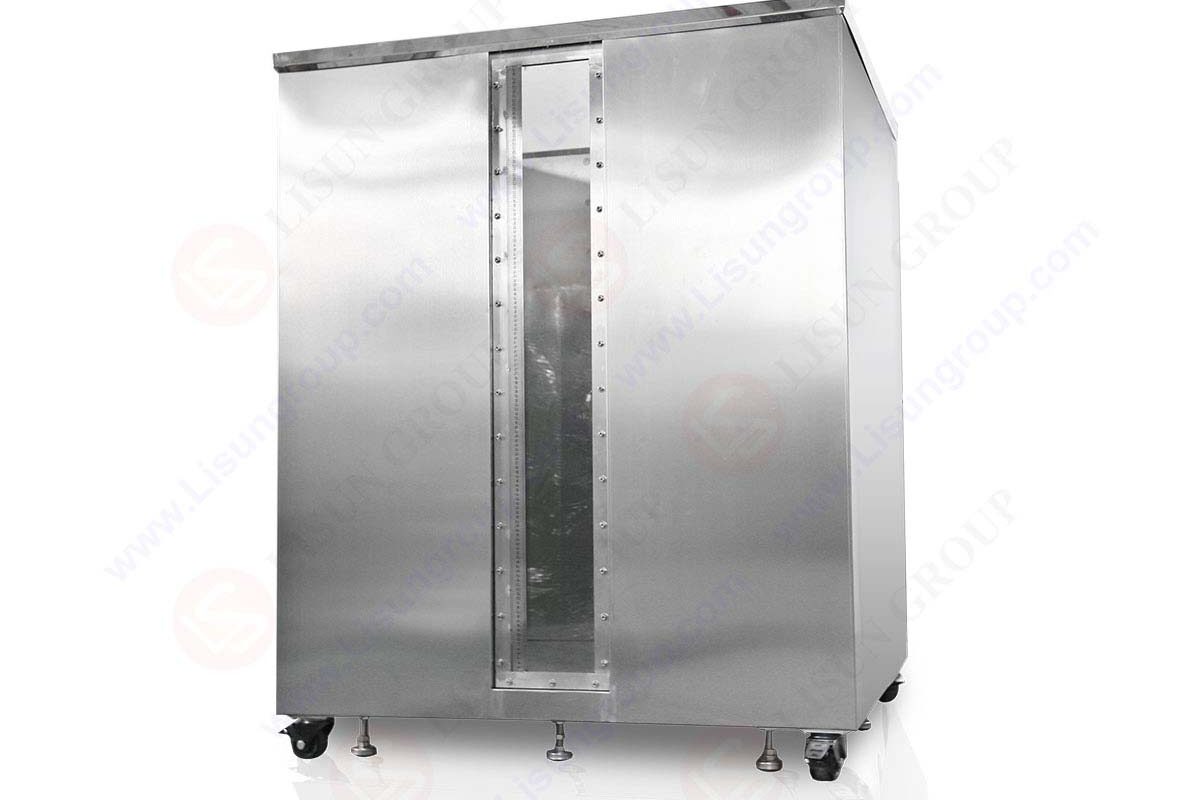

Stainless steel immersion tester:
1. Suitable for IPX7 waterproof level testing of products.
2. The double layer structure of the soaking tank: The inner layer is made of SUS304 # stainless steel, and the overall sub arc welding is formed to ensure that it does not rust or leak during long-term use; Reinforcing ribs are used between the two layers to ensure that the inner chamber does not deform;

3. The outer layer is welded with hairline stainless steel plates, with stainless steel plates wrapped around the edges. The appearance has no solder joints, and the overall appearance is beautiful and elegant.
4. The middle of the double layer is reinforced with 40 square steel pipes to keep the inner chamber from easily deforming;

5. The surface is welded with hairline stainless steel plates, and the black mirror steel plate is used for edge banding. There is no spot welding on the surface, making it unique overall.
6. The water valve is located above the back of the water storage tank under the construction of the inlet and outlet water pipeline.

7. The window is made of 15mm tempered laminated glass, which can clearly observe the detection status of the test object.
8. The stainless steel plate support frame is equipped with a universal wheel and foot cup for easy movement and fixation.
9. The stainless steel ruler displays the information water level line.

What details should be paid attention to in daily life to prolong the service life?
1. Before testing, the water tank of the test sample must be filled up before conducting the test;
2. Keep the inner chamber and water tank of the test chamber clean, and clean water stains when not in use; Diligent to change water once a week;

3. If the filter element inside the filter becomes black, it should be replaced in a timely manner;
4. The standard turntable bearing capacity is ≤ 120kg, please do not operate under overload.

5. Timely find a local third-party institution for calibration based on the date of the calibration certificate; Once a year.
6. Try to place it in a ventilated environment to avoid the impact of humid weather on the chassis.
7. The appropriate test time for IPX7 immersion test is 30 minutes.

How to determine if the IPX7 Immersion tank Waterproof test Device is qualified?
Judgment method: Soak the electronic product in an IPX7 Immersion tank Waterproof test Device with a water depth of 1-1.2 meters for 30 minutes. If the electronic product has no harmful effects, it is considered qualified.

1. The IPX7 Immersion tank Waterproof test Device is suitable for testing the IPX7 waterproof level of products;
2. This chamber allows a height and depth of 1.2 meters, with a bottom area of 600 * 600mm. (Customizable);

3. The water tank is made of five pieces of tempered glass spliced together, with a fully transparent structure that allows for observation of the testing situation inside the chamber;
4. Stainless steel frame, fixed and supporting glass water tank, firm and reliable;

How to Choose a Suitable IPX7 Immersion tank Waterproof test Device?
1. Confirmed which waterproof level test is required for your product, and went to see more parameters or directly contacted customer service to inquire if it is suitable for you.

2. It is the size of the IPX7 Immersion tank Waterproof test Device, and the quantity you need to test, whether it is small or large, its regular dimensions are marked as 600 * 600 * 600mm, 800 * 800 * 800mm, 1000 * 1000 * 1000mm, 1200 * 1200 * 1200mm, and so on. You can choose the box according to the daily testing quantity, and of course, it can also be customized according to user needs.

3. The IPX7 Immersion tank Waterproof test Device has two different functions, namely electric lifting and electric lateral movement. Is the product you are testing a small sample or a large sample? If testing large samples, customers can be provided with electric functions, which can easily place and remove large samples. On the contrary, for small samples, conventional instruments can be chosen.

JL-X waterproof test machine is according to IEC60529:1989 +A1:1999 +A2：2013 《Degrees of protection provided by enclosures(IP Code)》, IEC60598, IEC60335 and IEC 60034-5, GB/T-2423.2, GB4208, GB7000.1. The JL-X includes the following test grades: IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8 (Refer to page 51 of IEC60529). It is widely used in the authentication test organization for the products such as electrical & electronic products, LED luminaires as well as in the relevant quality control department for the waterproof detection of the enclosures protection grades.

• Immersion tank Waterproof test Device (JL-7): It is for IPX7 waterproof test. The water tank size is 1000x1000x1200mm (Other size can be designed according to your request). It can test samples up to 120kg.

Waterproof Test Machine JL-7
