IEC 60598-1 Edition 9 Luminaires – Part 1: General requirements and tests


IEC 60598-1:2020 is available as IEC 60598-1:2020 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.

IEC 60598-1:2020 specifies general requirements for luminaires, incorporating electric light sources for operation from supply voltages up to 1 000 V. The requirements and related tests of this document cover: classification, marking, mechanical construction, electrical construction and photobiological safety. This ninth edition cancels and replaces the eighth edition published in 2014 and Amendment 1:2017. This edition constitutes a technical revision.

IEC 60598-1 Edition 9 Luminaires – Part 1 General requirements and tests

LISUN supplies the fully test solutions for the following IEC 60598-1:2020, please see the below excel table:

IEC 60598-1:2020 Clause and Subject LISUN Model

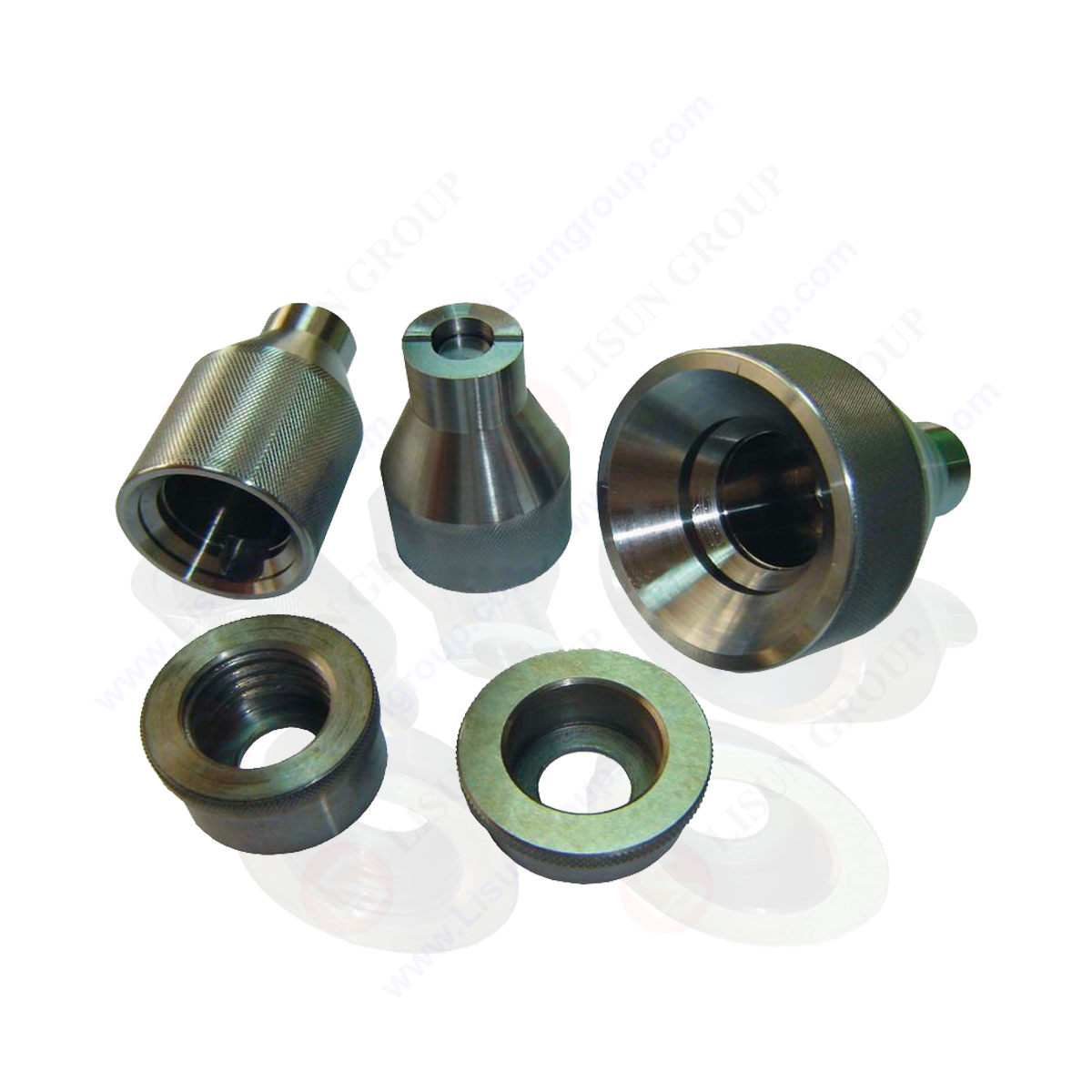

Clause 4.4.4 Lampholders GNG-G5H/GNG-G13H
Clause 4.12.4 Screwed and other fixed connections CH338
Clause 4.12.5 Screwed glands shall comply with the following test. LWMF-1
Clause 4.13.1 Mechanical strength IK01-06

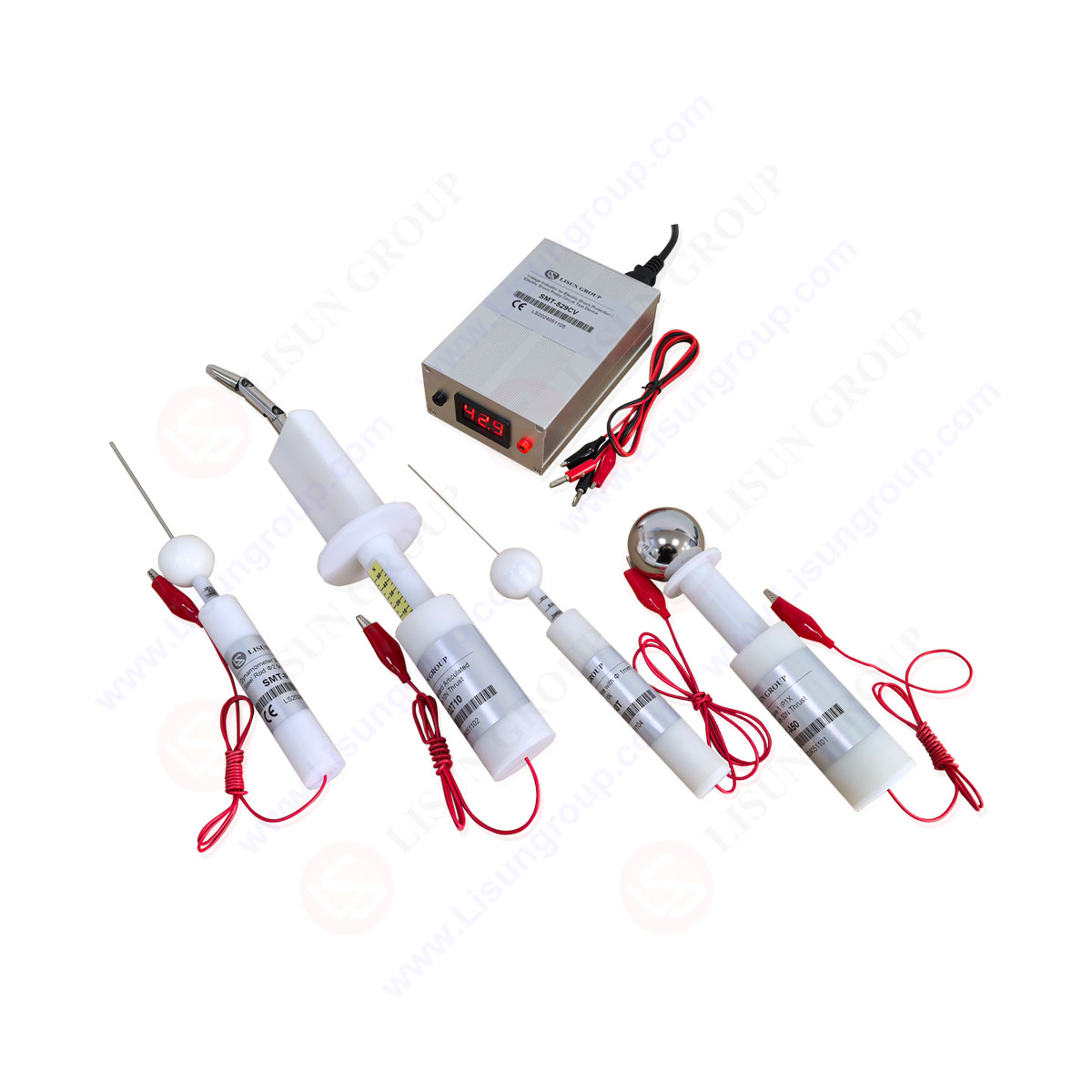

Clause 4.13.3/4 Test finger SMT-529T
Clause 4.13.6 (Figure 25)Rotating Barrel Drop Test Machine LS-DDT1-B

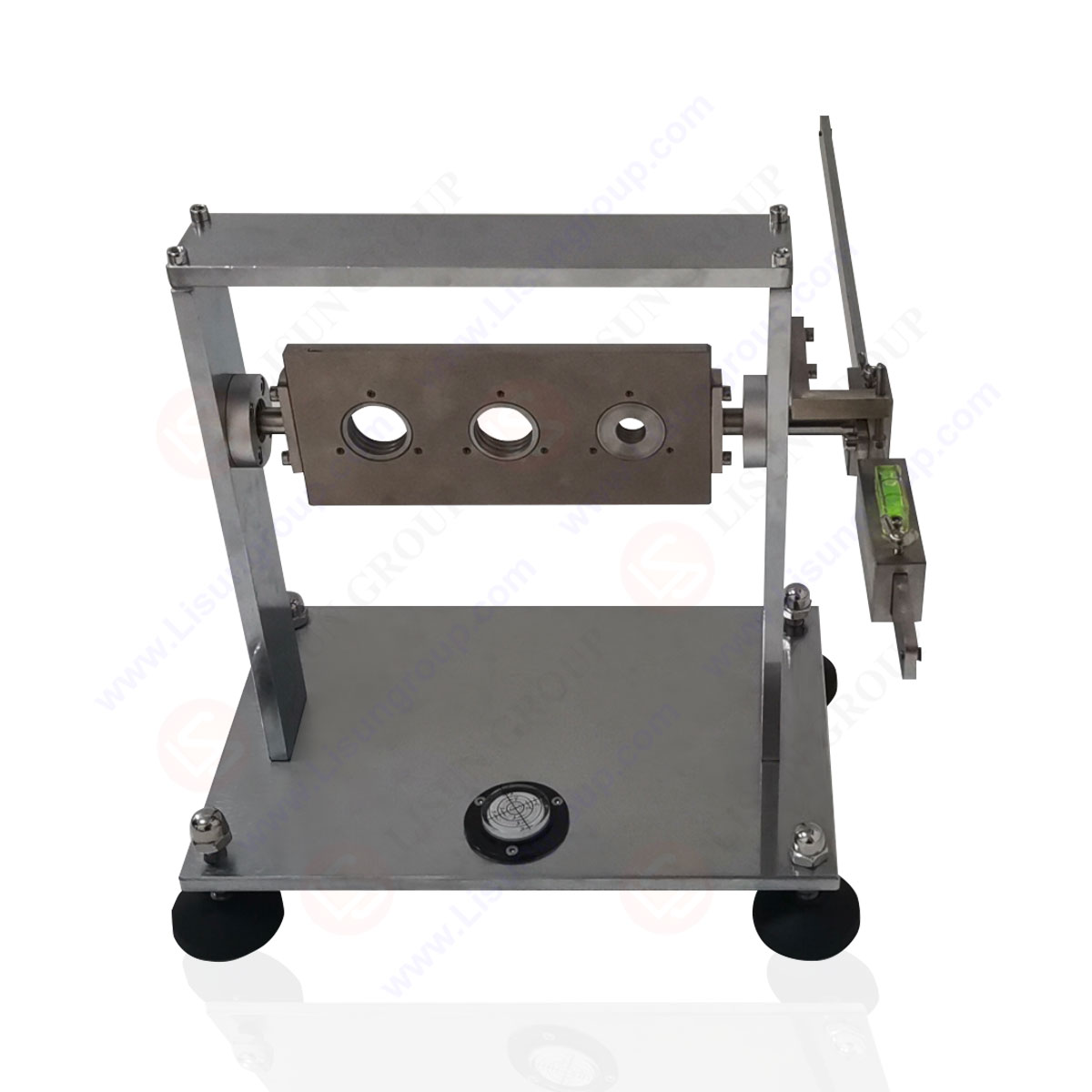

Clause 4.14.2 Mechanical fixings LS-WJ62

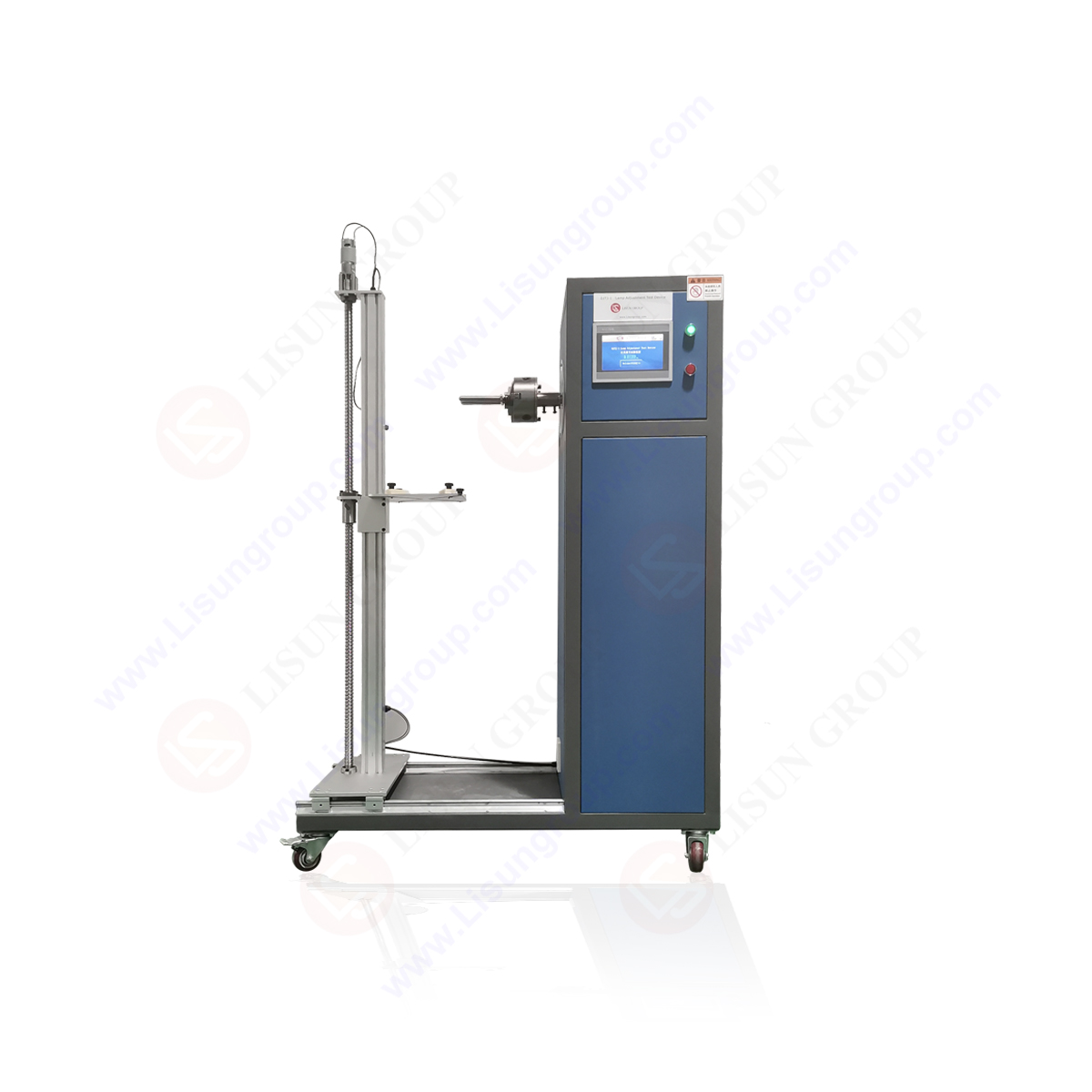

Clause 4.14.3 Adjusting devices testing DJTJ-1
Clause 4.18 Resistance to corrosion YWX/Q-010
Clause 4.20 Rough service luminaires – Vibration requirements LVD-100KG-6D
Clause 4.24 Photobiological hazards EN62471-C
Clause 4.26.3 Lamp test chain DJSYL-1
Clause 8.2 Protection against electric shock SMT-529T
Clause 9.2.1 (Figure 6) Dust proof luminaire tests SC-015
Clause 9.2.3-9.2.9 Drip-proof luminaires JL-X
Clause 10.2.1 Test – Insulation resistance WB2681A
Clause 10.2.2 Test – Electric strength WB2673C

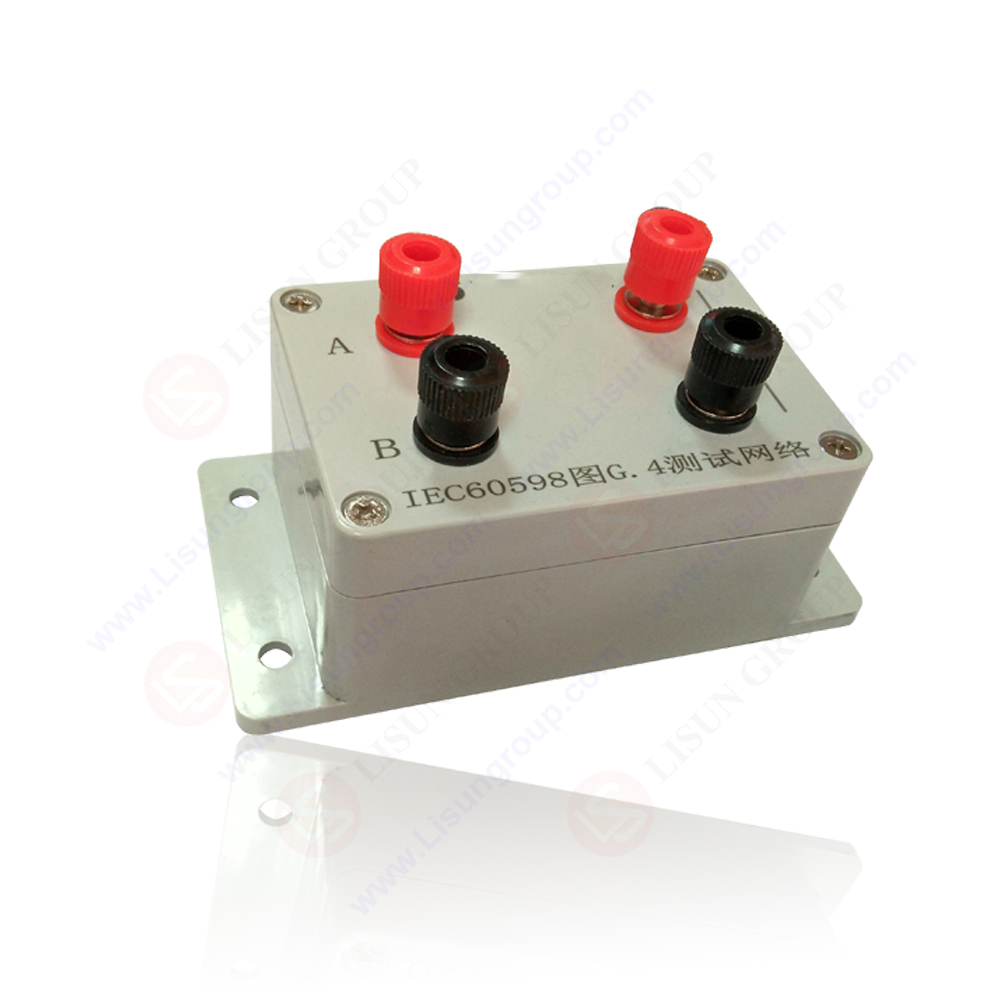

Clause 10.3 Touch current, protective conductor current and electric burn(Figure G2/G3/G4) MNTC-G2/G3 MNTC-G4
Clause 12.3 Endurance test GDJS-010A

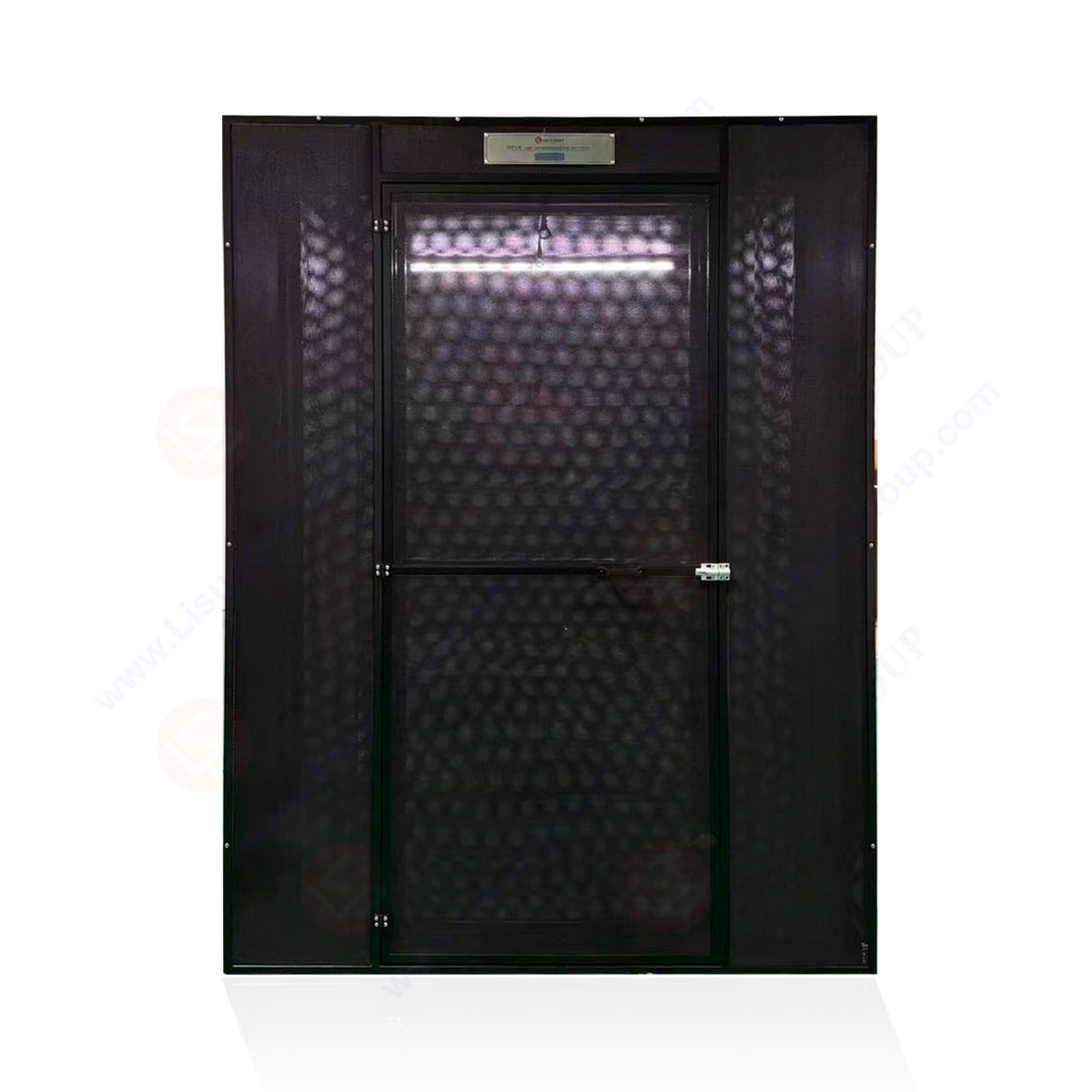

Clause 12.4 Thermal test (normal operation) TMP-LM
Clause 13.2 Resistance to heat(Figure 10) ZBP-T & GW-225
Clause 13.3.1 Resistance to flame test ZY-3
Clause 13.3.2 Resistance to ignition testing ZRS-3H

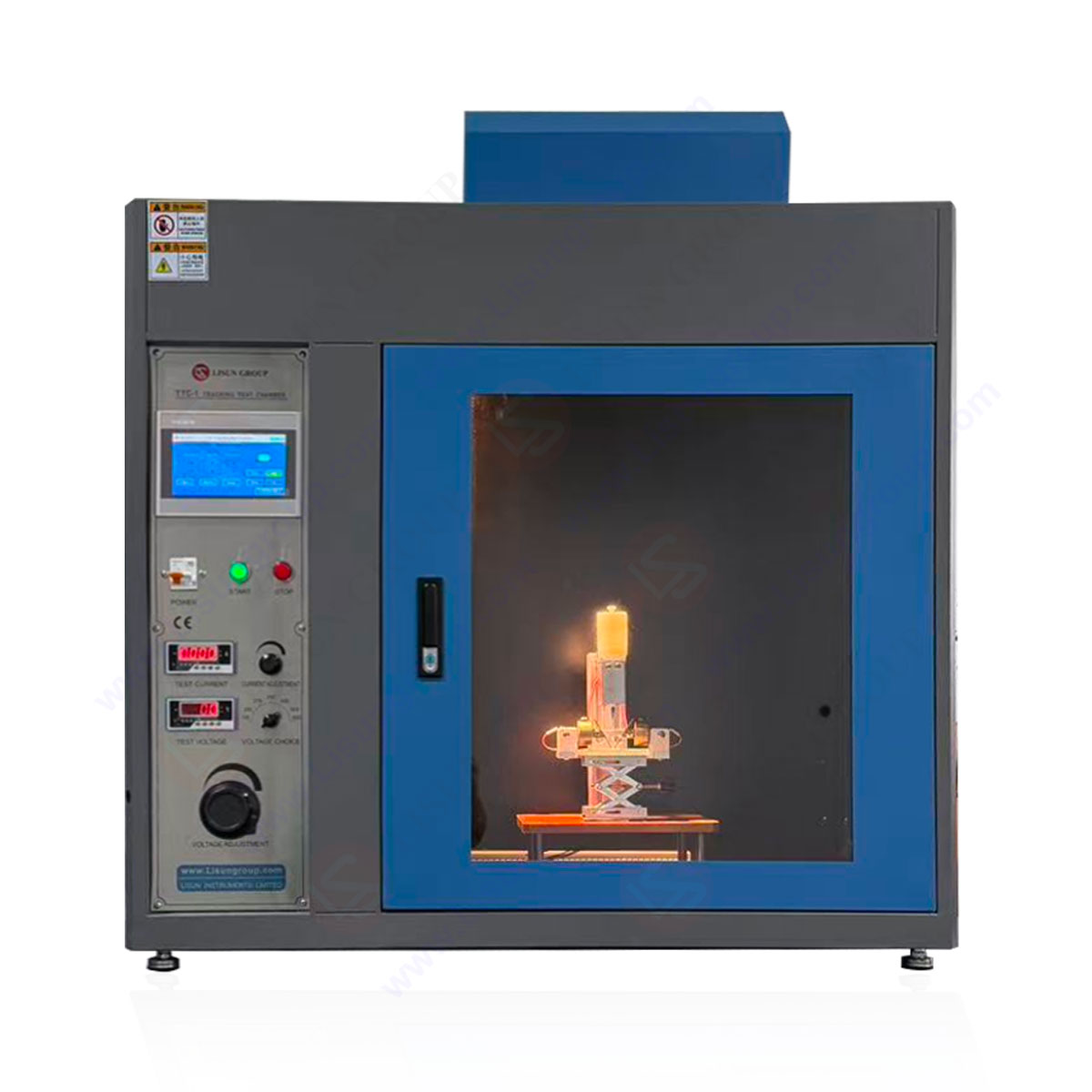

Clause 13.4 Resistance to tracking(Figure 11) TTC-1
