Product No: GNGPL-ASNZS

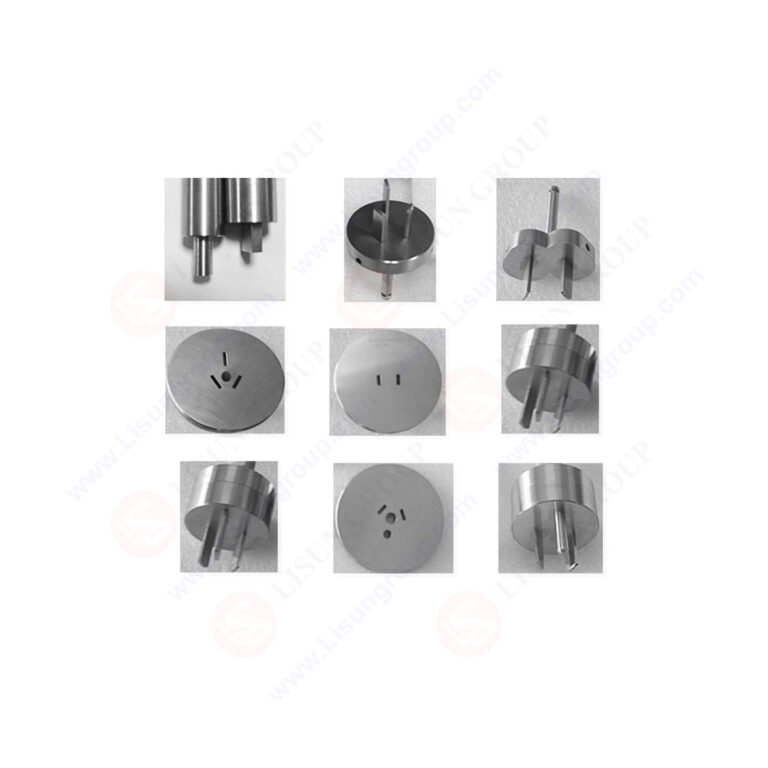

This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to AS/NZS 3112 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC; Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.
|AS/NZS3112 figure3.1/10A/15A||Depth of No-contact test gauge||1|
|AS/NZS3112 figure3.6 Max 10A||Device for checking the resistance to lateral strain (Three Pin Gauge)||1|
|AS/NZS3112 figure3.7 Max 10A||Device for checking the resistance to lateral strain (Two Pin Gauge)||1|
|AS/NZS3112 figure A1||Gauge for three –Pin Flat-Pin Plugs||1|
|AS/NZS3112 figure B1||Gauge for Two-Pin Flat-Pin Flat- Pin Plugs with Parallel Pins||1|
|AS/NZS3112 figure C1||Three-pin test plug with flat pins for full insertion test and the finger test during normal insertion test.||1|
|AS/NZS3112 figure D1||Three-pin test plug with flat pins for abnormal insertion test .||1|
|AS/NZS3112 figure F1||Plugs and socket-outlets for use in extra-low voltage circuits||1|
|AS/NZS3112 figure G1||Three-pin test plug with flat and round pins for the full-insertion test and test finger test during normal insertion test||1|
Tags：AS/NZS 3112 , GNGPL-ASNZS
