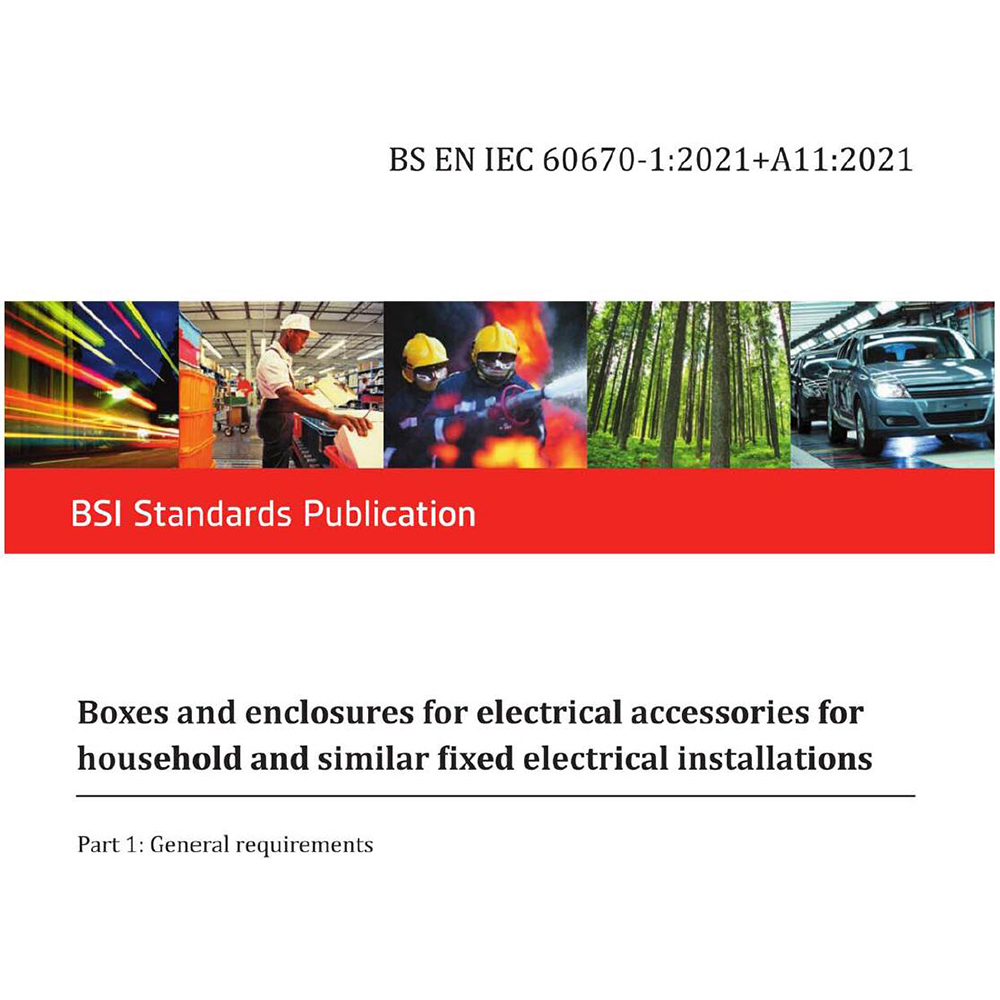

IEC 60670-1 Boxes enclosures for electrical accessories for household and similar fixed electrical installations


This Documents(EN 60670-1:2021) consists of the text of IEC 60670-1:2015 prepared by SC 23B “Plugs, socket-outlets and switches” of IEC/TC 23″ Electrical accessories”.

This part of IEC60670 applies to boxes, enclosures and parts of enclosures (hereafter called “boxes” and enclosures”) for electrical accessories with a rated voltage not exceeding 1000V a.c. and 1500V d.c intended for household or similiar fixed electrical installations, either indoors or outdoors.

Boxes and enclosures complying with this standard are suitable for use at ambient temperature not normally exceeding +40℃, but their average over a period of 24h does not exceed +35 ℃, with a lower limit of ambient air temperature of -5℃.

IEC 60670-1 Edition 2.0 Boxes and enclosures for electrical accessories for household and similar fixed electrical installations–Part 1 General requirements

LISUN supplies the fully test solutions for the following IEC 60670-1:2021, please see the below excel table:

IEC 60670-1:2021 Clause and Subject LISUN Model

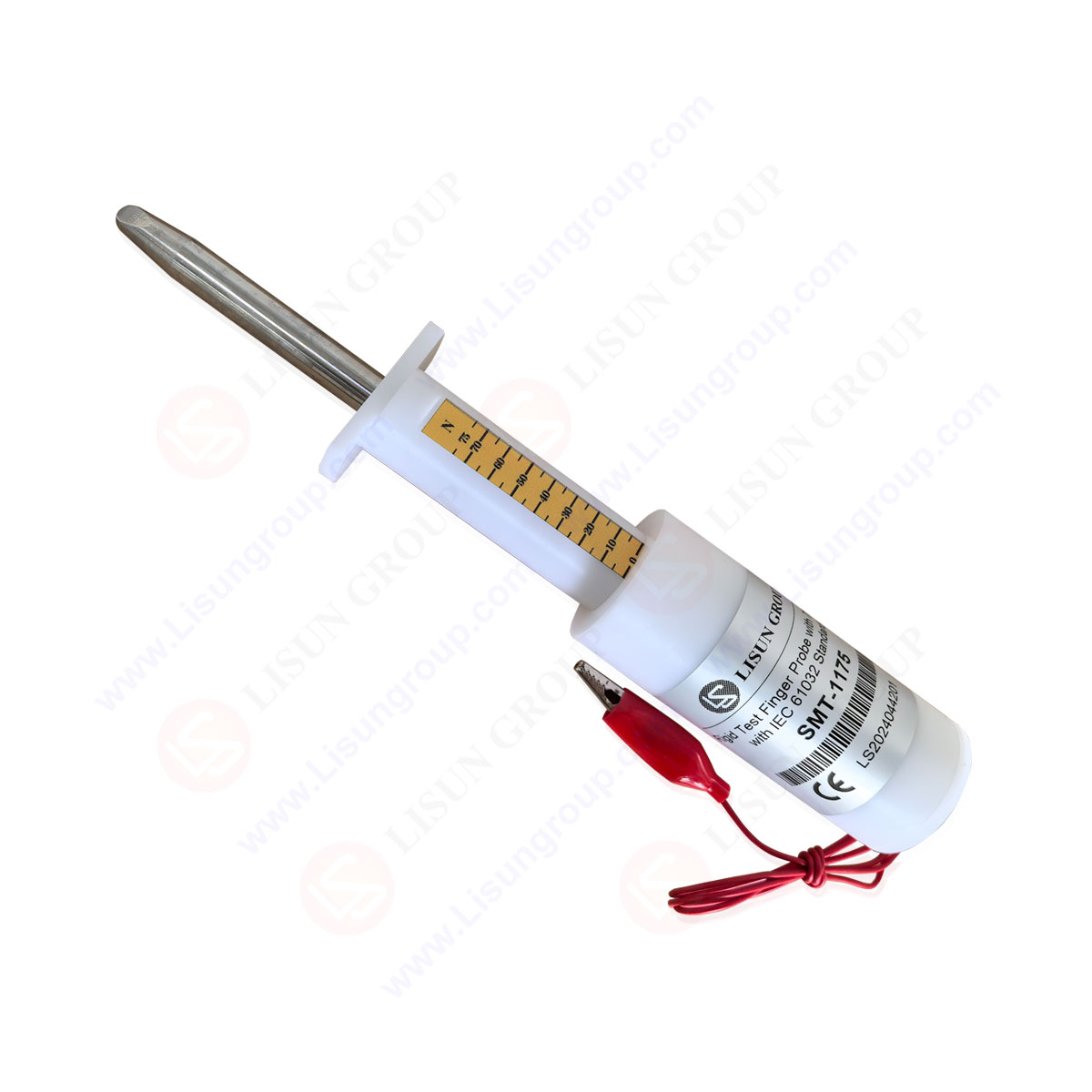

Clause 10 Peoduction against electric shock SMT-1175
Clause 12.1.2 Non-screw type fixing operable without the use of a tool or a key SMT-02T10

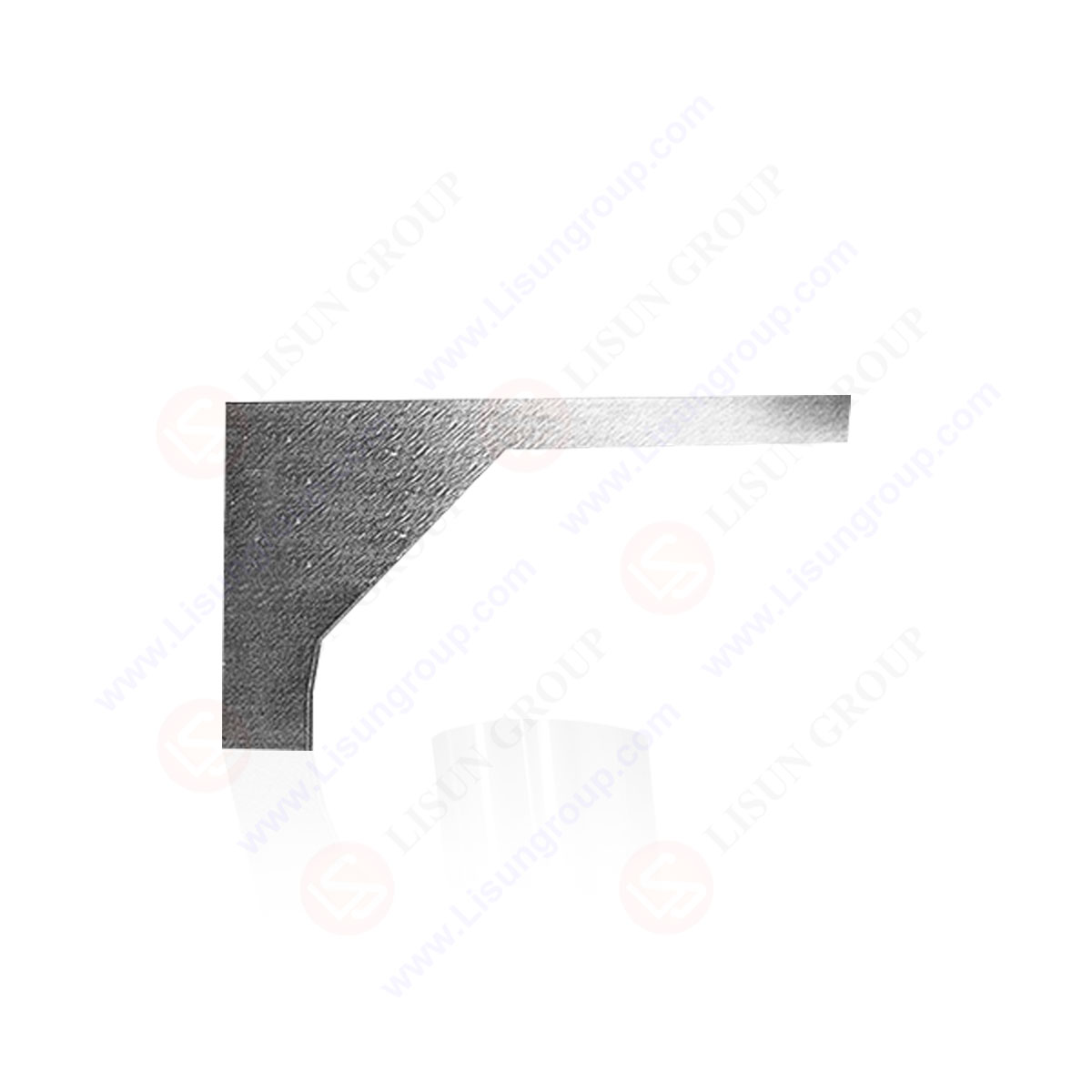

Clause of the outline of lids, covers and cover-plates(Figure 6) GNGPL-23507

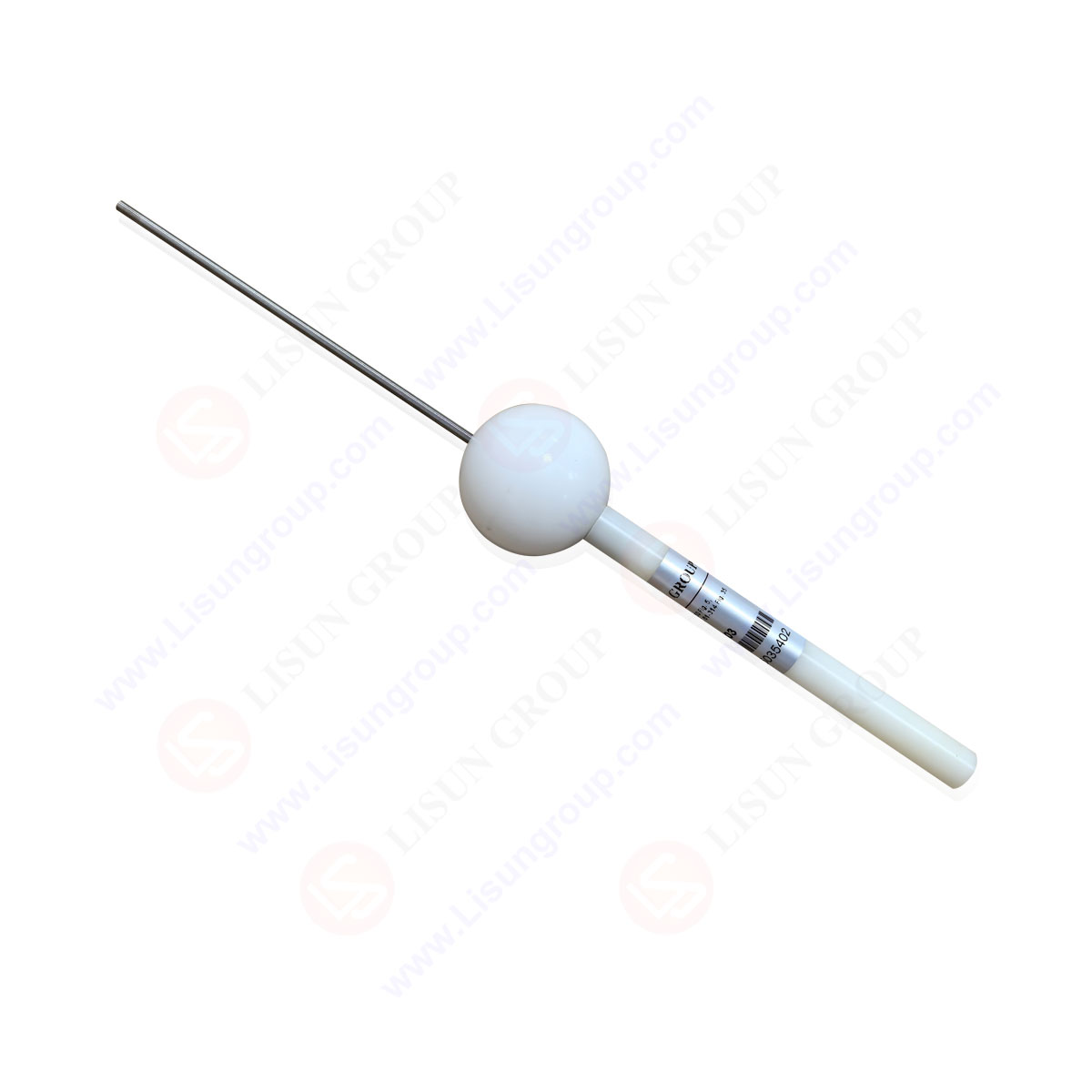

Clause of grooves, holes and reverse tapers(Figure 9) SMT-1203

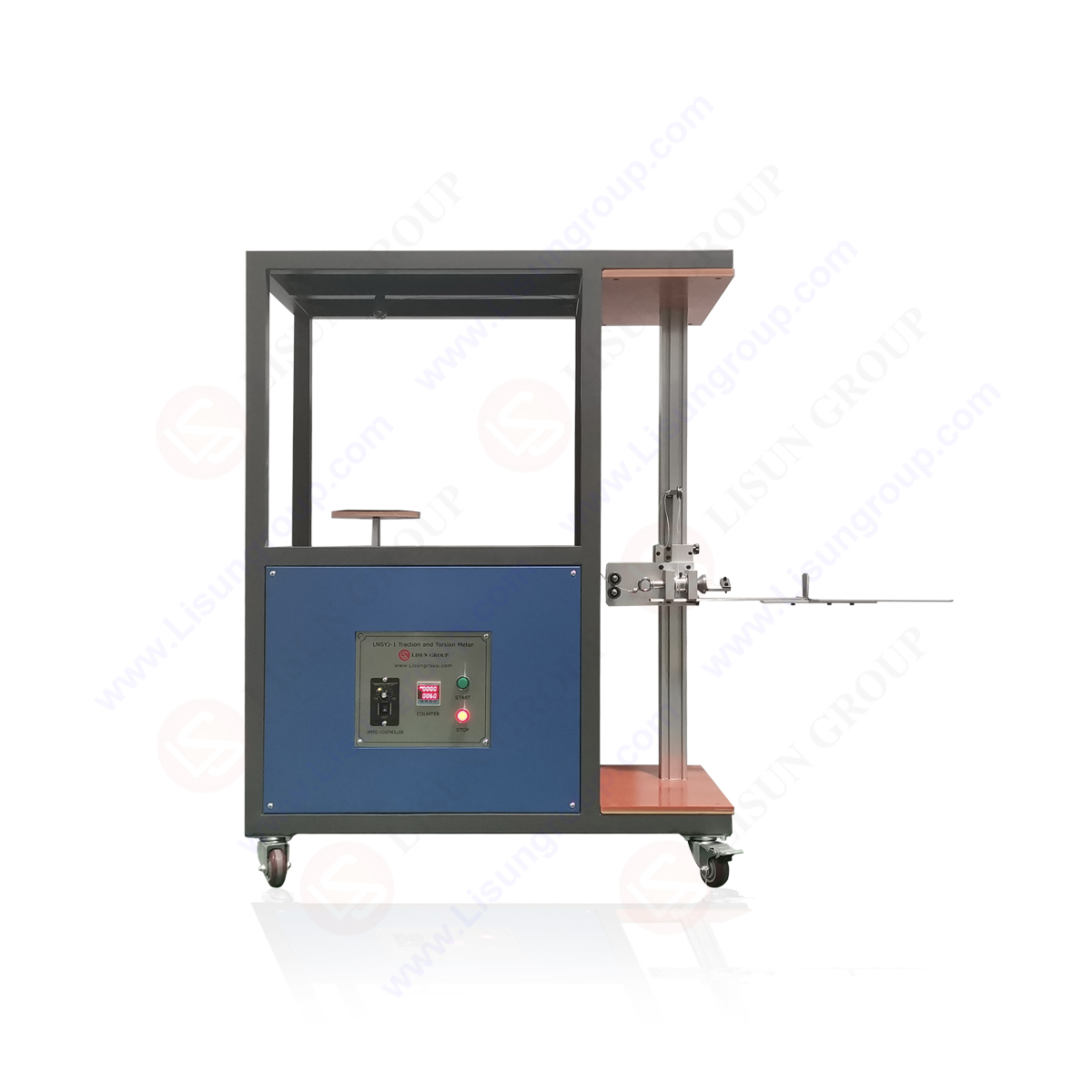

Clause 12.6 (table 3) Boxes and enclosures with inlets for applications other than flexible cables LNSYJ-1
Clause 13.1 Resistance to ageing GW-225
Clause 13.2 Protection against the ingress of solid objects SC-500
Clause 13.3.2 Protection against harmful ingress of water JL-34
Clause 14.2 Insulation Resistance WB2681A
Clause 14.3 (table 6) Electric strength WB2673C
Clause 15.1 Impact test at low temperature(figure 8) DWC-2 & GDJW-500B
Clause 15.3 & 15.5  Compression test LS-B21

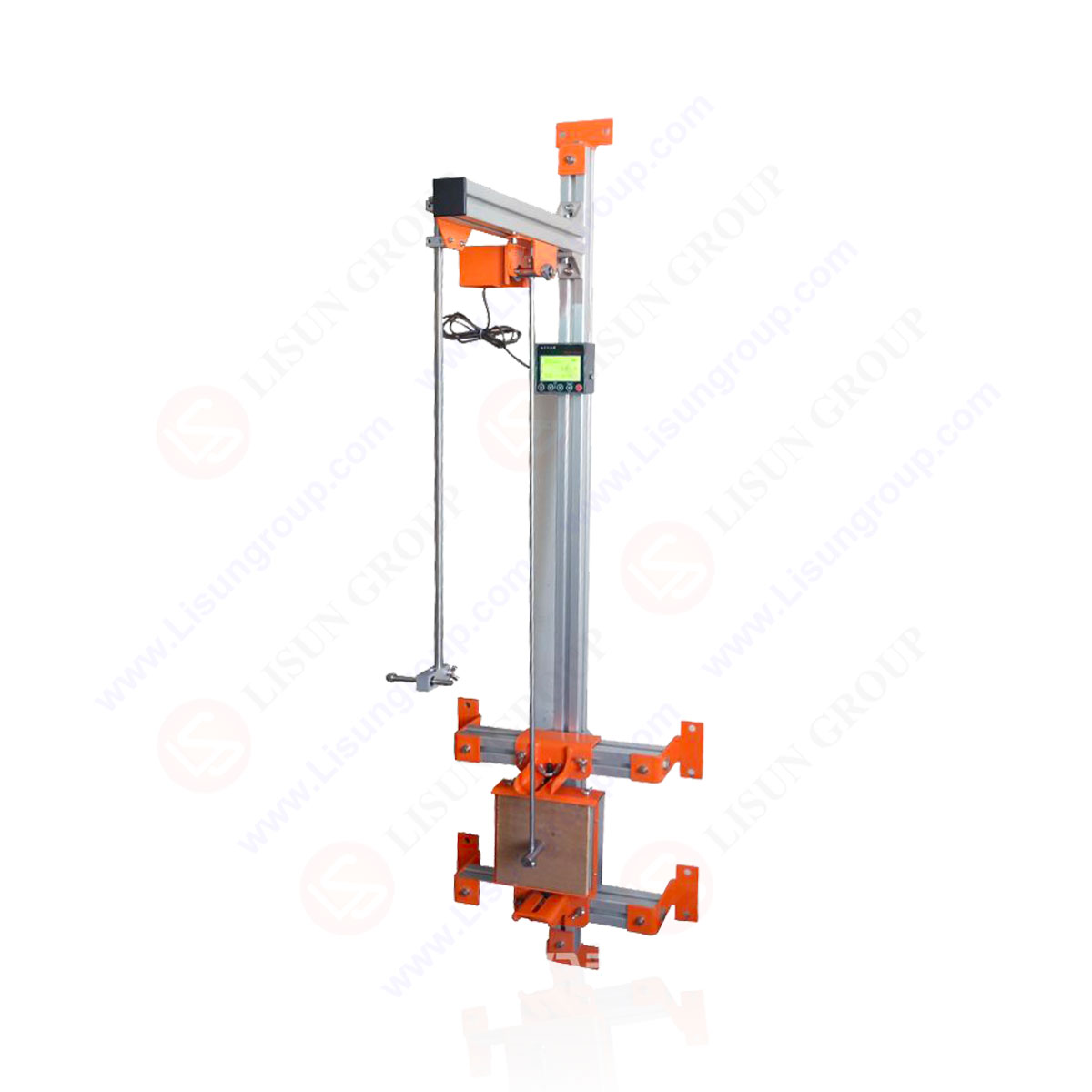

Clause 15.4 Impact test for boxes and enclosures (figure 7 and figure 9, figure 10) IK01-06P
Clause 16.1 parts of insulating material necessary to retain current -carrying parts ZBP-T & GW-225
Clause 14  Creepage distances CK-1
Clause 18 Resistance of insulating material to abnormal heat and fire ZRS-3H
Clause 19 Resistance to tracking TTC-1
Clause 20 Resistance to corrosion YWX/Q-010
