IEC 61032 Figure 7 Rigid Test Finger Probe with 75N Thrust

This Rigid Test Finger Probe with 75N Thrust, compliant with IEC 61032 Figure 7, is a critical safety tool for electrical and electronic equipment—including industrial control panels, IT servers, and laboratory instruments. It simulates human finger contact to test if equipment enclosures can resist high-pressure (75N) intrusion, preventing access to hazardous internal parts (e.g., live wires, rotating components). Crafted from rigid stainless steel (for consistent force transmission) and paired with an insulated, ergonomic handle, it ensures precise, repeatable testing aligned with global safety standards. Durable and standard-compliant, it’s essential for manufacturers to verify enclosure robustness and meet market access requirements.

Specifications:
Tool Type: Rigid Test Finger Probe (IEC 61032 Figure 7 compliant; 75N thrust for hazardous part access testing)
Probe Material: Stainless steel (high rigidity, no deformation under 75N force; conductive, resistance ≤ 0.1Ω; corrosion-resistant)
Handle Material: Polyamide
Applied Thrust: 75N ± 5N (standard for high-pressure enclosure testing; simulates firm human finger pressure)
According to: IEC61032, IEC60335-1, IEC60529-2001, IRAM 4220-1.
Core Function: Tests equipment enclosure robustness against 75N intrusion; verifies protection against finger access to hazardous parts

Test Procedures:
1. Inspect the probe for damage (bent shaft, cracked insulation, poor conductivity) and confirm rigidity.
2. Power on the equipment under test (EUT) and place it in normal operating mode.
3. Hold the insulated handle, align the probe tip with EUT enclosure gaps (e.g., control panel seams, vent slots).
4. Apply a steady 75N thrust to the probe, advancing until resistance stops insertion or the probe reaches full depth.
5. Check for two outcomes: (1) Probe penetration (indicating enclosure failure); (2) Contact with live parts (via connected detection tool).
6. Record results: pass if no penetration/contact; fail if either issue occurs.

Applications:
1. Testing industrial control panel enclosures (to resist 75N finger pressure) per IEC 61032:2017 Figure 5.2.
2. Safety checks for laboratory spectrometers (enclosure gaps against 75N intrusion) per UL 61010-1:2023.
3. Quality control for electric vehicle charging station enclosures (resisting firm finger pressure) during manufacturing.
4. Post-production testing of commercial refrigeration control panels to meet global enclosure safety standards.

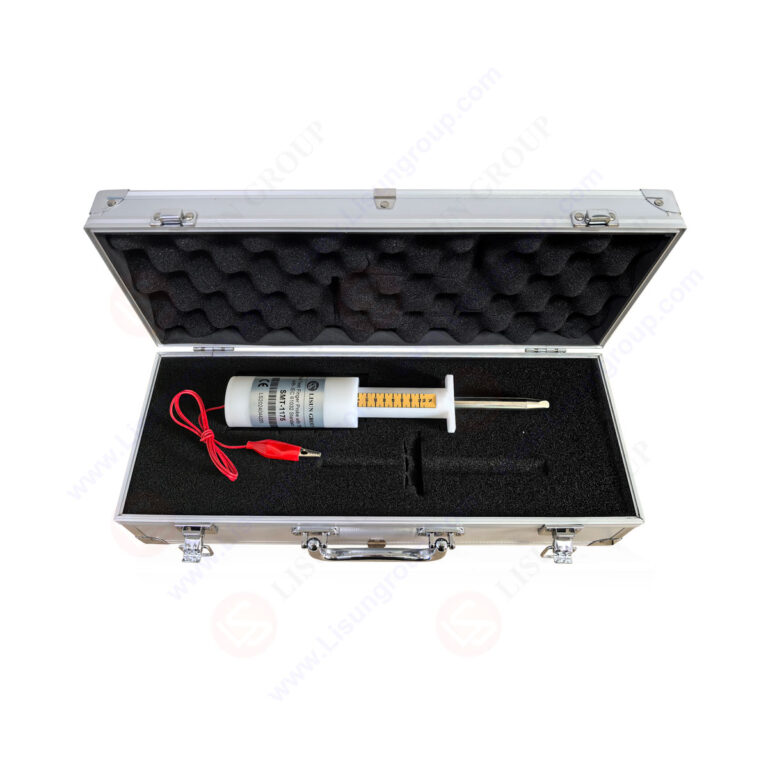

Rigid Test Finger Probe with 75N Thrust with IEC 61032 Standard
