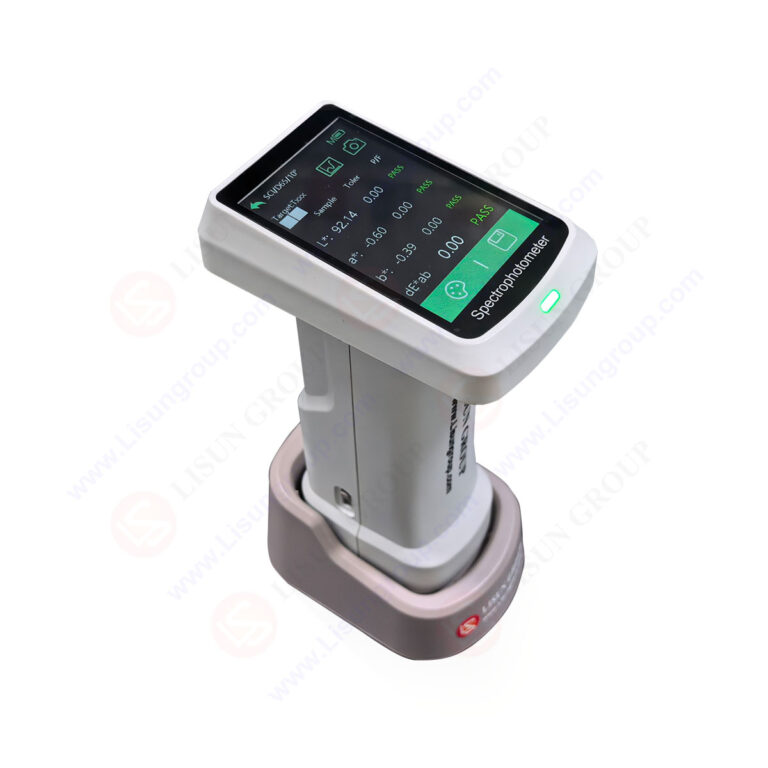

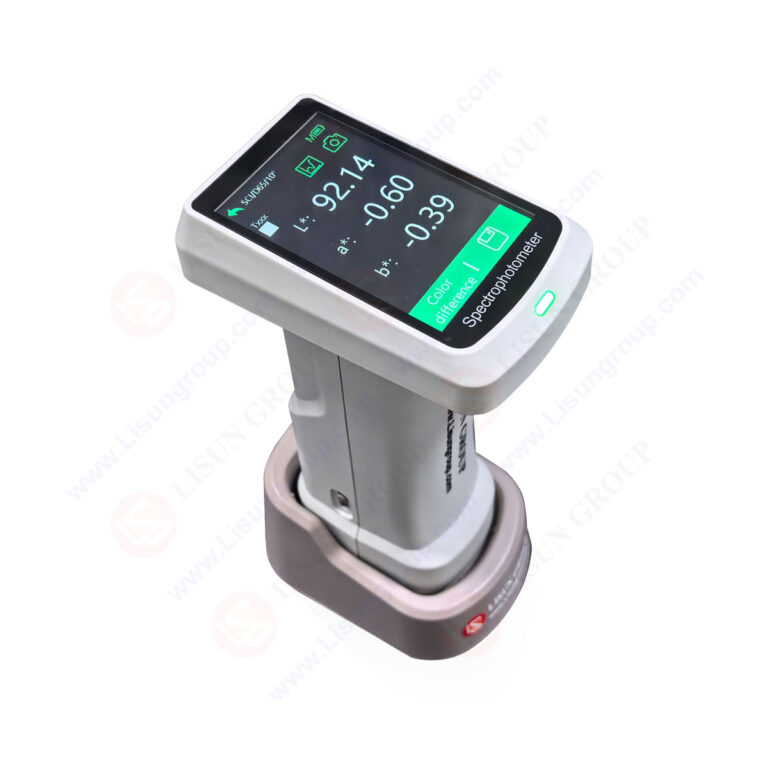

Portable Spectrophotometer (High Accuracy Reflectance)

Product No: HSCD-860

Get a Quote

Your email address will not be published. Required fields are marked *

  • Description
  • Portable Spectrophotometer HSCD-800 is dual optical path design improves repeatability accuracy dE*ab≤0.04. The dual optical path design monitors the fluctuation of light source energy while measuring the sample signal, reduces interference during measurement, obtains higher measurement stability, and improves the measurement repeatability index of the instrument to dE*ab≤0.04. It guarantees the high standard of measurement speed, accuracy, stability and inter-station difference consistency of the instrument.

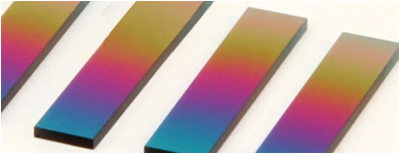

    HSCD-860 Innovative 5-micron-thick nano-integrated optical device innovation is the soul. After nearly 10 years of painstaking research, the instrument uses nano-integrated optical devices as spectroscopic devices, and only 5 microns thick optical devices can achieve nano-level spectroscopic capabilities, once again leading the direction of industry innovation and surpassing the technology of foreign products. The blockade has greatly improved the technical performance of the product.

    Product Features:
    1. Ultra-high repeatability: dE*ab≤0.03.
    Repeatability is an important indicator to describe the accuracy of spectrophotometers. The excellent photoelectric test system solution ensures that the repeatability accuracy of the HSCD-860 spectrophotometer has reached a level that is unmatched by similar products. The repeatability evaluation standard of HSCD-860 spectrophotometer adopts strict standards, showing excellent repeatability accuracy performance.

    2. Excellent inter-station consistency Excellent technology and process level ensure that HSCD-860/HSCD-800 has excellent inter-station consistency. The BCRA series of standard color bricks are used for color transfer and color value traceability, which ensures the excellent inter-station difference level of the instrument.

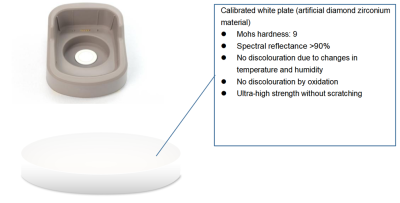

    3. The calibration base and the zirconium reference with Mohs hardness of 9 are used to calibrate the instrument, which ensures the long-term stability of the instrument.
    Compared with the existing products, the HSCD-880/HSCD-800 spectrophotometer does not require frequent manual operation. For calibration, as long as it is placed on the calibration base, the instrument will automatically calibrate the overall instrument function and accuracy according to its own state and environmental factors, ensuring that the instrument is always in a stable state and is on call at any time.

    The whiteboard in the calibration base is the working base of the instrument. Through long-term investment and research, the zirconium material known as “artificial diamond” is integrated as a calibration whiteboard, and the surface Mohs hardness reaches. Due to the hardness and stability of the material itself, it is guaranteed that the surface of the calibration whiteboard will not be scratched and will not change color with temperature and humidity changes. Compared with foreign and domestic similar products that use common industrial ceramics or even plastics as calibration whiteboards, the stability and durability are further improved to ensure the performance of the instrument.



    4. HSCD-860 supports 3 kinds of measurement apertures to choose from In order to facilitate users to measure samples of different sizes, HSCD-860 spectrophotometer supports three apertures for customers to use: Φ8mm/Φ11mm+Φ4mm/Φ6mm+3mm, Can be flexibly applied to a variety of different use and test conditions.

    5. More than 30 kinds of measurement parameters and nearly 40 kinds of evaluation light sources to choose from 30+ measurement indicators; nearly 40 evaluation light sources such as A, B, C, D50, D55, D65 can be selected, covering almost all color measurement indicators and light source types in the industry.

    6. Built-in high-definition camera, clear observation of the measured area HSCD-860 spectrophotometer can obtain the image of the measured area through the camera during measurement, and can clearly locate the measured area of the sample to avoid inaccurate measurement caused by wrong areas.

    7. Support WeChat applet, Android, Apple, Hongmeng mobile APP
    • HSCD-860 spectrophotometer can be connected to various mobile phones through rich mobile terminal programs.
    • Users no longer have to pass the color value and real object of the sample, and can easily pass the color data through WeChat.
    • Users can find the closest color in multiple color charts.
    • Users can create a personal color database, enter color card information such as printing, paint, textile, etc. The created color library can be uploaded to the cloud, data sharing among multiple devices, and color processing is more convenient.
    • Enterprise users can create and manage their own color card information library and color formula in the cloud, and share the information library and color formula with their own users through a unique invitation code.

    8. Use the powerful PC-side color management system ColorExpert*
    • The HSCD-860 spectrophotometer comes with the Windows color management system ColorExpert, which can be connected to the HSCD-860 spectrophotometer via Bluetooth or USB cable.
    • ColorExpert is a full-featured color management software with four functional modules: My Color, Color Detection, Color Matching System, and Personal Center.

    • In the “My Colors” function module, users can bookmark or create their own desired color library among hundreds of color libraries shared by other users. The computer software and the mobile APP can share the account, and the color library data follows the account to realize the synchronization of PC and mobile terminal information.
    • In the “color detection” function module, the user can calibrate, measure and set the spectrophotometer through the computer software. Users can use the color in the cloud database as a standard sample to measure color difference, view the spectrum graph, color difference graph, standard sample data, and export the desired data test report.
    • In the “color matching system” function module, it can provide users with a more convenient and efficient color matching process. After the instrument detects the color of the sample, the system calculates the formula in the formula center and automatically corrects the color, and finally achieves an accurate match. It is suitable for computer automatic color matching applications in paint, coating, printing, textile and other fields.
    • In the “Personal Center” function module, users can edit their personal information, search or delete connected instrument information, manage downstream users, and manage the color library shared with downstream users.

    Model

    HSCD-860

    HSCD-800

    Test condition

    SCI+SCE

    SCI

    Repeatability

    ≤0.03

    ≤0.04

    Inter-instrument Agreement

    ≤0.3

    ≤0.4

    Aperture

    Three apertures

    Single aperture

    UV light source

    ×

    Camera function

    ×

    MobileApp

    ×

    PC software

    Specifications:
    • Diffuse illumination / 8° directional reception with specular reflected light included / specular reflected light removed
    • White plate calibration with 30 standard deviations measured at 5 second intervals after white plate calibration
    • BCRA Series II average of 12 colour plate measurements
    • illumination aperture is the actual aperture opening size of the instrument

    Product Model HSCD-860 HSCD-800

    Measurement structure

    D/8, SCI+SCE

    D/8, SCI

    Measurement repeatability

    dE*ab≤0.03

    dE*ab≤0.04

    Difference between stations

    dE*ab≤0.3;

    dE*ab≤0.4

    Accuracy

    0.01

    Measurement/Illumination Aperture

    Three caliber:Φ8mm/Φ11mm+Φ4mm/Φ6mm+3mm

    Single caliber:Φ8mm/Φ11mm

    Measurement Parameters

    Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color
    difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM
    E313-73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI(ASTM
    D1925,ASTM E313-00,ASTM E313-73), Blackness(My,dM),Color Fastness,
    Tint,(ASTM E313-00),Color Density CMYK(A,T,E,M), Milm, Munsell, Opacity,
    Color strength

    Light source conditions

    A, B, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2

    Lighting source

    LED+UV

    LED

    Measurement observation method

    Camera

    Eyes

    Calibration

    Smart Auto Calibration

    Software support

    Andriod, iOS, Windows, WeChat applet

    Windows

    Accuracy Guarantee

    Guarantee first-level measurement qualified

    Guarantee qualified measurement

    Field of view

    2°,10°

    Integrating sphere diameter

     40mm

    Standard

    CIE No.15, GB/T 3978, GB 2893,GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7

    Spectroscopic method

    Nano-integrated spectroscopic device

    Sensor

    Silicon Photodiode Array Dual 16 Groups

    Wavelength interval

    10nm

    Wavelength range

    400-700nm(User can view 31 wavelength reflectance)

    Reflectance measurement range

    0-200%

    Reflectivity Resolution

    0.01%

    Measurement method

    Single measurement, average measurement (2~99 times)

    Test time

    About 1s

    Interface

     USB,Bluetooth

    USB

    Screen

    Full color screen, 3.5 inches

    Battery capacity

    8000 continuous measurements on a single charge, 3.7V/3000mAh

    Light source life

    1 million times in 10 years

    Language

    Chinese/English

    Storage

    Instrument: 10,000 pieces of data; APP: mass storage

    Instrument: 10,000 pieces of data
