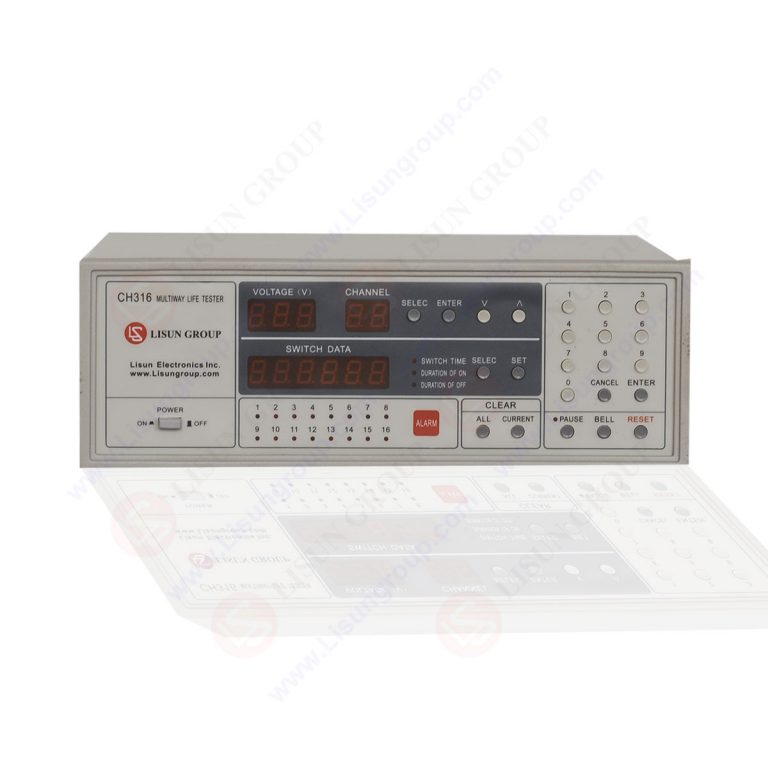

Multiway Life Tester

Product No: CH316

Get a Quote

Your email address will not be published. Required fields are marked *

  • Description
  • Download
  • Multiway Lamp On-Off Switch Life Tester which is according to IEC60432-1 Standard.

    Features:
    • Measure 16 samples at the same time, evaluate and record the life of each sample.
    • Very flexible: Samples can be added and changed at anytime.
    • The life of each sample is readable at anytime.
    • The switch ON/OFF time is adjustable (Test period is min 1s).
    • Automatically remember the test result when the power is off, and resume the old measurement when power is on.
    • Sound and light alarm when the products were failed.

    Specification:
    • Current range under normal load: 30mA~1000mA (RMS). Invalid if the load current is smaller than 30mA.
    • Tested sample life range: 0~1,000,000 times.
    • Switch on or switch off time can be set at: 1 second ~ 99 hours 59 minutes 59 seconds.

  • IEC60432-1 2005 Standard Free Download
