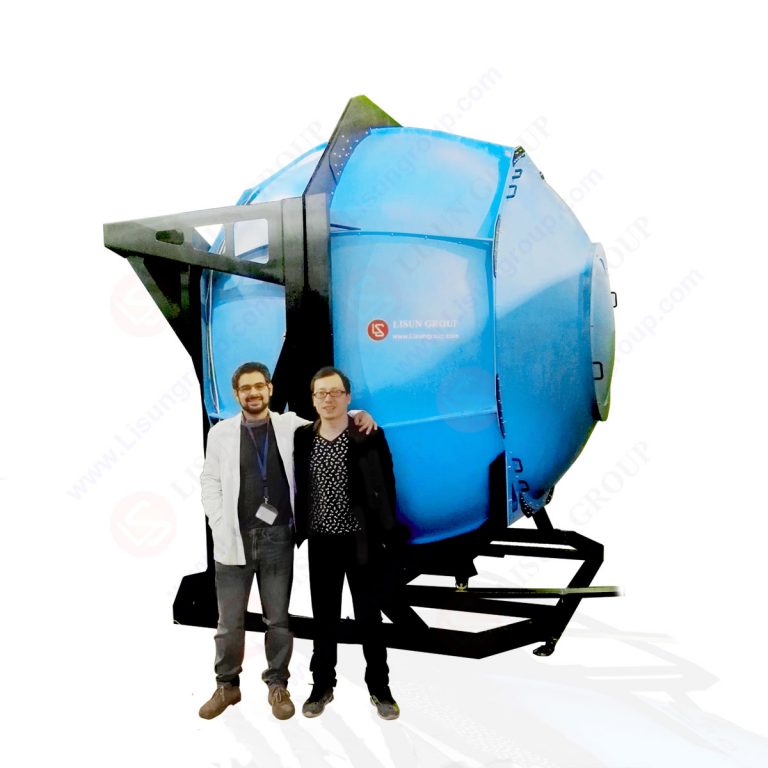

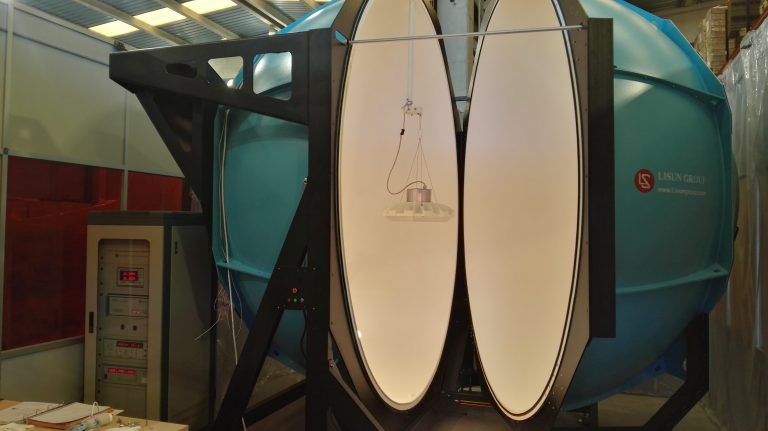

New Design 3m Electric Integrating Sphere

Due to the lighting fixtures self-absorption, if the integrating sphere is bigger, the test results will be more accuracy. LISUN can produce the super big ulbricht integrating spheres such as 2.5m, 3m, 3.5m and 4m. Other size can also be designed.

LISUN add the infrared anti-pinch device for safety. It will automatically stop closing the sphere if somebody is inside of the sphere.  Please refer to article The New Design 3m Electric Integrating Sphere for more information.

Specification:
• Painting material of integrating spheres is according to CIE Pub.No.84 (1989)
• The painting material is BaSO4 coating: ρ (λ) ≥0.96 (450nm~800nm) and ρ (λ) ≥0.92 (380nm~450nm)
• Fine diffuse reflection: Reflectance ρ≈0.8 and accuracy of ρ (λ) <1.5%
• Build-in all functional lamp testing jigs: E27, T5/T8/T12 tubes and the testing holder base for LED and other luminaires. All samples under test can be installed both up and down directions in the sphere.
• Power cable, power terminal and auxiliary lamp position are built-in (Auxiliary lamp is optional)
• Power cable and socket are build-in. It is convenient to power on the lamp under test
• Two photo detector ports, one optical fiber port and temperature sensor hole are built-in
• Build-in cross laser can help to install the standard lamp and the lamp under test in the center of the integrating sphere

Cross Laser for Integrating Sphere

LISUN Integrating Sphere – After-sales Frequently Asked Questions (FAQ).
LISUN integrating spheres were in the market for more than 10 years, LISUN engineers service team already summary the most of the After Sales Questions and Answers in the above link. Please read it carefuly, you can solve the most of the problems by yourself if you have some questions while using the instruments. LISUN will be continue to update this pages and more FAQ can be found in this topic link.
