NF C 61-314 of French Standard Plugs and Socket Outlets Adaptors Gauges
NF C 61-314 of French Standard Plugs and Socket Outlets Adaptors Gauges

NF C 61-314 of French Standard Plugs and Socket Outlets Adaptors Gauges

Product No: GNGPL-61314

Leave a Message

=
  • Description
  • Download

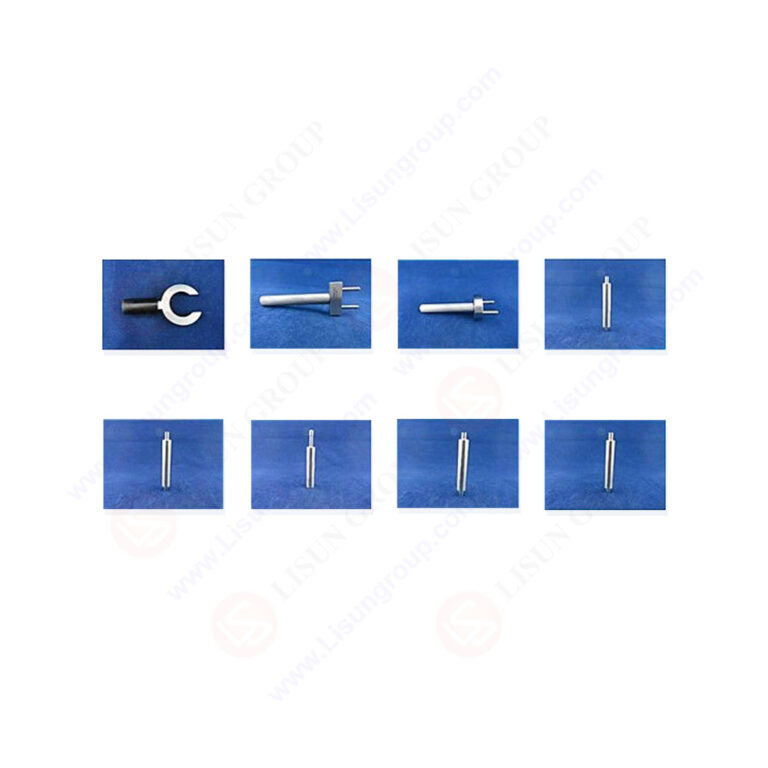

  • The French Standard Plugs and Socket Outlets Adaptors Gauges is strictly designed and manufactured according to the relevant standard requirements of NF C 61-314.

    This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to NF C 61-314 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.

    Specification:

    LISUN Model Product Specifications
    GNGPL-631C1 NF C 61-314 C1 Gauge for checking impossibility of single-pole insertion of plugs (6A/16A)
    GNGPL-631C2 NF C 61-314 C2 Gauges for size of entry holes for plug pins (5.3mm/5.8mm)
    GNGPL-631C3 NF C 61-314 C3 Gauges for distance to point of first contact ( 5.75/5.0/5.25mm, 6A; 5.45/5.60/5.75mm, 16A)
    GNGPL-631C4ABCD Gauges for minimum opening contact tubes
    NF C 61-314 C4A (3.94mm, 300/150g;
    NF C 61-314 C4B (3.80mm, 400/200g);
    NF C 61-314 C4C  (4.60mm, 400/200g);
    NF C 61-314 C4D  (4.86mm, 2500g)
    GNGPL-631C5 NF C 61-314 C5 Gauge for acceptance of two-pole plugs (6A/16A)
    GNGPL-631C6 NF C 61-314 C6 Gauge for maximum opening of contact tubes(16A)
    GNGPL-631C7 NF C 61-314 C7 Gauge for pin spacing(6A/16A)
