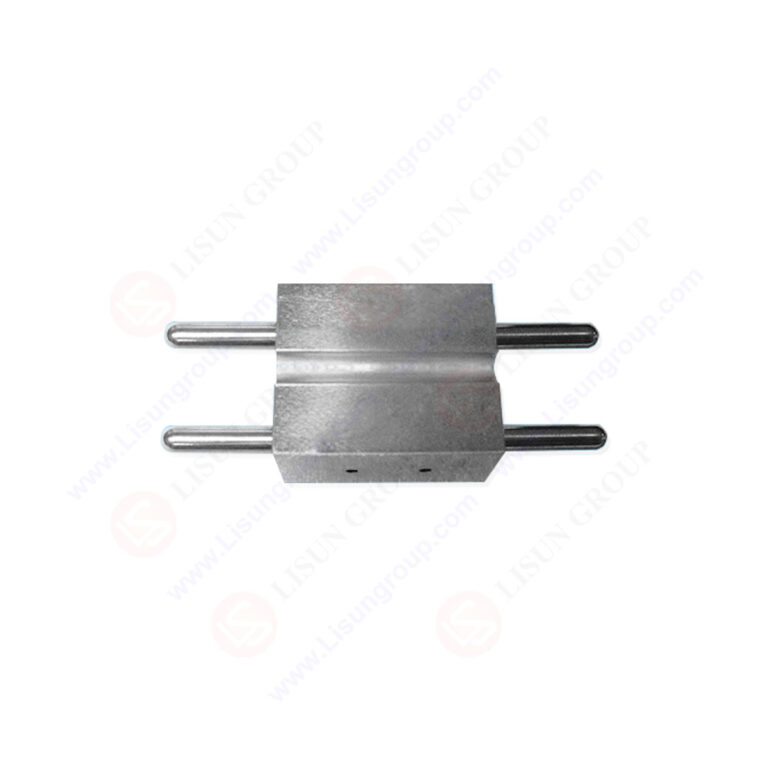

NF C 61-314 C5 CALIBRE POUR VÉRIFIER L’INTRODUCTION DES FICHES BIPOLAIRES is engineered in strict accordance with the NF C 61-314 standard, focusing on verifying the insertion performance of two-pole plugs for electrical connection devices. It acts as a vital quality control instrument for ensuring that two-pole plugs can be properly and safely inserted into matching sockets, with a precision-machined structure that aligns with the stringent technical requirements of electrical equipment safety and compatibility testing. It is a must-have tool for manufacturers, testing facilities, and quality inspection agencies involved in the production and certification of plugs and sockets for domestic and similar electrical applications.​

Specifications​
• Fully complies with the technical requirements of the NF C 61-314 standard​
• Dedicated to testing the insertion feasibility and smoothness of two-pole plugs​
• Features high-precision dimensional tolerances to match standard plug and socket interfaces​
• Constructed with durable, wear-resistant materials to ensure long-term testing stability​
• Designed with ergonomic handling parts for convenient and accurate operation during tests​
• Calibrated to meet the specific dimensional and functional criteria for two-pole plug insertion verification​

Test Procedures​
• Prepare the two-pole plug to be tested, and ensure its surface is free of dirt, deformation, or other defects that may impact the insertion test results.​
• Inspect the gauge for any signs of damage, wear, or misalignment to confirm it is in proper working condition before testing.​
• Position the gauge in the specified orientation relative to the matching socket or test fixture that simulates the socket interface.​
• Gently attempt to insert the two-pole plug into the gauge according to the operation guidelines set by the NF C 61-314 standard, observing the insertion resistance and smoothness throughout the process.​
• Record whether the plug can be inserted to the specified depth and whether it meets the standard’s requirements for insertion force and position.​
• Compare the test results with the compliance criteria in the NF C 61-314 standard to determine if the plug passes the insertion verification.​
• After completing the test, clean the gauge with a soft cloth and store it in a dry, dust-free storage environment to preserve its accuracy and service life.​

Applications​
• In-line quality inspection of two-pole plug products during mass production in electrical component manufacturing plants​
• Compliance certification testing of two-pole plug and socket systems in professional third-party electrical testing laboratories​
• Market sampling inspection of two-pole plug products by regulatory authorities to ensure product safety and standard compliance​
• R&D validation of new two-pole plug designs by electrical equipment R&D teams to verify insertion performance against NF C 61-314 standards​
• Incoming quality control of two-pole plug components by electrical equipment assembly enterprises to avoid non-compliant parts entering the production chain​
• After-sales quality assessment of two-pole plug products by manufacturers to address customer feedback on insertion-related issues
