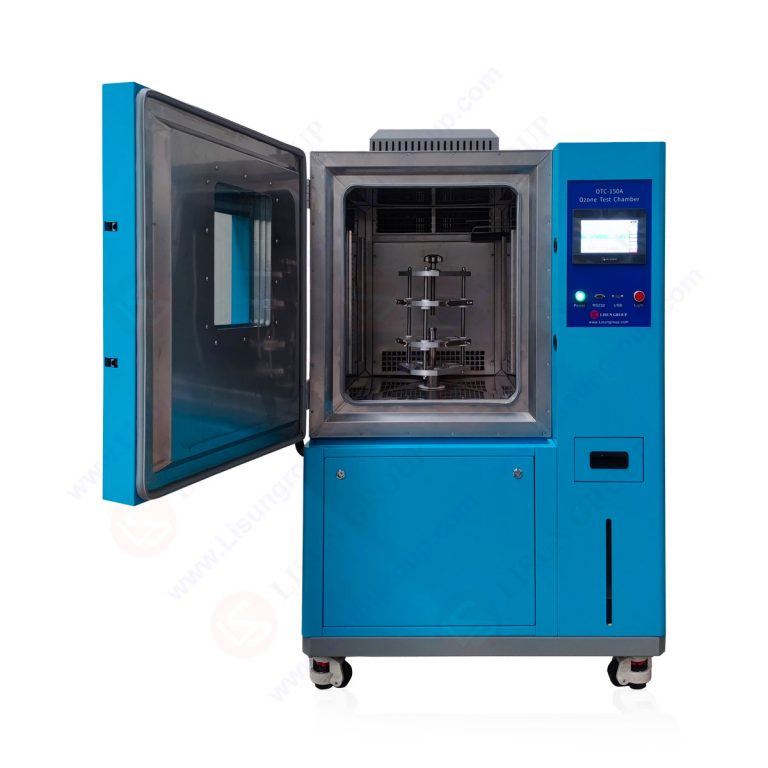

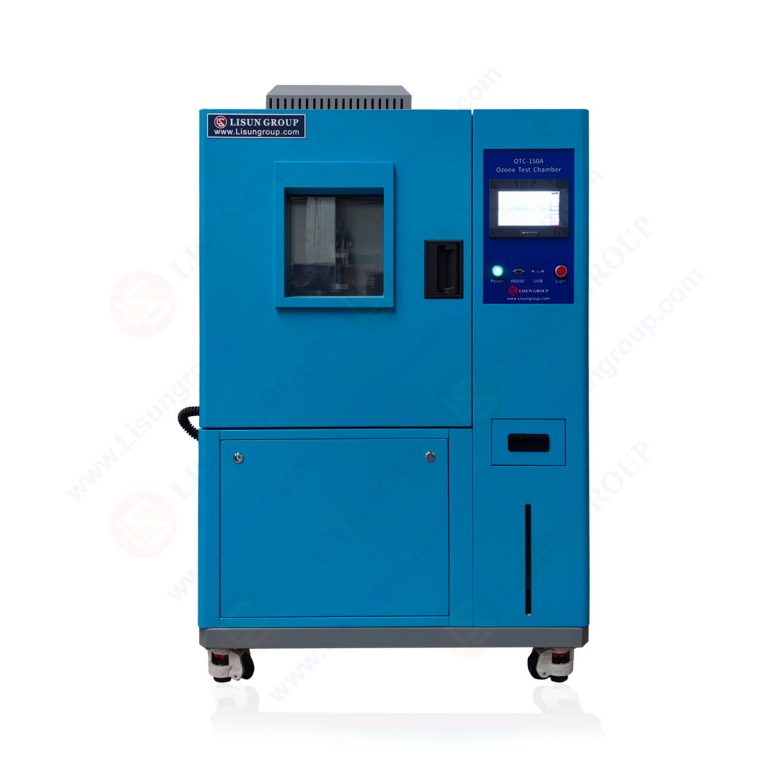

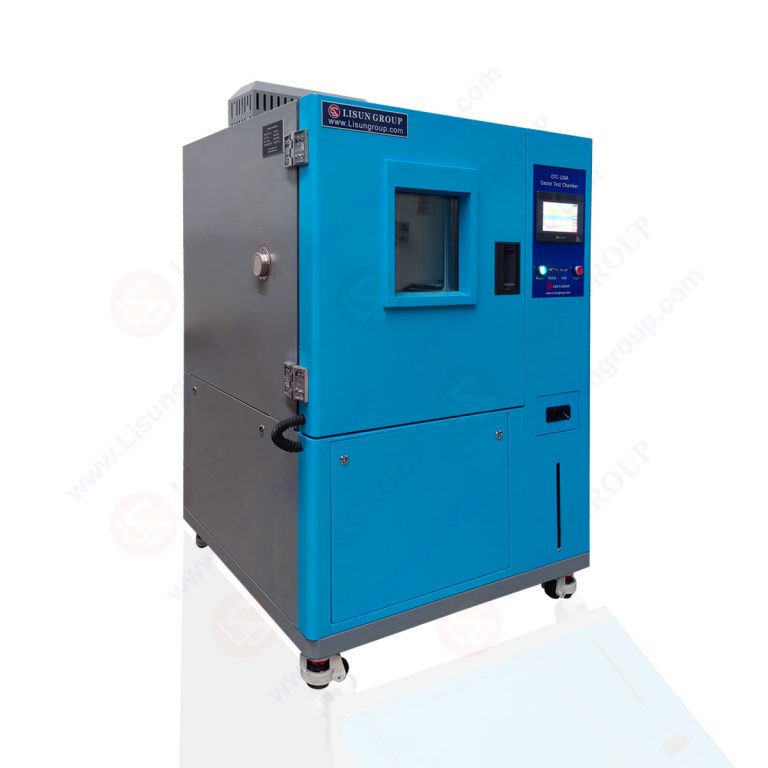

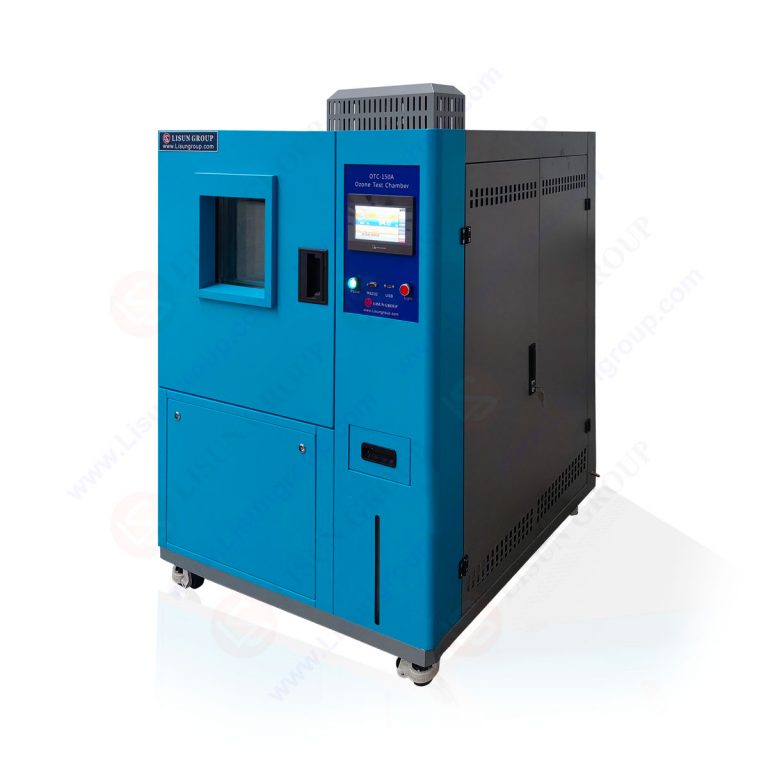

Product No: OTC-150A
The OTC-150A Ozone test chamber simulates the oxidative effect of ozone on materials in the natural environment. It generates ozone with a controllable concentration using a silent discharge tube, and combines with a precise temperature and humidity control system to replicate the aging process of materials in an ozone environment. Equipped with static/dynamic stretching functions, it can simulate the stress-bearing state of materials. Meanwhile, it monitors parameters such as ozone concentration, temperature and humidity in real time to ensure stable test conditions.
Widely used in fields including rubber, textiles and cables, it is applied to verify properties like ozone cracking resistance of automotive rubber seals, ozone color fastness of outdoor textiles, and ozone aging resistance of cable sheaths. It provides scientific data for material R&D and quality inspection, helps enterprises control the weather resistance of products, and effectively ensures the stable performance and safe service life of products during long-term use.
Reference Standards:
Standard No. | Standard Name |
AATCC 109-2016 | Colorfastness to Ozone in the Atmosphere under Low Humidities |
AATCC 129-2016 | Colorfastness to Ozone in the Atmosphere under High Humidities |
ISO 105-G03:1993 | Textiles; Tests for color fastness; Part G03: Color fastness to ozone in the atmosphere |
ISO 1431-1:2012 | Rubber, vulcanized or thermoplastic — Resistance to ozone cracking — Part 1: Static and dynamic strain testing |
ASTM D1149-2020 | Standard Test Methods for Rubber Deterioration – Ozone Aging |
ASTM D3041-1999 | Standard Practice for Testing Ozone Resistance of Rubber |
ASTM D3395-2014 | Standard Practice for Rubber – Deterioration – Dynamic Ozone Cracking Test |
ASTM D518-2016 | Standard Test Methods for Rubber – Resistance to Ozone Cracking |
ASTM D1171-2020 | Standard Test Method for Rubber Deterioration – Surface Ozone Cracking Outdoors or in an Ozone Chamber |
IEC 60811-403 | Electrical Cables – Test Methods for Non-Metallic Materials – Ozone Resistance Test |
DIN 53509-2:2001 | Testing of rubber – Resistance to ozone cracking – Part 2: Dynamic stress |
Note: Different standards have slightly different requirements for Ozone Test Chamber. We recommend that you confirm with LISUN engineers which standards each LISUN Ozone Test Chamber model meets, so that they can accurately match your testing needs.
Model List:
LISUN Model | Working Room Size (mm) | Working Power Supply |
OTC-150A | 500*500*600 | Single Phase 220-240V, 50/60Hz, 5kVA |
OTC-500A | 700*800*900 | Single Phase 220-240V, 50/60Hz, 6.5kVA |
Specification:
Parameter Category | Specific Parameter Items | Specification Details |
Ozone Concentration Control | Regulation Range | 10~1,000pphm |
Fluctuation Degree | 2~3pphm | |
Temperature Control | Regulation Range | 0℃~60℃ |
Fluctuation Degree | ±1℃ | |
Uniformity | 2℃ | |
Deviation | ±2℃ | |
Humidity Control | Regulation Range | 20%~90% RH(based on 20℃~40℃) |
Deviation | ±5%RH | |
Uniformity | 5%RH | |
Fluctuation Degree | ≤±3%RH | |
Specimen Testing Parameters | Specimen Holder Rotation Speed | 8~25mm/s |
Fixture Elongation Rate | 5~45% | |
Stretching Frequency | 0~30times /minute | |
Maximum Stretching Length | 0~90mm(adjustable) | |
Stretching Test Mode | A: Static Stretching Mode; B: Dynamic Stretching Mode; C: Intermittent Dynamic Stretching Test Mode | |
Gas Circulation | Gas Flow Velocity | 600±100mm/s(Forced Air Supply Circulation Mode) |
Control System and Data Management | Controller | Self-Developed Ozone-Specific Control System (7-Inch Touchscreen) |
Data Export Format | EXCEL(Supports Multiple Data Processing Requirements) | |
Data Export Methods | A: External USB Interface; | |
Environment and Safety | Noise | ≤75 decibel(Low-Noise Design) |
Equipment Operating Environment Temperature | 0~30℃ | |
Equipment Operating Relative Humidity | ≤85%RH | |
Equipment Operating Atmospheric Pressure | Normal Pressure |
System Configuration:
Component Category | Specific Component | Specification Details |
Ozone Generation System | Ozone Generator | Ozone is generated using a voltage silent discharge tube |
Sensing System | Ozone Detection Probe | Accuracy ≤ ±5% F.S, measuring range 10~1000 pphm, resolution 1 pphm |
Temperature Sensor | German Heraeus Class A PT100 sensor | |
Drive System | Air Speed Control Component | Brushless DC motor centrifugal fan |
Turntable Speed Control Component | Brushless DC motor control | |
Stretching Control Component | Servo motor control | |
Cabinet Structure | Inner Cabinet Material | 1.2mm SUS304 stainless steel (corrosion-resistant) |
Outer Cabinet Material | 1.2mm iron plate + powder coating baking paint | |
Sample Bearing System | Sample Holder & Fixture | Professional rotating frame and special sample fixture, made of SUS304 corrosion-resistant material |
Test Procedures:
• Sample Preparation: Cut samples in accordance with standards. Use the LISUN HSCD-860 Portable Spectrophotometer to test the color difference value, the LISUN AGM-500 Gloss Meter to test the gloss value, and the LISUN PULL-500KG Tensile Testing Machine to test the tensile strength. Record the data as the baseline.
• Equipment Inspection: Confirm that the ozone generator, sensors, and fixtures are connected properly. Calibrate the ozone concentration, temperature, and humidity parameters.
• Parameter Setting: Set the ozone concentration (e.g., 50 pphm), temperature (18-28℃), humidity (≤67% RH or 85-95% RH), and test duration. Select the static/dynamic stretching mode.
• Sample Installation: Fix static samples on the holder (with a spacing of ≥15mm); pre-stretch dynamic samples before clamping to ensure they are secured firmly.
• Equipment Startup: Close the chamber door. Start the ozone generator after the temperature and humidity stabilize, and begin timing once the parameters meet the standards within 30 minutes.
• Process Monitoring: Check the operating data regularly. For the dynamic mode, inspect the sample clamping condition and avoid opening the chamber midway.
• Test Conclusion: After the timing is completed, start the exhaust system for 30 minutes. Remove the samples when the ozone concentration drops to ≤0.1 ppm.
• Condition Adjustment: Place the samples in a standard environment (23℃±2℃, 50%±5% RH) for 4 hours.
• Performance Retesting: Use the LISUN HSCD-860 Portable Spectrophotometer, LISUN AGM-500 Gloss Meter, and LISUN PULL-500KG Tensile Testing Machine again to test the color difference value, gloss value, and tensile strength respectively. Track the aging changes and compare with the initial values to evaluate the aging degree.
• Result Evaluation: Calculate the aging indicators by comparing with the initial data, grade the results, generate a report, clean the equipment, and then shut it down.
