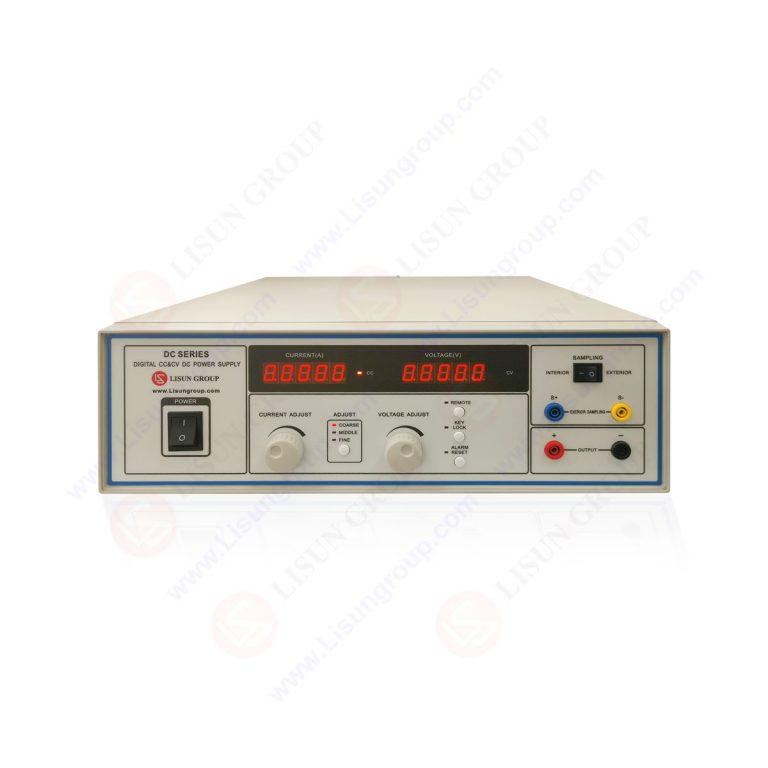

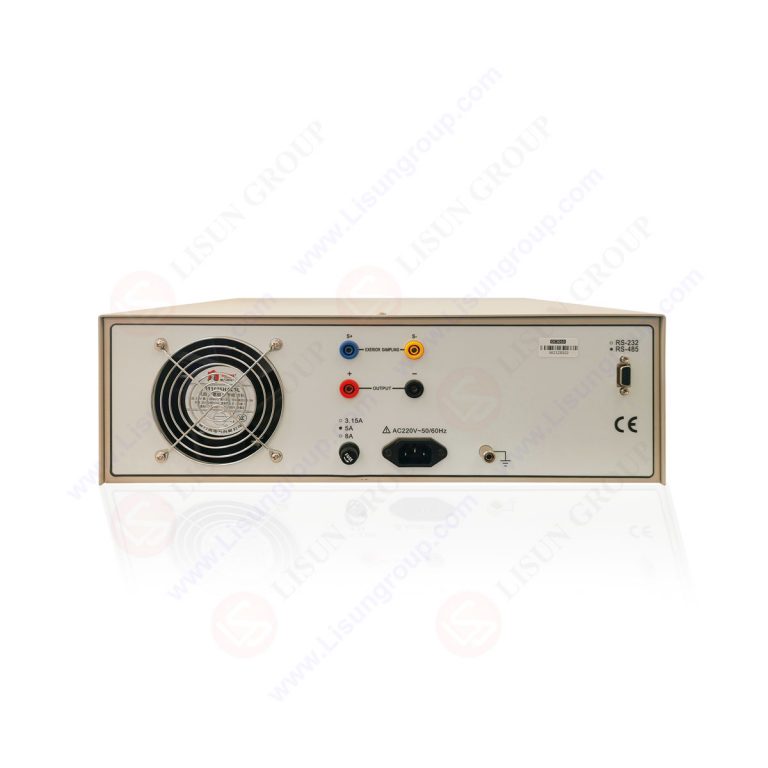

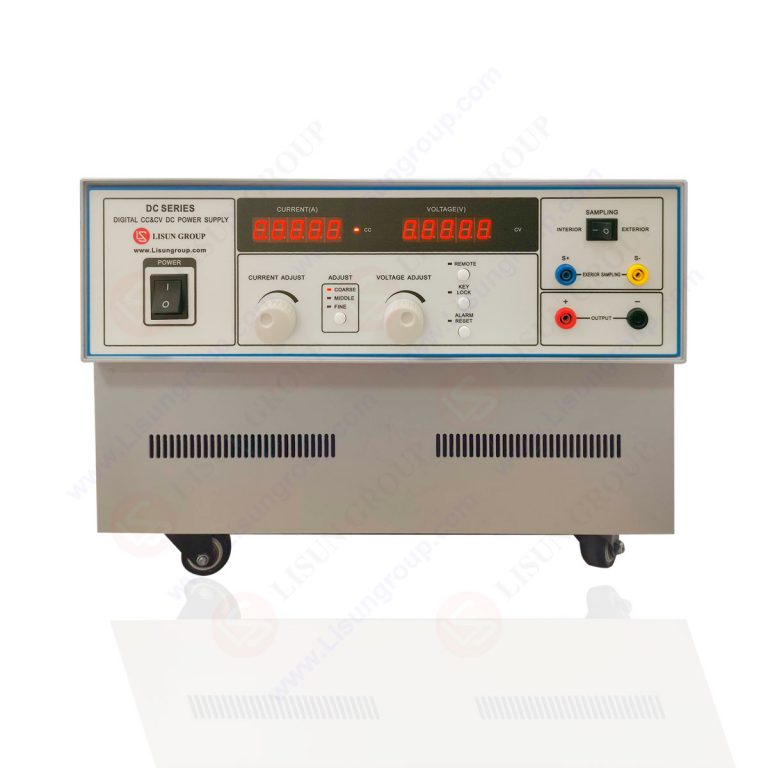

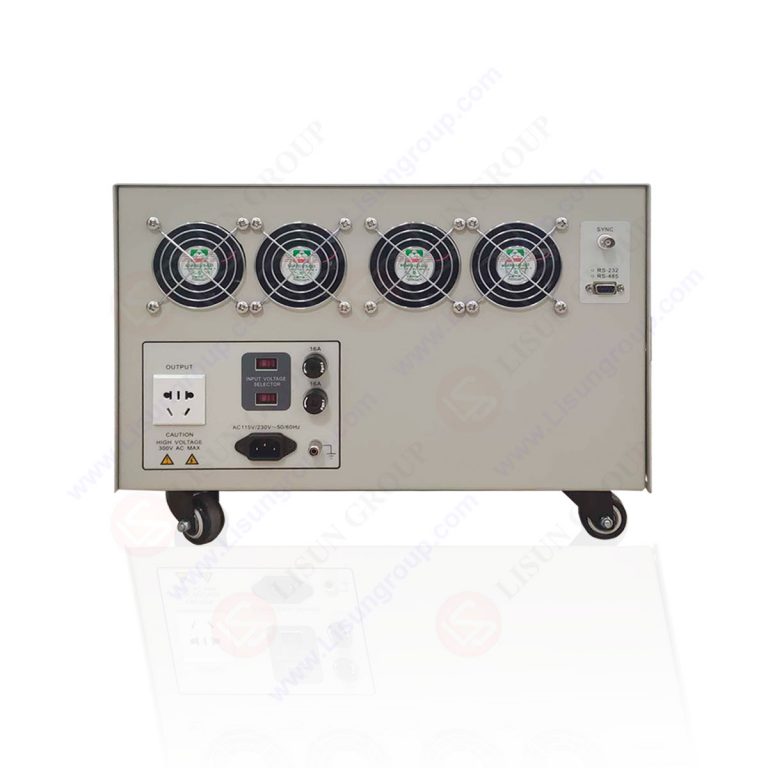

Digital CC and CV DC Power Supply (High Precision)

Product No: DC3005

  • Specifications
  • Downloads
  • Applications
  • Standards
  • Tech Articles

  • The DC Series Adjustable Digital Constant Current and Constant Voltage DC Power Supply is with high stability and high precision which can reach 0.0001A and 0.0001V. The voltage and current are adjustable, and it can output costant current (CC) or constant voltage (CV). It is suitable to supply DC Power for the standard lamps and other DC samples such as LEDs.

    Specification:

    LISUN Model DC3005 DC3010 DC6005 DC6010 DC12005 DC30005
    Max. Output Power 150VA 300VA 300VA 600VA 600VA 750VA
    Max. Output Voltage/Current 30V/5A 30V/10A 60V/5A 60V/10A 120V/5A 300V/2.5A, 150V/5A
    Voltage Resolution 0.0001V(0.0000V～10.000V); 0.001V(10.000V～100.00V); 0.01V(>100.00V)
    Voltage Accuracy ±(0.02% rdg＋0.01%rng＋1digital)
    Current Resolution 0.0001A
    Current Accuracy  ±(0.02%rdg＋0.01%rng＋1digital)<5A; ±(0.03%rdg＋0.02%rng＋1digital)≥5A
