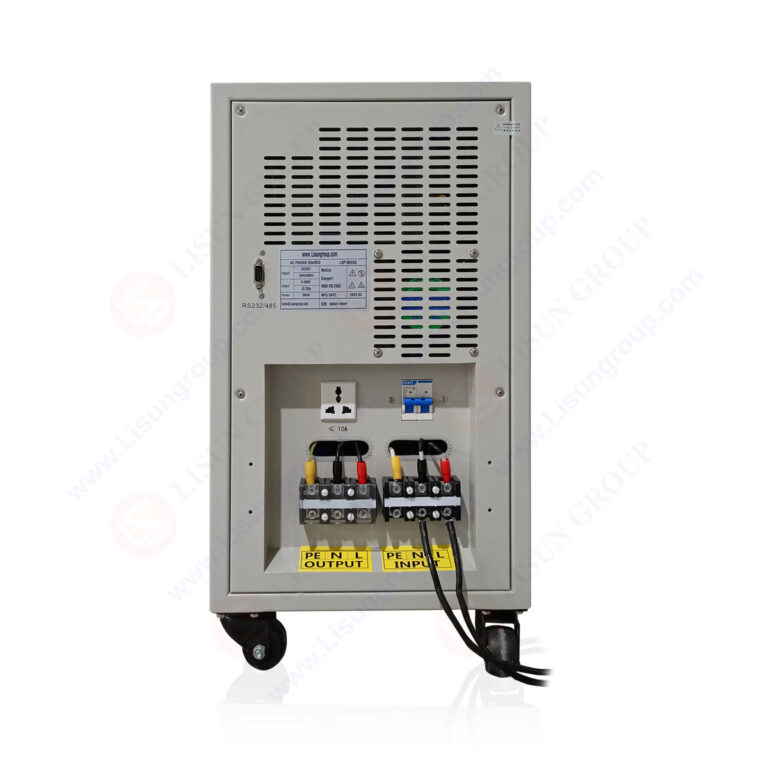

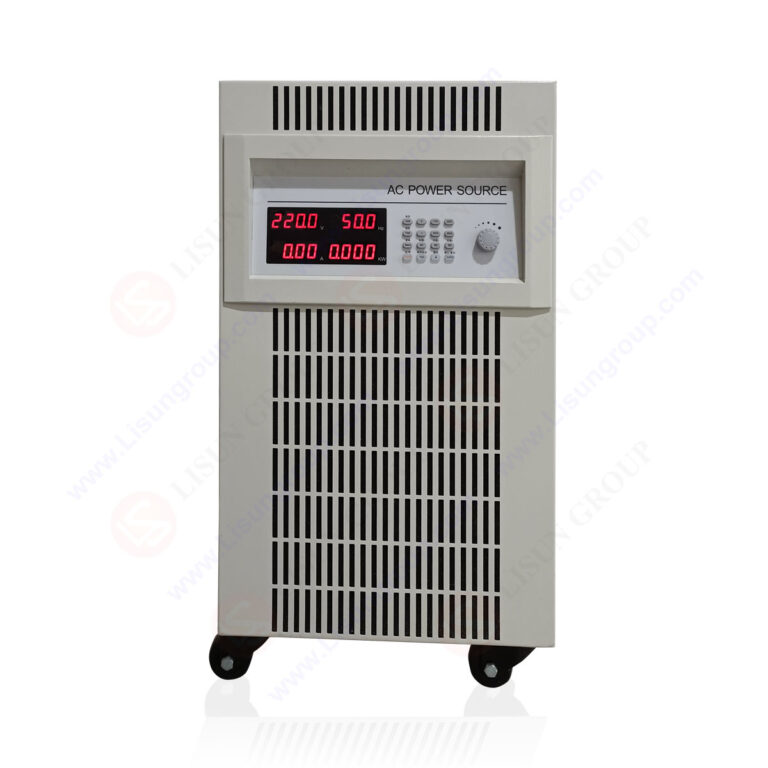

PWM Type AC Power Supply

Product No: LSP-5KVAS

Get a Quote

Your email address will not be published. Required fields are marked *

  • Description
  • Pulse Width Modulation PWM Type AC Power Supply specifications:

    • Circuit Type: (IGBT) MPWM Pulse Duration Modulation
    • Input: 1 Phase 220V±10%, 50Hz/60Hz±5%
    • Output Voltage: HIGH/LOW Adjustable
    1)1 Phase Voltage Range: (HIGH)0~300V, (LOW)0~150V
    2) Nominal Voltage: +10%~+25%, -10%~-30%
    • Output Frequency: 50Hz, 60Hz, adjustable between 45 and 70 Hz, 400Hz
    • Load Voltage Stabilization Rate: ≦0.5%
    • Frequency Stabilization Rate: 0. 1% (Fix Point 50Hz, 60Hz and 400Hz)
    • Wave Distortion Rate: ≦2% (Resistor Load); Efficiency: ≧85%
    • Output Instruments: Frequency Indicator, 4-digits RMS digital frequency indicator, resolution is  0.1Hz Voltage Meter, 4-              digits RMS digital voltage meter, resolution 0.1V Ampere Meter, 4-digist RMS digital ampere meter, resolution 1Ma Power            Indicator, 4-digits RMS digital power indicator, resolution 1W Power Factor Meter  Resolution 0.001
    • Protective Devices: Over load, short circuit, over voltage, over current, over temperature protective and alarm devices
    • Operating Environment: Temperature 0~40℃ Relative Humidity 0~90%

    Lisun Model Output Power Specification
    LSP-3KVAS 3000W 0~150V: 25A  150V~300V: 12.5A
    LSP-5KVAS 5000W 0~150V: 42A  150V~300V: 21A

    PS. More than 5KVA AC Power Source can be designed as customer’s request.
