Damped Oscillatory Magnetic Field Immunity Tester

Product No: DOMF61000-10

Leave a Message

=
  • Description

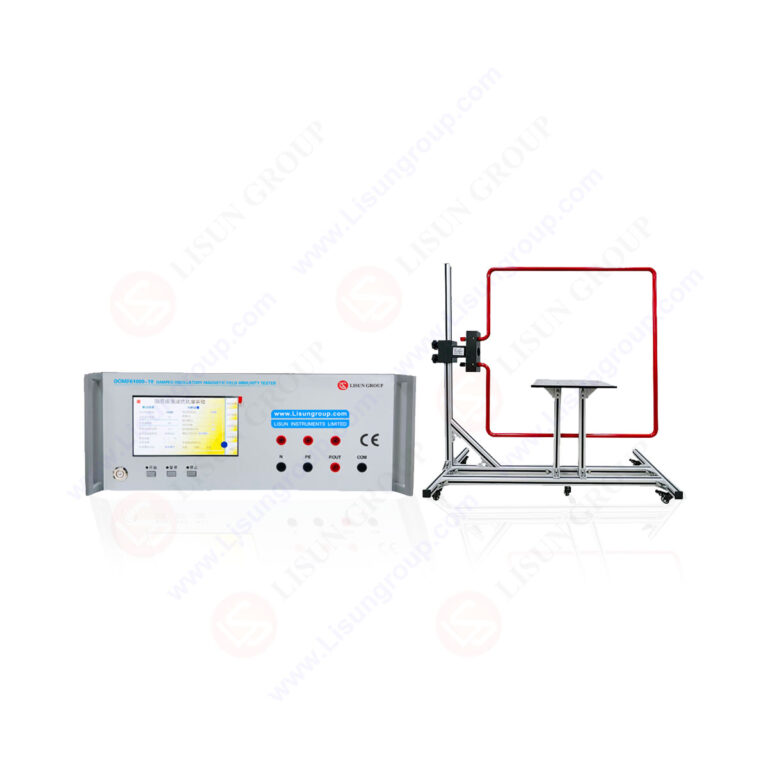

  • DOMF61000-10 damped oscillatory magnetic field immunity test system included damped oscillating wave generator and single ring coil, it’s designed for damping oscillation magnetic field immunity test.

    Standard:
    IEC 61000-4-10, EN61000-4-10/GB/T 17626.10 “Electromagnetic compatibility (EMC) – Part 4-10: Testing and measurement techniques; Damped oscillatory magnetic field immunity test; Amendment 1”
    IEC 255-22-1 “amortie 1 MHz Electrical relays – Part 22-1: Electrical disturbance tests for measuring relays and protection equipment – 1 MHz burst immunity tests”
    IEC 255-22-3 “Measuring relays and protection equipment – Part 22-3: Electrical disturbance tests – Radiated electromagnetic field immunity “
    ANSI C37.90 “Relays and Relay Systems Associated with Electric Power Apparatus “
    GB/T 14598.13 “Electrical disturbance tests for measuring relays and protection equipment Part 1: 1 MHz burst disturbance “

    Specification:
    • Application imported electronic switches, high performance and smooth waveform;
    • Fully meet newest standard about 4mm2 cross-sectional area of single ring coil;
    • Included Windows control software and operation, automatic generate test report;
    • Adopted with modular structure design, it is easy to do maintenance and upgrade;
    • Big colorful LCD touch screen, built-in IEC standard test levels;

    Magnetic Field Strength 0~100A/m
    Oscillation Frequency 100kHz, 1MHz
    Pulse Polarity Positive, Negative or Positive/Negative automatic
    Rise Time 75ns±20%
    Attenuation Attenuation to half value of first peak within fifth peak to tenth peak
    Repeat Frequency 1~80Hz(oscillation frequency: 100kHz)-Adjustable1~500Hz(oscillation frequency: 1MHz)-Adjustable
    Burst Width 1~9999s(Adjustable)
    Pulse Interval 1~9999s(Adjustable)
    Test Function Built-in IEC standard test levels; Set up voltage; Big LCD touch screen
