Product No: CSS61000-11

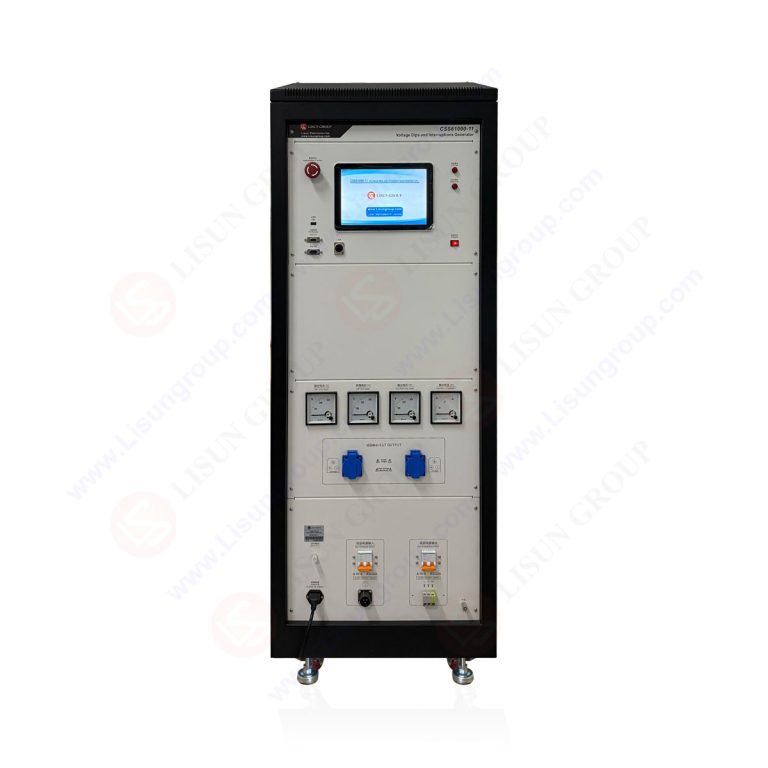

The CSS61000-11 Voltage Dips and Interruptions Generator | AC Voltage Dips Simulator is a high-precision device developed by LISUN specifically for voltage anomaly immunity testing of electrical and electronic products. Fully compliant with IEC/EN 61000-4-11:2021 and GB/T 17626.11-2023, its core function is to simulate common power grid abnormalities such as voltage dips, interruptions, and voltage variations, providing standardized testing conditions for evaluating product stability and reliability under power grid fluctuations. The device supports single-phase or three-phase output and precisely controls voltage dip amplitude, duration, and recovery time. It features a large Android touchscreen with Chinese and English, built-in GB and IEC test standard, and supports one-touch recall of preset parameters (such as a 50% voltage dip or a 100ms interruption). The dip amplitude, duration, and number of cycles can also be customized to meet individual testing needs.
Specification:
LISUN Model | CSS61000-11 | CSS61000-11T | CSS61000-11T-32A | CSS61000-11T-100A |
Wave Generator | AC Sine Wave | |||
Range of Voltage Variations | 0~110% | |||
Built-in IEC Level | 100%、80%、70%、40%、0% | |||
Dip Phase Set | 0°~360° (1° Step) | |||
Duration Time of Voltage Variation | 0.5~9999.5T | |||
Internal Time of Voltage Variation | 1~9999ms | |||
Voltage Dip Count | 0~9999 times | |||
Operating Mode | Automatic dip | Choose one to three phases to dip at the same time | ||
Trigger Mode | Manual, automatic and 50ms | |||
Power Capacity For EUT | Single phase AC 220V ± 10%, max. 16A | Three-phase AC 380V ± 10%, max. 20A/phase | Three-phase AC 380V ± 10%, max. 32A/phase | Three-phase AC 380V ± 10%, max. 100A/phase |
Working Power | AC220V (110V Optional) ±10%, 50/60Hz |
Typical Applications:
• Lighting Product Testing: According to IEC 60598-1:2024 and GB 7000.1-2023, grid voltage drops (e.g., a 50% drop lasting 100ms) are simulated to test the flickering and extinguishing behavior of LED lamps and ballasts during voltage fluctuations, verifying their ability to withstand voltage fluctuations and supporting 3C certification for lighting fixtures.
• Home Appliance Testing: For refrigerators, washing machines, air conditioners, and other home appliances, voltage interruptions are simulated (e.g., a 0% interruption lasting 500ms) to evaluate device restart performance and data retention capabilities, ensuring normal operation after a brief grid power outage and compliance with home appliance safety standards.
• Industrial Control Equipment Verification: Voltage variation tests (e.g., voltage increase from 80% to 110%) are performed on industrial equipment such as PLCs, inverters, and servo motors to verify the control accuracy of the equipment under grid voltage fluctuations and prevent downtime due to voltage anomalies during production. Power supply product testing: Tests the voltage drop immunity of switching power supplies, UPSs, and charging stations, simulating grid voltage drops (e.g., a 30% drop lasting 200ms) to verify power supply output stability and switching response speed, ensuring that downstream loads are not affected by voltage fluctuations.
• Medical electronic equipment testing: For medical devices such as monitors and ventilators, voltage interruption tests (e.g., a 0% interruption lasting 1s) are conducted according to the IEC 61000-4-11:2021 standard to evaluate the device’s backup power switching efficiency and critical data retention capabilities, ensuring medical safety.
• Third-party certification testing: Provides voltage drop testing services compliant with GB, IEC, and EN standards for electronic and electrical companies. We issue authoritative test reports, helping products obtain certifications such as the EU CE, US UL, and China CCC, enabling smooth entry into the global market.
LISUN CSS61000-11 Voltage Dips and Interruptions Generator were in the market for more than 10 years, LISUN engineers service team already summary the most of the After Sales Questions and Answers in the above link. Please read it carefuly, you can solve the most of the problems by yourself if you have some questions while using the instruments. LISUN will be continue to update this pages and more FAQ can be found in this topic link.
