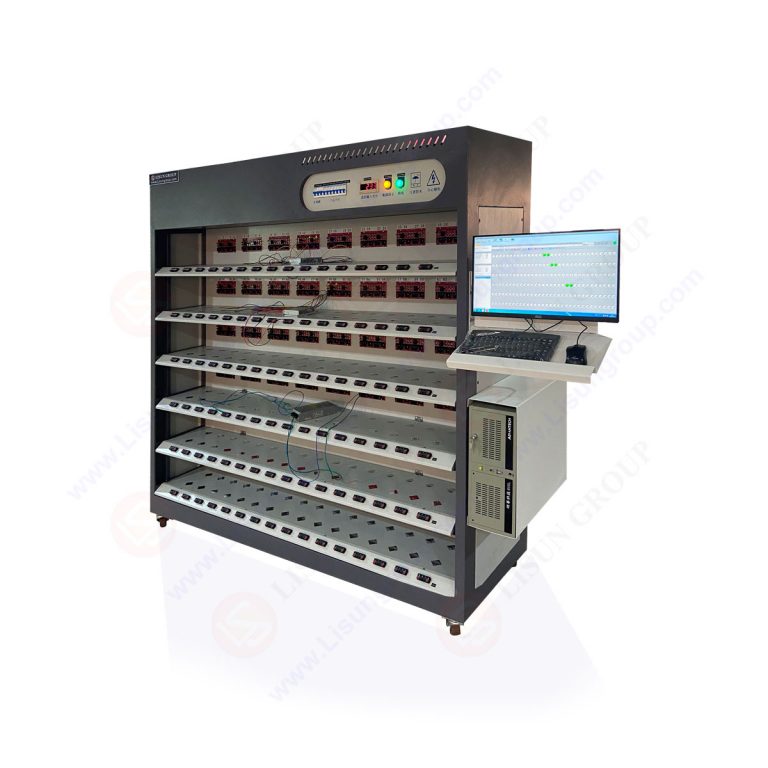

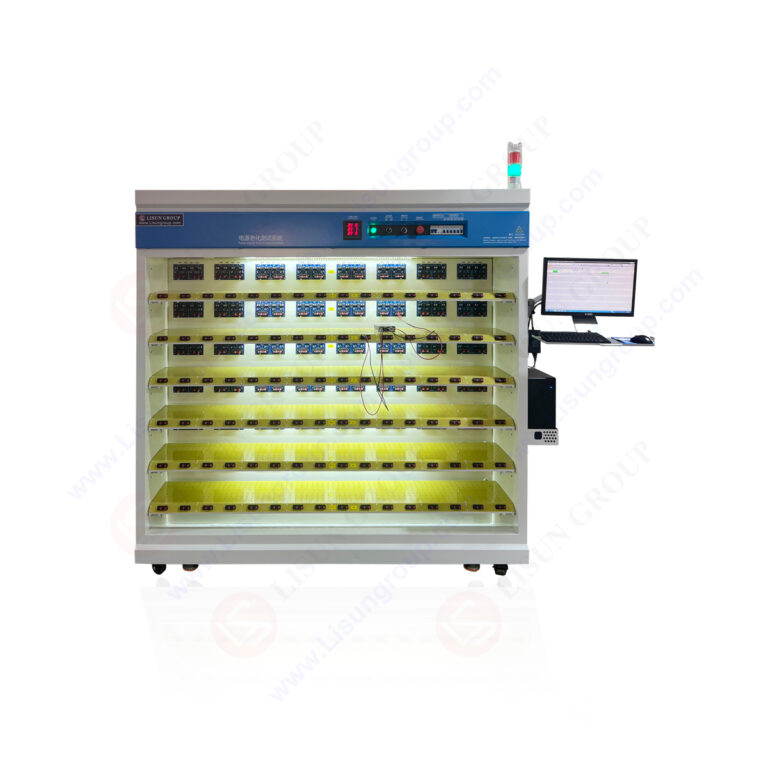

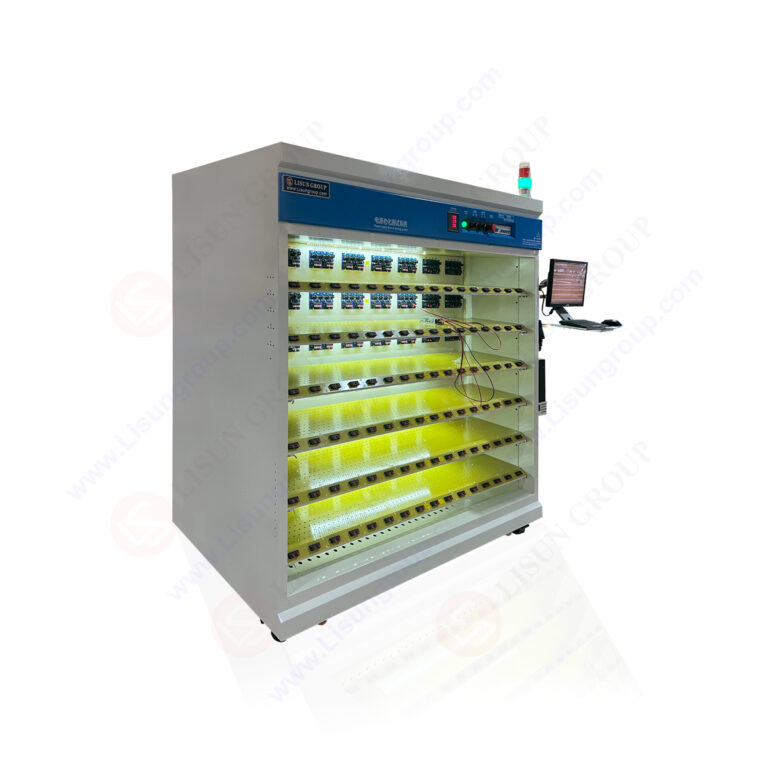

LED Driver Aging Test Rack

Product No: LEDRACK-100W192P

Get a Quote

Your email address will not be published. Required fields are marked *

  • Description
  • Video
  • Download
  • The LED Driver Aging Test Rack is applied to the production line for the finished products testing. With features of simplified operation and nice-looking, it can improve the workers’ work efficiency. This system can meet the requirements of IEC62384, GB24825-2009 and other relative standards.

    Configuration:
    The LED Driver Aging Rack includes three parts: LED Driver Aging Rack, Aging Control System includes PC & software, and LED Load Modules.

    Specification:
    • Application range: LED driver and multi channel driver power aging. It is equipped with computer and monitor system. The working condition can be set on the computer software, and the software will record all the real time data to do the statistical analysis.
    • The parameters of load can be set freely on the software. The monitor shows the real time voltage, current, and power etc
    • Load mode: CC, CV, CR, CP, and LED
    • Aging control system includes: ON/OFF control signal output; signal of relay switch control; K type thermocouple temperature acquisition
    • The channels are parallel connected under arbitrary load mode, which can allow product power expansion
    • Automatic current switching function (optional)
    • AC power meter to measure modules, and test power input characteristics (optional)
    • Temperature monitoring function at product zone (optional)
    • PWM dimming and two sets of logic control signal function (optional)
    • The LED Driver Aging rack can also be designed according to customer’s LED driver power and other requirement

  • LED Driver Aging Test Rack

    vedio
  • LEDRACK-100W192P LED Driver Aging Rack Brochure
