23 Jun, 2017 347 Views

LISUN New Product! – LED Power Driver Aging Rack According to IEC62384

The quality of LED driver will influence the life of LED lamp directly. Therefore, we need to control the quality of LED driver strictly. According to IEC62384-2011 and GB/T 24825-2009 DC OR AC SUPPLIED ELECTRONIC CONTROL GEAR FOR LED MODULES – PERFORMANCE REQUIREMENTS.

The control gear shall be subjected to a temperature cycling shock test and a supply voltage switching test as follows:
a. Temperature cycling shock test
The non-energised control gear shall be shored firstly at -10C or if the control gear is marked with a lower value, at that value for 1h. The control gear is then moved into a cabinet having a temperature of Tc and stored for 1h. Five such temperature cycles shall be carried out.
b. Supply voltage switching test
At rated supply voltage the control gear shall be switched on and off for 30s. The cycling shall be repeated 200 times with no load and 800 times with maximum load conditions.

LED modules failing during this test shall be replaced immediately. At the end of these tests the control gear shall operate an appropriate LED module or LED modules correctly for 15 min.

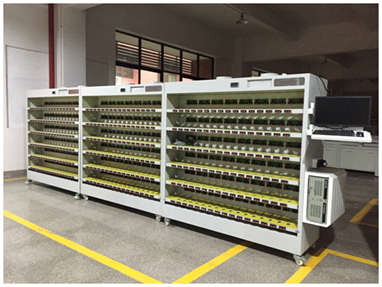

Many LED driver manufacturers encounter the problems of LED driver failure. Lisun designs the LEDRACK-100W192P LED Driver Aging Rack, which is according to IEC62384: 2011 and GB/T 24825-2009. It is used for LED driver finished product line test, which can help enterprises to filter out the defective driver.

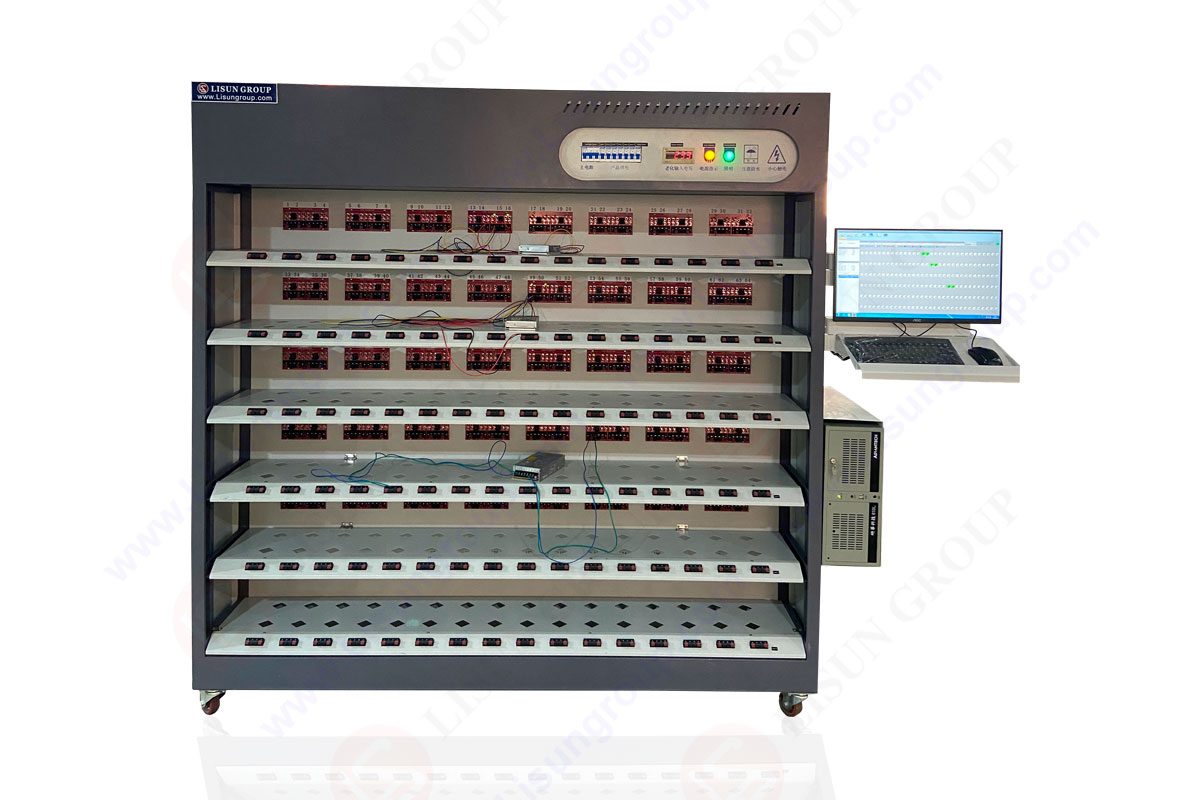

LISUN New Product! – LED Power Driver Aging Rack

LEDRACK-100W192P LED Aging Rack

The LED Driver Aging Rack includes three parts: LED Driver Aging Rack, Aging Control System (includes PC & software) and LED Load Module. The specification is as following.

  • Application range: LED driver and multi channel driver power aging. It has equipped with computer operation and monitor system. The working condition can be set by the computer, and the computer will record real time data to do statistical analysis.
  • The parameters of load can be set freely on the software, to monitor the real time voltage, current, and power etc
  • Load mode: CC, CV, CR, CP, and LED
  • The channels are parallel connected under arbitrary load mode, which can allow product power expansion
  • Aging Control System includes: ON/OFF control signal output; Signal of relay switch control; K type thermocouple temperature acquisition
  • Automatic current switching function (optional)
  • AC power meter to measure modules, and test power input characteristics (optional)
  • Temperature monitoring function at product zone (optional)
  • PWM dimming and two sets of logic control signal function (optional)
  • The LED Driver Aging rack will design according to customer’s LED driver power and aging quantity per time

Welcome to contact us for more details.
