6 Position Plug Socket Switch Life Tester

Product No: CZKS-6

Leave a Message

=
  • Description
  • Video

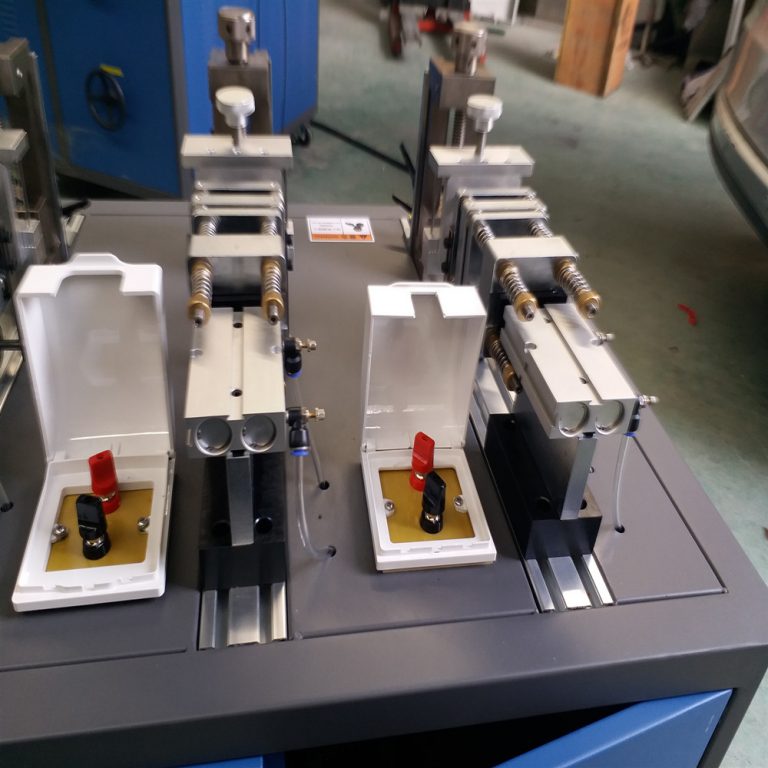

  • CZKS-6 6 Position Plug Socket Switch Life Tester is according to the IEC 60884-1 Clause 20 and 21 (GB/T2099.1 Clause 20 and 21), IEC 60669-1 Clause 18 and 19 (GB/T16915.1 Clause 18 and 19), IEC 61058-1 Cluase 17 (GB/T15092.1Cluase 17) standard to design and manufacture.  It is suitable for the breaking capacity and normal operation life test of Plugs and socket-outlets for household and similar purposes. It is also applicable to switches for household and similar fixed electrical installations for making and breaking capacity, normal operation and endurance tests. The purpose is to evaluate whether the plug socket and switch can withstand mechanical damage and electrical fatigue destruction in normal operation, and whether there is any contact adhesion or long -term closed or disconnecting phenomenon. Checking whether it has excessive wear and other harmful consequences is a special equipment for the endurance test of plug sockets and switching electrical durability.

    IEC 60884-1 Figure 22

    IEC 60884-1 Figure 23

    Figure 16 Diagram for endurance test

    Specifications:

    LISUN Model CZKS-6 CZKS-6P CZKS-6S CZKS-6X
    Working Station 3 plug socket +3 switch 6 plug socket 6 switch Customized quantity socket+switch

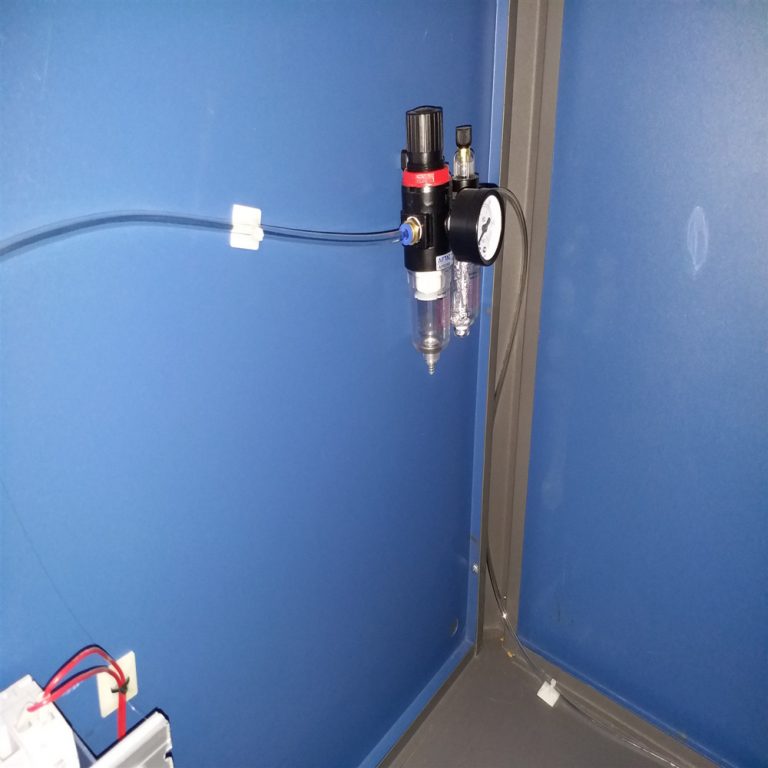

    Drive Method Cylinder driver, gass should prepare by customer:4~6kg/cm2
    Control Method PLC+oversized touch screen
    Connect/disconnect time 0 ~ 99.9s/min (adjustable)
    Test time 0 ~ 999,999 times (preset)
    Test itinerary Linear: -40 ~ 110mm (preset); Rotation: 0 ~ 360 ° (preset)
    Test rate Linear: 0 ~ 100mm/s (preset); rotation: 0 ~ 90 °/s (preset)
    Sample fixture Standard universal fixture, which can be adjusted up and down (other specials can be customized according to customer requirements)

    According to the corresponding standard requirements, the CZKS-6 6 Position Plug Socket Switch Life Tester is equipped with the corresponding load cabinet, which can be used as a life test of plug-in sockets, buttons, switching switches, corset switches, push switching switches, rotating switches (can be customized):
    Typical application 1: CZKS-6 with DFX-20 Externally Ballasted Fluorescent Lamp Test Load Cabinet (6 sets or 2 sets of DFX-20-3CH, can also be selected with 40A or 60A), you can perform the plug-in socket breaking capacity and normal operation test, which fully meets IEC 60884-1 Clause20 and 21 (GB/T2099.1 Clause20 and 21) test requirement.

    IEC 60884-1 Clause 20 Breaking capacity

    IEC 60884-1 Clause 21 Normal operation

    Typical application 2: CZKS-6 with DFX-20 Externally Ballasted Fluorescent Lamp Test Load Cabinet (6 sets or 2 sets of DFX-20-3ch, can also be used with 40A or 60A), which can perform the endurance test of the normal operation of the switch, which fully meets the IEC 60669-1 Clause 19.1 and 19.2 (GB/ T16915.1 Clause 19.1 and 19.2) test requirement.

    IEC 60669-1 Clause 19.1 Normal operation

    IEC 60669-1 Clause 19.2

    Typical application 3: CZKS-6 with SBLL-3P20A Test for Switches Intended for Self-ballasted Loads (2 sets), which can perform the endurance test of the normal operation  of the switch, which is fully meet the IEC 60669-1 Clause 19.2 (GB/T16915.1 Clause19.3) test requirement.

    IEC 60669-1 Clause 19.2

    Typical application 4: CZKS-6 with DFX-WD20A Tungsten/Halogen Lamp Load Cabinet (6 sets), which can perform the durability life test of the switching ability. It is fully meets the IEC 60669-1  Clause 18(GB/T16915.1 Clause 18) requirements.

    IEC 60669-1 Clause 18 Making and breaking capacity
