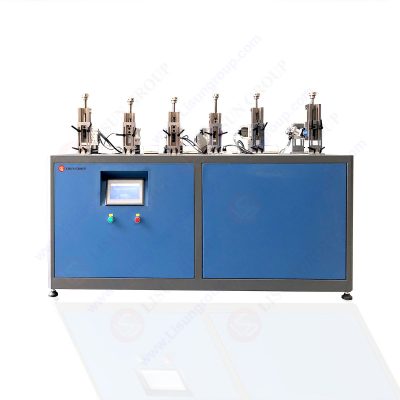

How does plug socket switch life tester enhance the life of sockets

Socket Tester
A socket tester is a portable electrical gadget used to quickly determine whether wall sockets are properly wired and functioning properly. They are hooked into a power outlet directly or through an attached plug connected by a lead.
Once installed, most versions employ three LEDs on the rear of the device as its signaling method.

These will be illuminated in various combinations, generally in conjunction with tones or alert sounds, in response to the level of alternating current (AC) and voltage – or lack thereof – coming through the socket from the mains. Socket testers are intended to detect typical wiring difficulties such as neutral and earth wiring errors. A neutral wire links an electrical circuit back to its source, whereas an earth wire discharges surplus current and reduces the risk of electrocution or circuit damage by running from an electrical device into the ground. The latter is also referred to as a ground or ground wire.

The neutral and ground wires can be examined at the same time. Different socket tester devices provide further capabilities such as fuse and fault location or electrical polarity testing. The arrangement of positive and negative poles in an electrical circuit is known as polarity. Because alternating current is switched back and forth numerous times per second, polarity is significant. Tracking and recognizing polarity is critical for ensuring that circuits and the equipment in which they are housed function properly.
Socket testers are standard equipment in the toolboxes of electricians, as well as installation and maintenance specialists.

Socket testers go by a variety of names, including:
• Mains polarity tester plugs
• Plug-in socket testers
• Receptacle testers
• Mains testers
• Socket checkers
• Plug-in mains testers
• Electrical outlet testers

They may also be referred to as PAT testers. However, the Health and Safety Executive defines portable appliance testing as a broad category of electrical appliance testing.

Socket Testers: How Do They Work?
So, how exactly do mains socket testers function? A microprocessor is coupled to a conductor circuit in these electrical devices. After inserting the plug socket tester, the processor will analyze the flow of current – the continuity – as well as the polarity of the connections with which it comes into touch. Testers examine each contact in the socket to ensure that it is connected to the correct wire. They will then display any types of wiring faults discovered using a pre-programmed series of LEDs and tones.

Basic socket testers are intended to be simple first-line of defense devices; however, they are incapable of detecting several potentially significant wiring issues. Some instances include earth neutral reverse, which occurs when the earth and neutral wires are accidentally switched, and overall electrical resistance or impedance in a circuit. These necessitate the use of more complicated versions or different testing equipment, such as a multimeter.

Socket Tester Types
There are numerous designs to choose from. Most models employ LEDs, but some also include front-panel screens. Although three-pin plug socket testers are the most common, four and five-pin variants are also available. Most have audio alarms, but simpler, sound-free models are available.

Socket testers are classified into three types based on their features
Socket Testers for Beginners
A variety of wiring fault states in power outlet sockets can be detected using standard socket testers. They are typically the same size as a 13-amp plug.

Complex socket testers
They provide more advanced testing features, such as earth fault loop impedance measurements, which indicate the amount of resistance faced by defective current flowing to the earth wire and terminal.

Professional Socket Testers
These include tests of the highest caliber, such as advanced earth loop impedance readings. All socket testers will indicate the lack of an Earth. This distinction is important because many simple socket testers on the market have been found to display a healthy earth even when the impedance is as high as 500k. Because 0.5M (500 k) is commonly considered a good insulation level, the “protective” earth will not provide protection in this circumstance.

Earth loops
To ensure that overcurrent protection devices disconnect quickly enough to avoid electrocution, an accurate earth loop impedance measurement is necessary. In the event of an earth fault, loop impedance values must be less than those established in BS7671 Wiring Regulations Amendment 3:2015. Because earth loop values more than a few ohms might cause problems with disconnection times, socket testers capable of reporting earth loop impedance values in this range disclose a lot more about the installation’s electrical safety than just an LED failure indicator.

Testing and Verification, 18th Edition
It is critical to understand that socket testers are not a substitute for thorough wiring installation inspection. However, when used appropriately, socket testers provide a quick and effective option for identifying potentially risky installations and wiring issues.
They can also be very useful as a servicing tool for spotting potentially dangerous problems before working on existing installations and appliances. See the application notes for more information on the use of socket testers, including their benefits and limits.

Amperage
The ampere (abbreviated as an amp) is the internationally recognized unit of electrical current. A higher amperage signifies a higher amount of electrical charge. Polarity tester plugs are available in a variety of current ratings, which indicate the amperage range within which they are meant to operate safely. These include the normal 13a and 16-amp ratings, as well as the following:
• 11 amps
• 32 amps
• 63 amps

Voltage
Voltage reflects the strength or pressure of a current, whereas amps quantify the volume of electrons. Different plug checker models are designed to work in a variety of voltage ranges. These are:
• 110V
• 230V
• 240V
• 400V

Socket Tester Operation
Socket testers are compact, simple gadgets that fit easily into a pocket. They do not require extensive expertise to use, but knowledge of electrical wiring fundamentals is advantageous.

How to Test Sockets for Power and Wiring Issues
1. Turn off the power.
2. Unplug any other plugs or gadgets from the power outlet.
3. Insert the socket tester.
4. Restart the computer and wait for the results.

If all three LEDs light up, no defects have been found. Models from various manufacturers will display defects by illuminating the LEDs in specific sequences or colors, sometimes in conjunction with a warning sound. Basic electric plug testers identify a limited number of electrical defects that are routinely encountered. These are some examples:

Neutral Reverse Live
Electricians use the term “live neutral reverse” to describe when the neutral wire in a socket is connected to the terminal meant for the live or hot wire. This is a safety hazard because the socket cannot be properly switched off. Even when it is ostensibly turned off, it remains live, with electricity flowing.

Live Earth Reverse
This term refers to connecting the live and earth wires in a socket to the terminals meant for the opposite. This is risky since exposed elements of the apparatus will be live, potentially resulting in a lethal electric shock.

Missing or No Earth
The ground wire, which is meant to safely discharge excess current, is not connected to the appropriate terminal.

Missing or Neutral Fault
The neutral wire is the conductor that completes a circuit and returns to the starting point. Most socket testers will indicate whether this is not connected, is connected incorrectly, is not in contact with ground, or if there is another defect.
This reading suggests a problem with the live or hot wire. It could be damaged or improperly wired, for example. The letter P is occasionally used to represent the live wire (power).

On the back of the device, you will discover a key to the readings. Some types will also identify where a problem is located on the live, neutral, or earth wires. Testing the power and wiring of electrical outlets is an important safety practice that should be done on a regular basis to detect any emerging issues. Socket testing is a quick and easy operation that does not require any technical knowledge if you have the correct tools. Electrical maintenance, on the other hand, is a specialized work that should only be performed by fully qualified electricians or technicians. Several renowned electrical equipment manufacturers produce high-quality socket testers.

Which Socket Tester Is Right for You?
The ideal socket tester for you will be determined by the electrical sockets you need to check on a regular basis and the kind of tests you need to perform. Examine your socket tester needs. Are you an electrician who requires all metrics? An engineer in charge of electrical equipment? Or is it merely someone concerned with the safety of specific sockets?

FAQs
How does a plug-in socket tester function?
A socket tester is a portable electrical gadget used to quickly determine whether wall sockets are properly wired and functioning properly. They are hooked into a power outlet directly or through an attached plug connected by a lead.

How can you tell if a socket is live?
You can also place the red probe into the live terminal while holding the black metal probe to the earth terminal. If the outlet is properly grounded, the multimeter reading should be around 230, give or take. Only the live terminal should display a reading in a properly functioning outlet.

Are plug-in socket testers dependable?
It is critical to understand that socket testers are not a substitute for thorough wiring installation inspection. When used appropriately, socket testers provide a quick and effective option for identifying potentially harmful installations and wiring issues.
