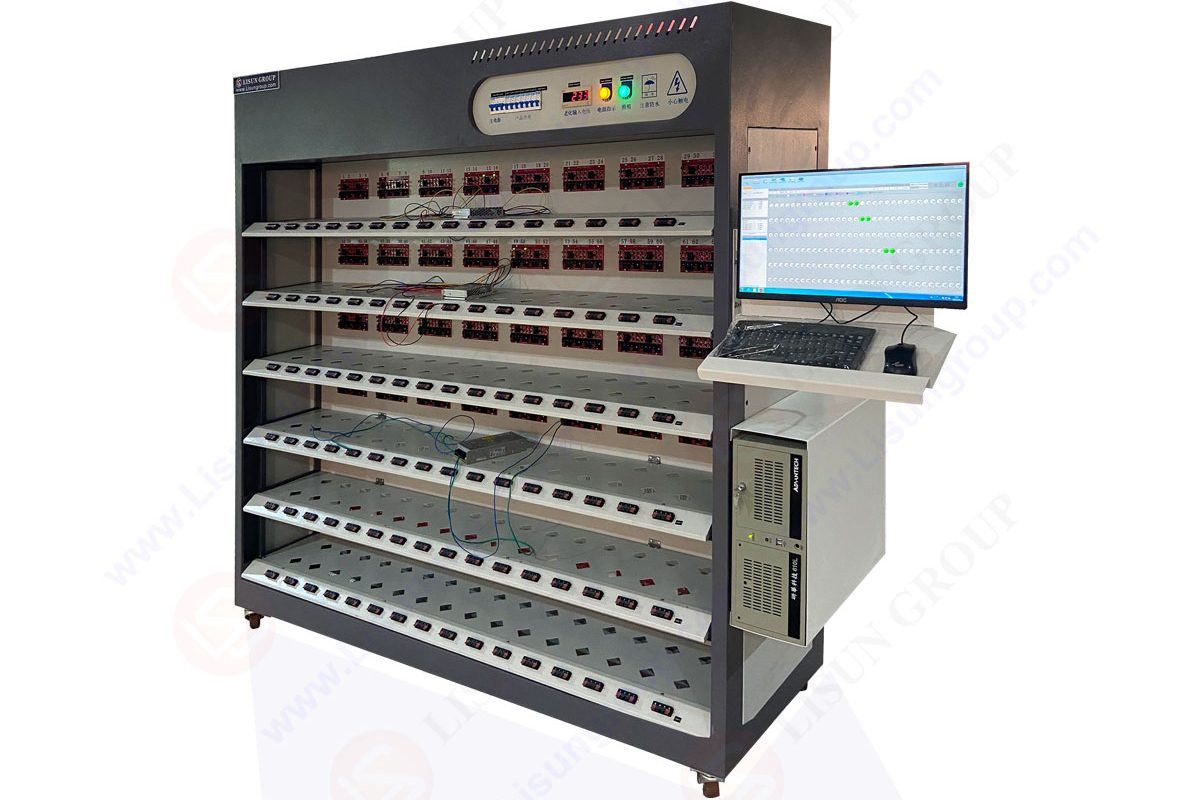

LED Driver Production Line Aging Test Rack: A Comprehensive Study on LISUN LEDRACK-100W192P

Abstract
This paper delves into the critical role of LED driver production line aging test racks in ensuring the reliability and quality of LED drivers. Focusing on the LISUN LEDRACK-100W192P model, the study examines its technical specifications, operational principles, compliance with international standards, and practical applications in production lines. The aging test rack emerges as an indispensable tool for enhancing production efficiency and product quality, with its advanced features and flexible configuration addressing the diverse needs of modern LED driver manufacturing.

1. Introduction
The rapid growth of the LED lighting industry has driven the demand for high – reliability LED drivers. As the core component of LED lighting systems, the performance and stability of LED drivers directly affect the lifespan and safety of the entire lighting product. In the production process, aging testing is a crucial quality control link, and the LED driver production line aging test rack has become an essential equipment to ensure the reliability of LED drivers.

LISUN LEDRACK-100W192P LED Driver Aging Test Rack, with its years of market application and continuous improvement, has become a representative product in the field. This article aims to provide a comprehensive analysis of this aging test rack, exploring its technical characteristics, application scenarios, and the value it brings to production lines.

2. The Significance of LED Driver Aging Testing
Aging testing is a process of subjecting products to specific environmental conditions and load conditions for a certain period to simulate the long – term working status of products in actual use. For LED drivers, aging testing can:
• Discover potential defects and vulnerabilities in the early stage of production.
• Ensure that the product meets the design requirements and performance indicators.
• Improve the overall reliability and service life of the product.
• Reduce the failure rate of products in the field and the subsequent maintenance costs.

In the production line, the application of an efficient aging test rack can significantly improve the pass rate of products and enhance the competitiveness of enterprises in the market.

3. Technical Specifications of LISUN LEDRACK-100W192P LED Driver Production Line Aging Test Rack

3.1 Basic Parameters

Parameter	Description
Product No.	LEDRACK – 100W192P
Application Range	LED driver and multi – channel driver power aging
Load Mode	CC (Constant Current), CV (Constant Voltage), CR (Constant Resistance), CP (Constant Power), and LED mode
Temperature Setting Range	RT + 10℃ ~ 60℃
Channel Configuration	Channels are parallel connected under arbitrary load mode, allowing product power expansion
Control System	Equipped with computer and monitor; working conditions can be set on the computer software, which records all real – time data for statistical analysis
Parameter Display	The monitor shows real – time voltage, current, power, etc.

3.2 System Configuration

The LED Driver Aging Rack includes three main parts:
• LED Driver Aging Rack: The physical framework that provides the installation and placement space for the LED drivers to be tested.
• Aging Control System: Comprises a PC and specialized software, which is the core of the system for controlling the aging process and data management.
• LED Load Modules: Simulate the actual load conditions of LED drivers during operation.
• Temperature Control System: Maintains the specified temperature environment for the aging test.

3.3 Compliance with International Standards

The LISUN LEDRACK-100W192P complies with the following important standards:
• IEC 62384:2006: “DC or AC supplied electronic control gear for LED modules – Performance requirements”, which sets out the performance requirements for electronic control gear for LED modules.
• GB/T 24825 – 2009: The Chinese national standard corresponding to IEC 62384, ensuring that the product meets the domestic market requirements.

Compliance with these standards ensures that the aging test results are authoritative and recognized in both domestic and international markets, providing a solid foundation for the quality assurance of LED drivers.

4. Working Principles of the LED Driver Production Line Aging Test Rack

4.1 Overall System Architecture

The aging test rack system works based on a closed – loop control principle. The control system sends control signals to the aging rack and load modules, and at the same time, collects real – time data from the tested LED drivers and the environment through various sensors. The collected data is transmitted to the PC, where the software performs real – time monitoring, analysis, and recording.

4.2 Load Simulation Principle

In different load modes (CC, CV, CR, CP, LED), the load modules adjust the load parameters according to the settings of the control software. For example:
• In CC mode, the load module maintains a constant current output to test the ability of the LED driver to stabilize the current under different voltage conditions.
• In CV mode, it ensures a constant voltage output to evaluate the driver’s voltage regulation performance.

This flexible load simulation capability allows the aging test rack to meet the testing needs of various types of LED drivers with different specifications and requirements.

4.3 Temperature Control Principle

The temperature control system uses a K – type thermocouple for temperature acquisition. The thermocouple senses the temperature inside the aging rack and transmits the temperature signal to the control system. The control system compares the actual temperature with the set temperature and adjusts the heating or cooling equipment in real time to maintain the temperature within the specified range (RT + 10℃ ~ 60℃). This precise temperature control is crucial for simulating the actual working environment of LED drivers and ensuring the accuracy of the aging test.

4.4 Data Acquisition and Analysis Principle

The aging control system is equipped with a powerful data acquisition and analysis function. It can collect various parameters of the LED drivers during the aging process, such as voltage, current, power, and temperature, in real time. The software processes these data, generates trend charts and statistical reports, and helps engineers analyze the performance changes of the LED drivers over time. This data – driven approach enables timely detection of potential problems and provides a basis for product improvement and quality control.

5. Application Scenarios and Advantages in the Production Line

5.1 Application in Mass Production Lines

In large – scale LED driver production lines, the LISUN LEDRACK-100W192P can efficiently test a large number of LED drivers in batches. Its parallel channel design (192 channels) allows multiple products to be tested simultaneously, greatly improving production efficiency. The simplified operation interface and automated testing process reduce the labor intensity of workers and minimize human error, making it an ideal choice for mass production quality control.

5.2 Advantages in Improving Production Efficiency

• Simplified Operation: The user – friendly software and intuitive control interface make it easy for workers to operate, even without extensive technical training.
• High – speed Testing: The ability to test multiple channels simultaneously shortens the testing cycle and increases the output of the production line.
• Real – time Monitoring: The monitor displays real – time data, allowing workers to quickly identify and handle abnormal conditions, reducing production downtime.

5.3 Quality Assurance and Cost Reduction

By conducting comprehensive aging testing on LED drivers before leaving the factory, the aging test rack can effectively screen out defective products and prevent them from entering the market. This not only improves the overall quality of the product but also reduces the after – sales service costs and reputation losses caused by product failures. The accurate data recording and analysis function also help manufacturers identify the root causes of quality problems and take targeted improvement measures, continuously optimizing the product design and production process.

5.4 Customization to Meet Diverse Needs

The LISUN LEDRACK-100W192P can be designed according to the specific power and other requirements of the customer’s LED driver. This customization feature makes it highly adaptable to different production lines and product types, providing flexible solutions for manufacturers with diverse needs. Whether it is a small – batch production of special – purpose LED drivers or a large – scale production of standard products, the aging test rack can be adjusted to meet the testing requirements, demonstrating strong versatility and economic efficiency.

6. After – sales Service and Technical Support
LISUN has a professional engineering service team that has accumulated more than 10 years of experience in the market. They have summarized the most common after – sales questions and answers for the LEDRACK-100W192P LED Driver Aging Test Rack, which can be found in the dedicated FAQ section. This comprehensive after – sales support ensures that customers can quickly solve problems encountered during use, minimizing production interruptions. LISUN also continues to update the FAQ pages, reflecting its commitment to continuous improvement and customer satisfaction.

The after – sales service includes:
• Technical consultation and guidance on product installation and operation.
• Timely response and solution to equipment failures.
• Software updates and maintenance to ensure the system remains up – to – date.
• Training programs for customer staff to improve their operational proficiency.

This strong after – sales support system further enhances the reliability and usability of the LED driver production line aging test rack, making it a trustworthy choice for manufacturers.

7. Conclusion
The LED driver production line aging test rack, represented by the LISUN LEDRACK-100W192P, plays a vital role in the quality control of LED driver production. Its advanced technical specifications, flexible configuration, and compliance with international standards make it an effective tool for ensuring the reliability and performance of LED drivers. By simulating various working conditions and conducting comprehensive aging tests, the aging test rack helps manufacturers improve production efficiency, reduce costs, and enhance product quality.

In the context of the continuous development of the LED lighting industry, the demand for high – quality LED drivers will continue to grow. The LED driver production line aging test rack, with its ability to adapt to diverse production needs and provide strong technical support, will undoubtedly play an increasingly important role in the future. Manufacturers who invest in advanced aging test equipment like the LISUN LEDRACK-100W192P will be better positioned to gain a competitive edge in the market and meet the ever – increasing quality requirements of customers.
