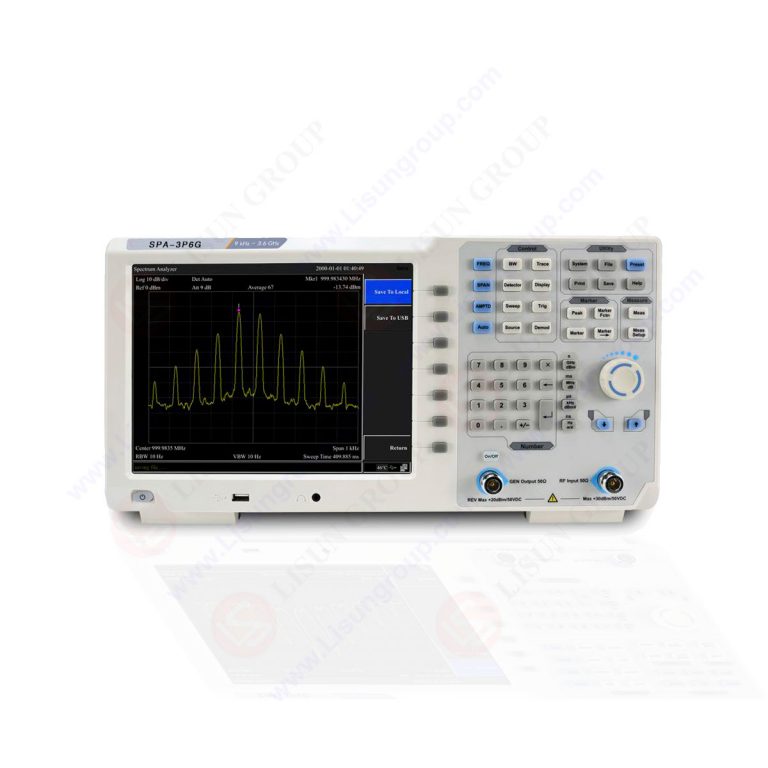

Spectrum Analyzer – Frequency Analyzers

Product No: SPA-3P6G

Get a Quote

Your email address will not be published. Required fields are marked *

  • Description
  • A spectrum analyzer (also called Signal & Spectrum Analyzer, Frequency Analyzers or RF Spectrum Analzers) measures the magnitude of an input signal versus frequency within the full frequency range of the instrument. The primary use is to measure the power of the spectrum of known and unknown signals.

    Specifications:

    LISUN Model

    SPA-1P5G

    SPA-3P6G

    SPA-7P5G

    Frequency

    Range

    9kHz-1.5GHz

    9kHz-3.6GHz

    9kHz-7.5GHz

    Resolution

    1Hz

    Frequency span

    Range

    0 Hz,100 Hz to maximum frequency of device

    Accuracy

    ± span /(swept points -1)

    Internal reference

    Reference frequency

    10.000000 MHz

    Reference frequency accuracy

    ±[(days from last calibrate × freq aging rate)+ temperature stability + initial accuracy ]

    Temperature stability

    <2.5ppm (15℃ to 35℃)

    <1ppm(15℃ to 35℃)

    Aging rate

    <1ppm/year

    Readout

    Marker frequency resolution

    span/(the number of sweep points -1)

    Uncertainty

    ±(freq indication × freq reference uncertainty +1%× span +10%× resolution bandwidth + Marker Frequency Resolution)

    Frequency counter

    Resolution

    1 Hz,10 Hz,100 Hz,1 kHz

    Accuracy

    ±(marker freq × freq reference uncertainty + counter resolution)

    Bandwidth

    Resolution bandwidth (-3 dB)

    10Hz to 500kHz(in 1 to 10 sequence), 1MHz,3MHz

    Resolution filter shape factor

    <5:1 nominal(Digital implement, similar to Gauss Pattern)

    Accuracy

    <5% nominal

    Video bandwidth (-3 dB)

    10Hz to 3MHz

    Amplitude and electric level

    Amplitude measurement range

    DANL to +20 dBm, close the preamplifier

    Reference electric level

    -80 dBm to +30 dBm,0.01dBm steps

    Preamplifier

    20 dB,nominal

    Input attenuator range

    0~40 dB,1 dB steps

    0~50 dB,1 dB steps

    Max input DC voltage

    50 VDC

    Max continuous power

    +30dBm,average continuous power

    Displayed average noise levelDANLInput attenuation 0 dB,1Hz resolution bandwidth

    Preamp off

    1 MHz~10 MHz -140dBm(nominated)

    10 MHz~1GHz -140dBm(nominated)

    SPA-1P5G: 1GHz~1.5 GHz -138 dBm( nominated )
    SPA-3P6G: 1GHz~3.6 GHz -138 dBm( nominated )
    SPA-7P5G: 1GHz~3.6GHz -138dBm( nominated );4GHz~5GHz,-133dBm( nominated )
    5GHz~6GHz,-128dBm( nominated );6GHz~7GHz-123dBm( nominated );
    7GHz~7.5GHz,-118dBm( nominated )

    Preamp on

    1 MHz~10 MHz -160dBm(nominated)

    10 MHz~1GHz -160dBm(nominated)

    SPA-1P5G: 1GHz~1.5 GHz -158 dBm( nominated )
    SPA-3P6G: 1GHz~3.6 GHz -158 dBm( nominated )
    SPA-7P5G: 1GHz~4GHz  -158dBm( nominated );4GHz~5GHz -153dBm( nominated )
    5GHz~6GHz  -148dBm( nominated );6GHz~7GHz -143dBm( nominated )
    7GHz~7.5GHz -138dBm( nominated )

    Phase noise

    20 ℃ ~30 ℃,fc=1 GHz

    Phase noise

    <-82 dBc/Hz @10 kHz offset

    <-98 dBc/Hz @10 kHz offset

    <-100 dBc/Hz @100 kHz offset

    <-110 dBc/Hz @1 MHz offset

    Level display range

    Log scale coordinate

    1dB ~255dB

    Linear scale coordinate

    0 to reference level

    level unit

    dBm, dBuW, dBpW, dBmV, dBuV, W,V

    Points

    201~1001

    Number of traces

    5

    Detectors

    Positive-peak, negative-peak, sample, normal, RMS

    Trace functions

    Clear write, Max Hold, Min Hold, View, Blank, Average

    Frequency response (20℃ ~30℃,30%~70% relative humidity, 20 dB input attenuation, reference 50 MHz)

    Preamp off

    ±0.8 dB;

    Preamp on

    ±0.9 dB;

    Accuracy

    Input Attenuation Switching Uncertainty

    20℃ ~30℃, fc=50 MHz,Preamplifier Off, 20dB RF attenuation,input signal 1~40 dB ±0.5 dB

    Absolute Amplitude Uncertainty

    20℃ ~30℃, fc=50 MHz,RBW=1 kHz,VBW=1 kHz,peak detector, 20 dB RF attenuation,
    Preamplifier Off ±0.4 dB,input signal= -20dBm
    Preamplifier On ±0.5 dB, input signal= -40dBm

    Uncertainty

    input signal range 0dbm~-50dbm

    ±1.5 dB

    VSWR

    input 10 dB RF attenuation,1 MHz~1.5GHz

    input 20 dB,1 MHz~7.5GHz

    <1.5,nominal

    Distortion and spurious response

    Second harmonic distortion

    fc ≥ 50 MHz,Preamp off, signal input -30 dBm, 0 dB RF attenuation, 20 ℃ to 30 ℃

    -65dbc

    Third-order intermodulation

    fc ≥ 50 MHz

    +2 dBm (NSA1015/NSA1032/NSA1036)
    +10dBm(NSA1075)

    1 dB Gain Compression

    fc ≥ 50 MHz, 0 dB RF attenuation,Preamp off , 20 ℃ to 30 ℃

    +2 dBm, nominal

    Residual response

    connect 50 Ω load at input port,0 dB input attenuation,20 ℃ to 30 ℃

    <-85dBm,nominated

    Input related spurious

    -30 dBm signal at input mixer,20 ℃ to 30 ℃

    <-60 dBc

    Sweep time and triggering

    Span range

    100Hz≤SPAN≤3GHz 10ms to 3000s
    zero sweep width 1ms to 3000s

    Mode

    Continue, single

    Trigger

    Free run, video

    Tracking generator

    Output frequency range

    100 kHz~1.5 GHz

    100 kHz~3.6 GHz(Tracking generator)
    35 MHz~3.6 GHz(Tracking generator)

    100 kHz~7.5 GHz(Tracking generator)

    Output power level range

    -30 dBm~0 dBm ,

    -40 dBm~0 dBm ,

    Output power level resolution

    1dB

    Output flatness

    +/-3 dB

    Maximum safe reverse level

    Average total power:+30 dBm,DC : ±50 VDC

    Inputs and Outputs

    Front panel RF input connector

    50 Ω,N-type female

    Front panel track generator output

    50 Ω,N-type female

    10 M reference input

    50 Ω,N-type female

    Communication port

    USB HOST, USB DEVICE, LAN, earphone port, REF and VGA

    General technical specification

    Display

    TFT LCD,10.4 inches

    Weight (without package)

    About 5 kg

    Dimension (W × H × D)

    421 × 221 × 115 (mm)

    Working temperature

    0~40 ℃

    Storage temperature

    -20 °C to +60 °C

    Power

    100V~240V 50/60Hz
