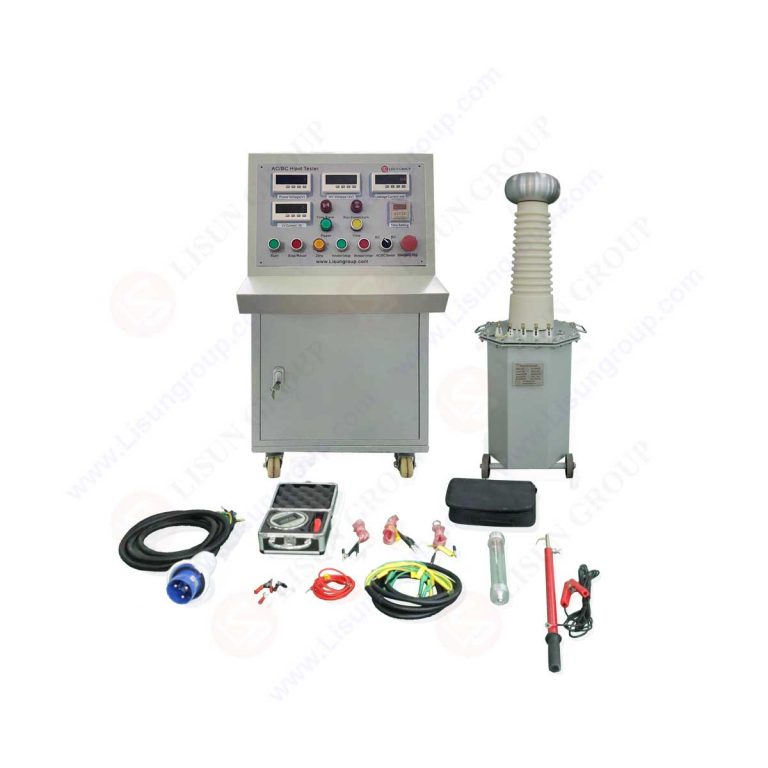

AC/DC Hipot Tester

Product No: HIPOT10-100KV

Get a Quote

Your email address will not be published. Required fields are marked *

  • Description

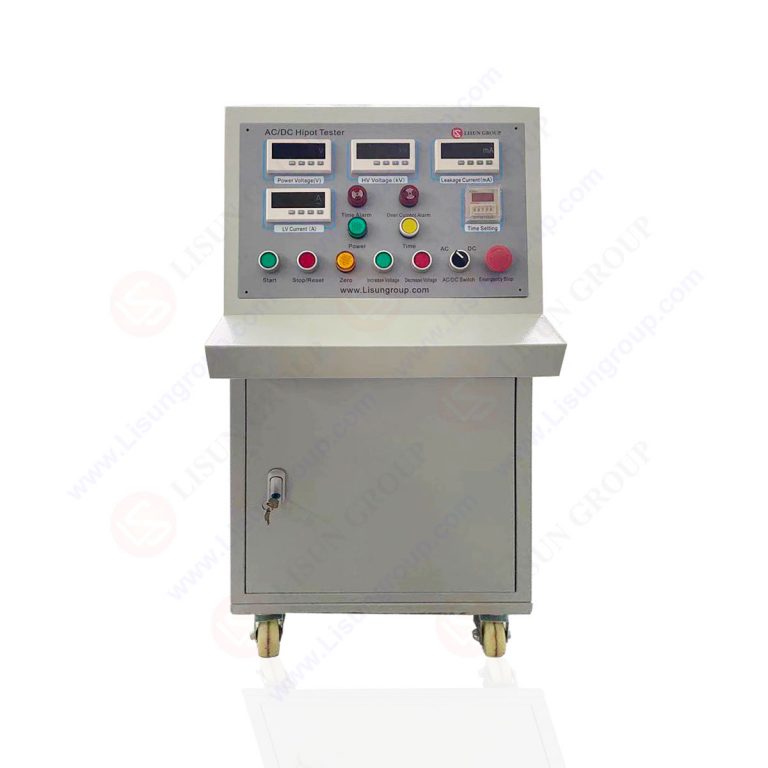

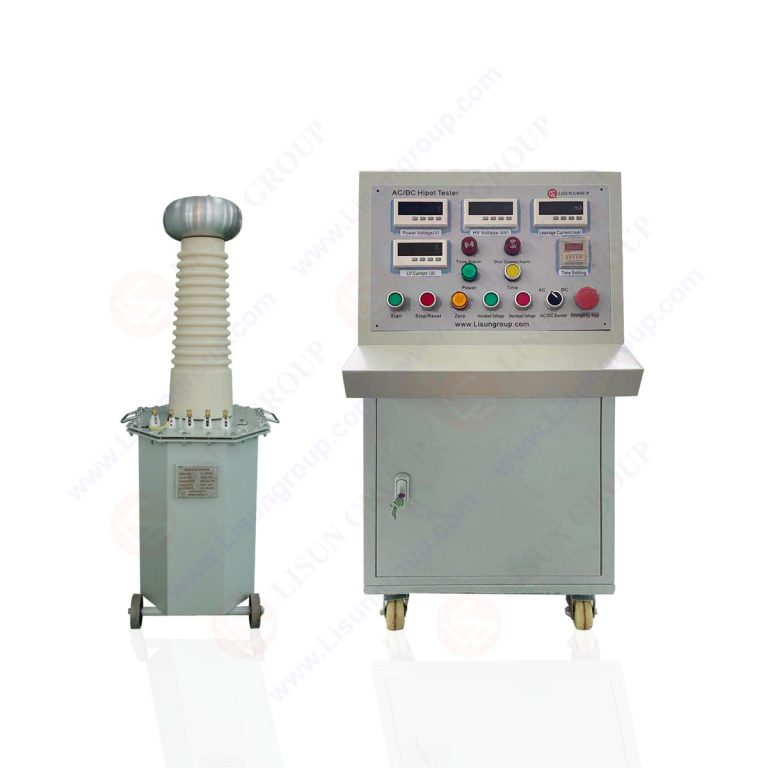

  • HIPOT series of power frequency withstand voltage test device is used for capacitor withstand voltage test. Its working principle is: adjust the output voltage of the auto-voltage regulator to realize the adjustment of the working voltage within the rated voltage range of the high-voltage test transformer. At the same time, the operation box (set) is equipped with a high-voltage output voltmeter, a low-voltage input ammeter and an overcurrent protection circuit. Can easily read the test voltage value, and can reliably protect the equipment. With simple principle, compact structure and reliable operation, it is an ideal equipment for pressure test.

    Technical Parameter:
    Main technical parameter table of HIPOT series power frequency withstand voltage test device below:

    Model

    Capacity

    High Voltage(kV)

    High Current(mA)

    Low Output

    (kVA)

    AC

    DC

    AC

    DC

    Voltage

    (V)

    Current

    (A)

    HIPOT2-10KVAC

    2

    10

    N/A

    200

    N/A

    N/A

    N/A

    HIPOT5-50KV

    5

    50

    70

    100

    15

    200

    25

    HIPOT10-50KV

    10

    50

    70

    200

    50

    200

    50

    HIPOT30-50KV

    30

    50

    70

    600

    100

    380

    79

    HIPOT50-50KV

    50

    50

    70

    1000

    100

    380

    132

    HIPOT10-100KV

    10

    100

    140

    100

    50

    200

    50

    HIPOT30-100KV

    30

    100

    140

    500

    100

    380

    79

    HIPOT50-100KV

    50

    100

    140

    500

    100

    380

    132

    HIPOT100-100KV

    100

    100

    140

    1000

    100

    380

    250

    HIPOT30-150KV

    30

    150

    210

    200

    100

    380

    79

    HIPOT50-150KV

    50

    150

    210

    333

    100

    380

    132

    HIPOT100-150KV

    100

    150

    210

    667

    100

    380

    263

    Note: There are 200V cascade taps in this series of products. Two or three cascade taps can be cascaded into AC 100kV, 150kV, 200kV, 300kV and DC 140kV, 210kV, 280kV, 420kV. According to user needs, 5-15kV medium voltage taps can be drawn from the high voltage windings for AC withstand voltage test of high voltage motors. And can customize the power frequency withstand voltage test device of special specifications.
