Waterproof Test Chamber

Product No: JL-XC

Leave a Message

=
  • Description
  • Video
  • Download
  • JL-XC series waterproof test chambers are mainly used for small electronic and electrical products such as lamps, electrical cabinets, electrical components and so one. It is used for physical and other related properties checking under simulated climatic conditions. It determines whether the performance of the product meets the requirements or not after the test. It is very useful in the design, improvement, verification and factory inspection of the product.

    Standard:
    IEC60598-1 “Luminaires – Part 1: General requirements and tests”
    IEC60529:1989 +A1:1999 +A2:2013  “Degrees of protection provided by enclosures(IP Code)”
    GB4208-2008 “Degrees of protection provided by enclosure (IP code) “
    GB7000.1 “Luminaires-Part 1:General requirements and tests “

    Features:
    • The outer casing is made of high-quality steel plate, and the surface is painted with paint which is beautiful and durable. The inner box, the turntable, and the wading part are all made of SUS304 stainless steel plate to make sure that it will not rust after using for a long time. (Inner box sheet thickness: 1.2mm, can handle the water pressure)
    • IPX12: The compressed air drying function can remove the excess water in the drip tank after the test to avoid long-term water accumulation and fouling. (User need to provide air compressor)
    • IPX34: The driver for the swing pipe adopts high-quality servo stepping motor, the swinging speed and angle are precisely adjustable. There is no out-of-step problem (the risk of out-of-step: it will cause the swinging tube to malfunction, hitting the middle turntable shaft, causing equipment damage)
    • IPX56: It is with monolithic structure. The sray gun direction is adjustable and can be fixed. The operator only need to start the test but no need to carry the spray gun.
    • The water supply line is equipped with a filter to filter impurities in the water to prevent nozzle clogging.
    • The LED waterproof lighting is installed in the chamber, and there is a large observation window on the door to facilitate the observation of the test sample.
    • The equipment equipped with a water tank for recycling water, no need building a professional waterproof test room. The water tank float valve in the water tank automatically controls the water inlet, and has high and low water level alarm monitoring to effectively prevent the pump from being damaged due to running out of water.
    • The turntable uses a stepper motor, the speed can be set on the touch screen, and can control the forward and reverse rotation (suitable for the sample power-on test to prevent winding).
    • Touch screen control function: Directly select the waterproof level on the self-developed IPX waterproof level test operation interface. You can run test according to the waterproof rating conditions in the standard terms easily.
    • Test sample input power: single-phase 220V/10A (other specifications can be customized)
    • Equipment power supply frequency: Default is 50Hz and 60Hz is also available (It is very important to confirm us your grid power frequency)

    Specifications

    Model JL-12CP-600M JL-12CP-1200M
    Waterproof Test Level IPX1,IPX2
    Drip size 600*600mm 1200*1200mm
    Drip aperture ¢0.4mm
    Distance between drip holes 20*20 mm
    Turntable diameter ¢600 mm
    Flow 1-5 mm/min(±0.5mm/min)
    Flow adjustment method Manual adjust
    Drip board lifting method Not lifting (Fixed)
    Turntable height range 350-700 mm
    Turntable maximum load bearing 50KG
    Turntable tilt 0°or15°(horizontal direction)
    Turntable speed 1 r/min(IPX1)
    Test time 0-999 min
    Security function Leakage protection, water shortage protection, short circuit protection
    Equipment power supply 380V/Three-phase/50Hz (60Hz customizable)
    Model JL-34CP-R200 JL-34CP-R400 JL-34CP-R600
    Waterproof Test Level IPX3,IPX4
    Swing tube size R200mm R400mm(Can be added R200mm swing tube) R600mm(Can be added R400mm, R200mm swing tube)
    Inner box size 500*500*500mm 900*900*900mm 1300*300*1300mm
    Water jet aperture size 0.4mm
    Swing tube inner diameter 15mm
    Turntable diameter 200mm 400mm 600mm
    Flow 0-1L/min 0-2L/min 0-3L/min
    Turntable Maximum load bearing 50kg
    Turntable height range 150-250mm 350-600mm 550-1000mm
    Turntable rotation speed 1-5r/min(Precision adjustable)
    Turntable rotation Always forward / Forward and reverse alternate
    Pendulum angle 120º(IPX3),350º(IPX4)Or custom settings
    Swing tube Swing speed 240°back and forth 4S,720°back and forth 12S(Precision control) or custom settings
    Security function Leakage protection, water shortage protection, short circuit protection
    Equipment power supply 220V/Single Phase/50Hz(60Hz customizable)

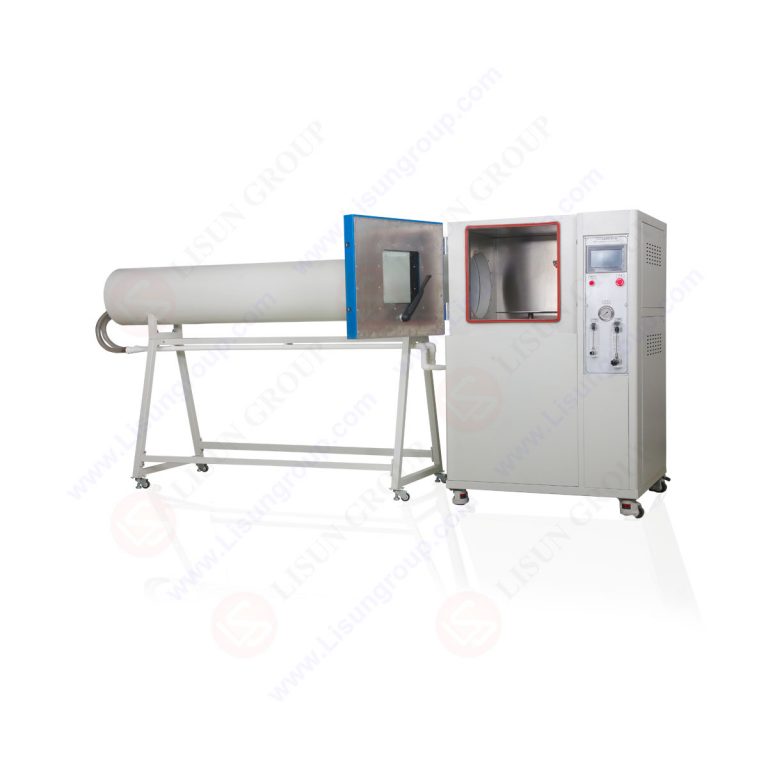

    Model JL-56CP-200L JL-56CP -500L JL-56CP -1000L JL-56KCA-1000L JL-56CP -1400L
    Waterproof Test Level IPX5,IPX6 IPX5, IPX6, IPX6K IPX5,IPX6
    Inner box size 600*600*600mm 800*800*800 mm 1000*1000*1000mm 1180*1180*1000mm
    Water tank volume about100L
    Turntable size ¢400mm ¢600mm ¢600mm ¢800mm
    IPX5 Water spray aperture ¢6.3mm
    IPX6 Water spray aperture ¢12.5mm
    IPX5 Water spray flow 12.5±0.625(L/min)
    IPX6 Water spray flow 100±5(L/min)
    IPX6K Water spray flow N/A 75±3.75L/min N/A
    Flow adjustment method Manual adjust (Rotor flowmeter)
    Water spray distance 2.8m
    Spray gun fixing method Mechanically fixed and can adjust the angle of the gun manually  Automatically swing the spray gun Mechanically fixed and can adjust the angle of the gun manually
    Turntable maximum load bearing 50KG
    Turntable lifting range Not lifting (Fixed)
    Water spray method Recyclable
    Security function Leakage protection, water shortage protection, short circuit protection
    Equipment power supply 380V/Three-phase/50Hz (60Hz customizable)
    Model JL-1234CP -R200 JL-1234CP -R400 JL-1234KCP-R400
    Waterproof Test Level IPX1,IPX2,IPX3, IPX4 IPX1,IPX2,IPX3, IPX4, IPX4K
    Inner box size 500*500*650mm 900*900*1050mm 900*900*1050mm
    Turntable size ¢200mm ¢400mm
    Turntable maximum load bearing 50KG
    Turntable height range 150-250 mm 450-750 mm
    Turntable tilt 0°or15°(horizontal direction)
    Turntable speed 1 -5r/min(Precision adjustable)
    Turntable rotation Always forward / Forward and reverse alternate / intermittent rotation
    Test time 0-999 min
    IPX12 part – technical parameters
    Drip size 200*200mm 600*600mm
    Drip aperture ¢0.4mm
    Distance between drip holes 20*20 mm
    Flow IPX1=1mm/min;IPX2=3mm/min
    Flow adjustment method Manual adjust
    Drip board lifting method Can not lifting (fixed)
    IPX34 part – technical parameters
    Swing tube size R200mm R400mm(Can be added R200mm swing tube)
    Pendulum flow IPX3=0.56L/min;IPX4=0.84L/min IPX3=1.1L/min;IPX4=1.8L/min;IPX4K=15L/min
    Water jet aperture size 0.4mm 0.8mm
    Water spray aperture spacing 50mm
    Swing tube inner diameter 15mm
    Pendulum angle 120º(IPX3),350º(IPX4)Or custom settings
    Swing tube Swing speed 240°back and forth 4S,720°back and forth 12S (precise control) or custom
    Security function Leakage protection, water shortage protection, short circuit protection
    Equipment power supply 380V/Three-phase/50Hz (60Hz customizable)



    Model JL-3456CP-R400 JL-3456CP-R600 JL-3456CP-R800 JL-3456KCA-R800
    Waterproof Test Level IPX3, IPX4, IPX5, IPX6 IPX3, IPX4, IPX5, IPX6, IPX6K
    Inner box size 900*900*900mm 1300*1300*1300mm 1700*1700*1700mm
    Turntable diameter 400mm R600mm R800mm
    Turntable maximum load bearing 50KG
    Turntable lifting height 400-750mm 550mm-1,100mm
    Turntable speed 1-5r/min(accurately adjustable)
    Turntable tilt 0°or15°(horizontal direction)
    Turntable rotation Always forward / forward and reverse alternate / intermittent rotation
    Flow adjustment method Manually adjust
    Test time 0-999min
    IPX34 technology parameters
    Swing tube size R400mm(Can be added R200mm swing tube) R600mm(Can be added R400/R200mm swing tube) R800mm(Can be added R600/R400/R200mm swing tube)
    Pendulum flow IPX3=1.1L/min;IPX4=1.8L/min
    Water jet aperture size 0.4mm
    Water spray aperture spacing 50mm
    Swing tube inner diameter 15mm
    Pendulum angle 120°(IPX3),350°(IPX4) or custom settings
    Swing tube Swing speed 240°back and forth 4s,720°back and forth 12s(precise control) or custom
    IPX56 Technical Parameters
    IPX5 Water jet aperture ¢6.3mm
    IPX6 Water jet aperture ¢12.5mm
    Water spray distance 2.5m(the distance from the nozzle to the center of the turntable)
    IPX5 Water spray flow 12.5±0.625(L/min)
    IPX6 Water spray flow 100±5(L/min)
    IPX6K Water spray flow N/A 75±3.75L/min
    Flow adjustment method manual adjust
    Spray gun fixing method Mechanically fixed and can adjust the angle of the gun manually Automatically swing the spray gun
    Equipment power supply 380V/Three-phase/50Hz (60Hz customizable)

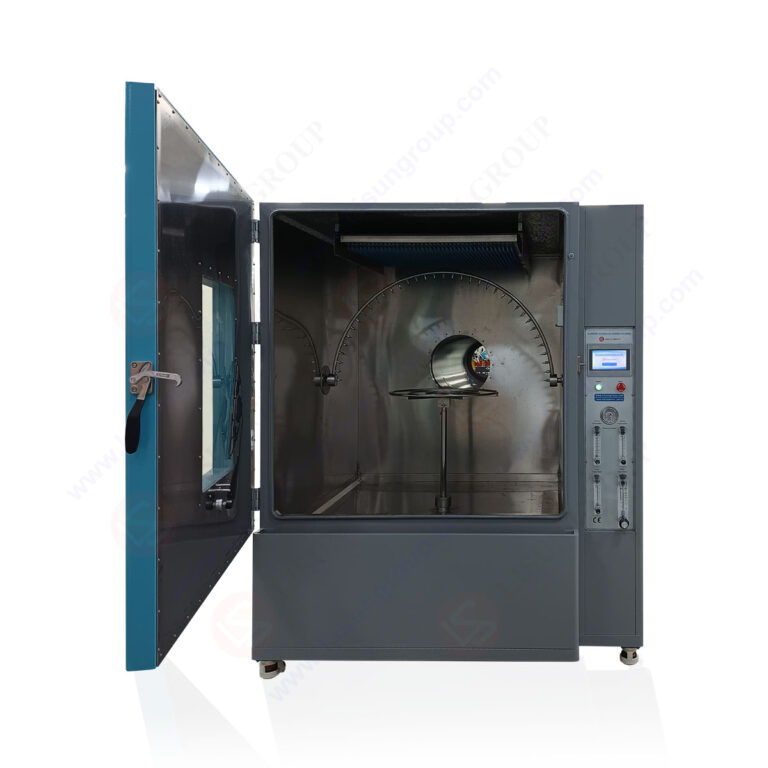

    Model

    JL-123456CP-R400

    JL-123456CP-R600

    JL-123456CP-R800

    Waterproof Test level

    IPX1, IPX2, IPX3, IPX4, IPX5, IPX6

    Inner box size

    900*900*1050mm

    1300*1300*1450mm

    1700*1700*2100mm

    Turntable diameter

    400mm

    600mm

    600mm

    Turntable maximum load bearing

    50KG

    Turntable lifting height

    400-750mm

    550mm—1100mm

    1000-1600 mm

    Turntable speed

    1-5r/min(accurately adjustable)

    Turntable tilt

    0°or15°(horizontal direction)

    Turntable rotation

    Always forward / forward and reverse alternate / intermittent rotation

    Flow adjustment method

    Manually adjust

    Test time

    0-999min

    Equipment weight

    About 500KGS

    IPX12 Technical Parameters



    Drip size

    600*600mm

    1000*1000mm

    Drip aperture

    ¢0.4mm

    Distance between drip holes

    20*20mm

    Flow

    IPX1=1mm/min;IPX2=3mm/min

    Flow adjustment method

    Manually adjust



    Drip board lifting method

    Can not lifting (fixed)

    IPX34 Technical Parameters



    Swing tube size

    R400mm(Can be added with R200mm swing tube)

    R600mm(Can be added with R400/R200mm swing tube)

    R800mm

    Pendulum flow

    IPX3=1.8L/min;IPX4=2.6L/min

    2.3 L/min±5%(IPX3);3.5 L/min±5%(IPX4)

    Water jet aperture size

    0.4mm

    Water spray aperture spacing

    50mm

    Swing tube inner diameter

    15mm

    Pendulum angle

    120°(IPX3),350°(IPX4) or custom settings

    Swing tube Swing speed

    240°back and forth 4s,720°back and forth 12s(precise control) or custom

    IPX56 Technical Parameters

    IPX5 Water jet aperture

    ¢6.3mm

    IPX6 Water jet aperture

    ¢12.5mm

    Water spray distance

    2.5m(the distance from the nozzle to the center of the turntable)

    IPX5 Water spray flow

    12.5±0.625(L/min)

    IPX6 Water spray flow

    100±5(L/min)

    Flow adjustment method

    Manual adjust (Rotor flowmeter)



    Spray gun fixing method

    Mechanically fixed and can adjust the angle of the gun manually (if need to automatically swing the spray gun, please order JL-123456CA series)

    Equipment power supply

    380V/Three-phase/50Hz (60Hz customizable)

    LISUN JL-12CP Waterproof Test Chamber – After Sales Questions and Answers.
    LISUN JL-12CP Waterproof Test Chamber were in the market for more than 10 years, LISUN engineers service team already summary the most of the After Sales Questions and Answers in the above link. Please read it carefuly, you can solve the most of the problems by yourself if you have some questions while using the instruments. LISUN will be continue to update this pages and more FAQ can be found in this topic link.

    LISUN JL-34CP Waterproof Test Chamber – After Sales Questions and Answers.
    LISUN JL-34CP Waterproof Test Chamber were in the market for more than 10 years, LISUN engineers service team already summary the most of the After Sales Questions and Answers in the above link. Please read it carefuly, you can solve the most of the problems by yourself if you have some questions while using the instruments. LISUN will be continue to update this pages and more FAQ can be found in this topic link.

    LISUN JL-56C Waterproof Test Chamber – After Sales Questions and Answers.
    LISUN JL-56C Waterproof Test Chamber were in the market for more than 10 years, LISUN engineers service team already summary the most of the After Sales Questions and Answers in the above link. Please read it carefuly, you can solve the most of the problems by yourself if you have some questions while using the instruments. LISUN will be continue to update this pages and more FAQ can be found in this topic link.

    Tags: ,
  • Waterproof Test Chamber for IPX3 and IPX4 - Introduction Vedio

    vedio

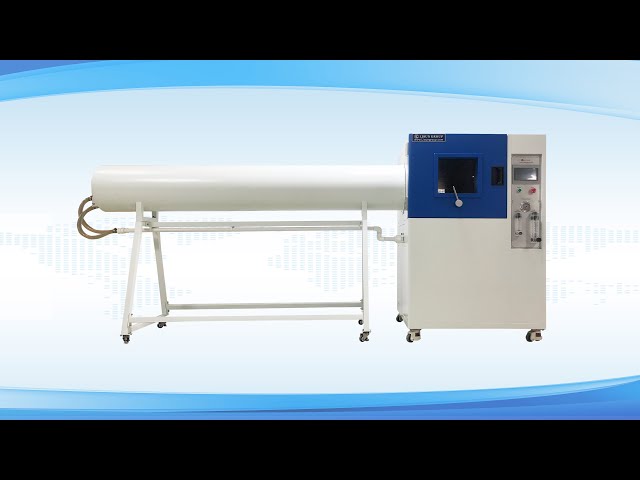

    Waterproof Test Chamber for IPX5 and IPX6 -Operation Vedio
