Product No: ETEU-SP10K

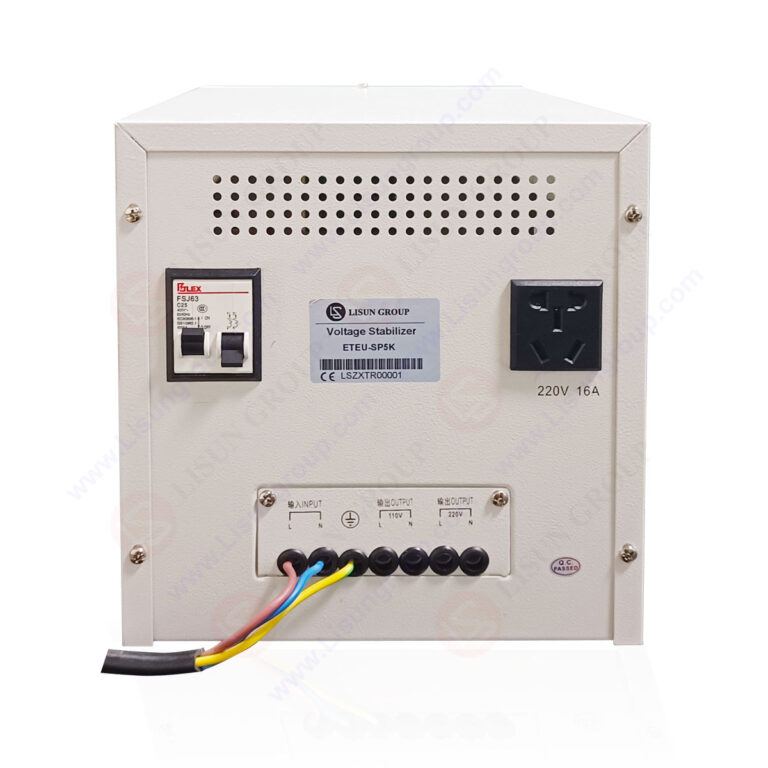

Voltage Stabilizer is composed of contact type autocoupling voltage regulator, servo motor, automatic control circuit, etc. When the grid voltage is unstable or the load changes, the automatic sampling control circuit sends a signal to drive the servo motor, adjust the position of the carbon brush of the autocoupling voltage regulator, adjust the output voltage to the rated value and reach a steady state. It has the advantages of undistorted waveform, high efficiency, reliable performance, long-term operation, etc. ETEU-SP10K series voltage stabilizer is suitable for office equipment, test equipment, medical equipment, industrial automation equipment, household appliances, lighting systems, communication systems and any other places where electricity is used. It is an ideal stabilized power supply to ensure your electricity consumption Equipment can operate normally. It can work with Isolation Transformer ITEU-SP4K to supply a more pure power for the test instruments.
Specifications:
• Single Phase output current = Power * 80% / Ouput voltage
• Three Phases output current = Power * 80% / 1.732 / Output voltage
• Input voltage = Customers’ local rated voltage (Please inform the exactly input voltage when order)
• Ouput Power = Actual power *2
• Voltage Output Tolerance: +/-3%
LISUN Model | Input voltage | Output voltage(+/-3%) | Power |
ETEU-SP5K | Single Phase/198-264V | Single Phase/220V | 5KVA |
ETEU-SP10K | Single Phase/198-264V | Single Phase/220V | 10KVA |
ETEU-SP15K | Single Phase/198-264V | Single Phase/220V | 15KVA |
ETEU-SP20K | Single Phase/198-264V | Single Phase/220V | 20KVA |
ETEU-SP30K | Single Phase/198-264V | Single Phase/220V | 30KVA |
ETUS-SP5K | Single Phase/99-132V | Single Phase/220V | 5KVA |
ETUS-SP10K | Single Phase/99-132V | Single Phase/220V | 10KVA |
ETUS-SP15K | Single Phase/99-132V | Single Phase/220V | 15KVA |
ETUS-SP20K | Single Phase/99-132V | Single Phase/220V | 20KVA |
ETUS-SP30K | Single Phase/99-132V | Single Phase/220V | 30KVA |
ETEU-TP6K | Three Phases340-480V | Three Phases/380V | 6KVA |
ETEU-TP10K | Three Phases340-480V | Three Phases/380V | 10KVA |
ETEU-TP15K | Three Phases340-480V | Three Phases/380V | 15KVA |
ETEU-TP20K | Three Phases340-480V | Three Phases/380V | 20KVA |
ETEU-TP30K | Three Phases340-480V | Three Phases/380V | 30KVA |
ETUS-TP6K | Three Phases198-264V | Three Phases/380V | 6KVA |
ETUS-TP10K | Three Phases198-264V | Three Phases/380V | 10KVA |
ETUS-TP15K | Three Phases198-264V | Three Phases/380V | 15KVA |
ETUS-TP20K | Three Phases198-264V | Three Phases/380V | 20KVA |
ETUS-TP30K | Three Phases198-264V | Three Phases/380V | 30KVA |
