Product No: SDR-2000B
The SDR series Electro-Magnetic Shielding Cabinet | EMC Test Chamber | RF Shielding Room adopts a modular prefabricated design, using 2mm high-quality galvanized cold-rolled steel plate as the core shielding material. Based on the “Faraday cage” electromagnetic isolation principle, it constructs a leak-free, fully enclosed shielding space through precision bolt fixing of the panel and high-conductivity mesh gasket sealing technology, achieving efficient blocking of electromagnetic waves in the 9kHz to 18GHz broadband band. The SDR series EMC Test Chamber, combined with power filters, modular floors, sealed shielding doors, and interface boards, ensures both the long-term stability of shielding effectiveness and the flexibility of equipment installation and maintenance. It isolates the internal testing environment from external electromagnetic interference at the source, while preventing the leakage of sensitive signals from within the room.
The SDR series RF Shielding Room is seamlessly compatible with LISUN EMI-9K series EMI Receivers and any other brand EMI Receivers. The room layout can be flexibly configured according to testing needs: it supports testing personnel and equipment in the same room, or it can achieve isolated connection between the test object and external equipment through interfaces such as N/SMA ports. It provides a clean, repeatable, and standardized electromagnetic environment for radiated interference and immunity testing, and is widely used in the stringent testing and production requirements of many industries such as electronics, military, and automotive electronics.
Standards:
| Standards | Standards Name |
| IEEE Std 299-2006 | Standard for Measuring the Effectiveness of Electromagnetic Shielding Enclosures |
| EN 50147-1:1996 | Methods of measurement of the shielding effectiveness of electromagnetic shielding enclosures |
| CISPR 11:2024 | Industrial, scientific and medical equipment – Radio-frequency disturbance characteristics – Limits and methods of measurement |
| MIL-STD-461 | Requirements for Electromagnetic Compatibility of Military Electronic Equipment |
| MIL-DTL-83528 | Performance Specification for Conductive Elastomers for Electromagnetic Interference (EMI) Shielding |
| GB/T 12190-2021 | 电磁屏蔽室屏蔽效能的测量方法 |
| GB/T 51103-2015 | 电磁屏蔽室工程施工及质量验收规范 |
| GB 4824-2025 | 工业、科学和医疗设备 射频骚扰特性 限值和测量方法 |
| GJB 5792-2006 | 军用涉密信息系统电磁屏蔽体等级划分和测量方法 |
Specifications:
| LISUN Model | SDR-5000B | SDR-4500B | SDR-4000B | SDR-2000B | SDR-800S |
| Cabinet Internal Size | 5*3*3m (L*W*H) | 4*2*2.1m | 4*1.2*1.8m | 2*1.2*1.8m | 0.8*0.8*0.8m |
| Cabinet External Size | 5.2*3.2*3.5m | 4.2*2.2*2.5m | 4.2*1.4*2.3m | 2.2*2.3*2.3m | 1*1.1*1.2m |
| Cabinet Door | 1*2m (W*H) | 1*1.7m | 0.6*0.6m | ||
| Shielding performance | Magnetic field: 10kHz ≥80dB, 100kHz ≥100dB, 1MHz ≥100dB; Plane wave: 100MHz ≥110dB, 400MHz ≥110dB; Microwave: 18GHz ≥90dB | ||||
| Electrical system | Distribution box *1, LED lights *2, lighting switch *1, sockets *10 | Distribution box *1, LED lights *2, lighting switch *1, sockets *5 | LED lights *1, lighting switch *1, sockets *5 | ||
| Ventilation system | 300*300mm Waveguide window *2 | 300*300mm Waveguide window *2 | 300*300mm Waveguide window *1 | ||
| Wall connector pannel | connector pannel with 300*300mm: including N(f)-N(f) *6, SMA(f)-SMA(f) *2, waveguide with 35mm inner diameter *2 | ||||
| Filter | The power filter provides single-phase power supply of 32A. | ||||
| Shielding Chamber structure | The main structure of the shielded room is made of cold-rolled steel plate with a galvanized and rust-proof exterior. The raised floor has a load-bearing capacity of up to 1,000KGS. | ||||
| Monitoring system (optional) | Withstands 100V/m field strength and is free from electromagnetic interference: CCTV high-definition camera, color LCD monitor. | ||||

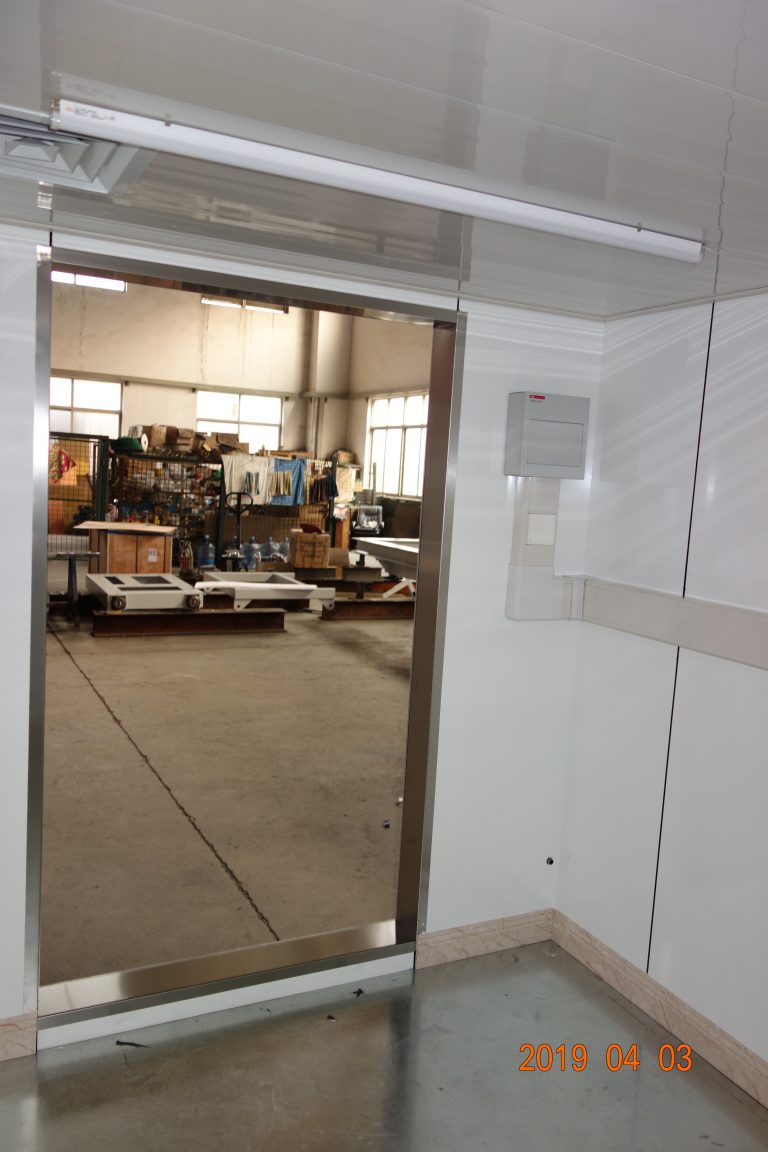

NOTE: 1. Other sizes of Electromagnetic shielding chambers can be designed.
2. The SDR-5000B needs to be assembly in the customers’ site and the rest will be delivery as a whole unit.
3. The SDR-4000B needs to be delivery at 40HQ and the rest can be delivery by 20GP/40GP.

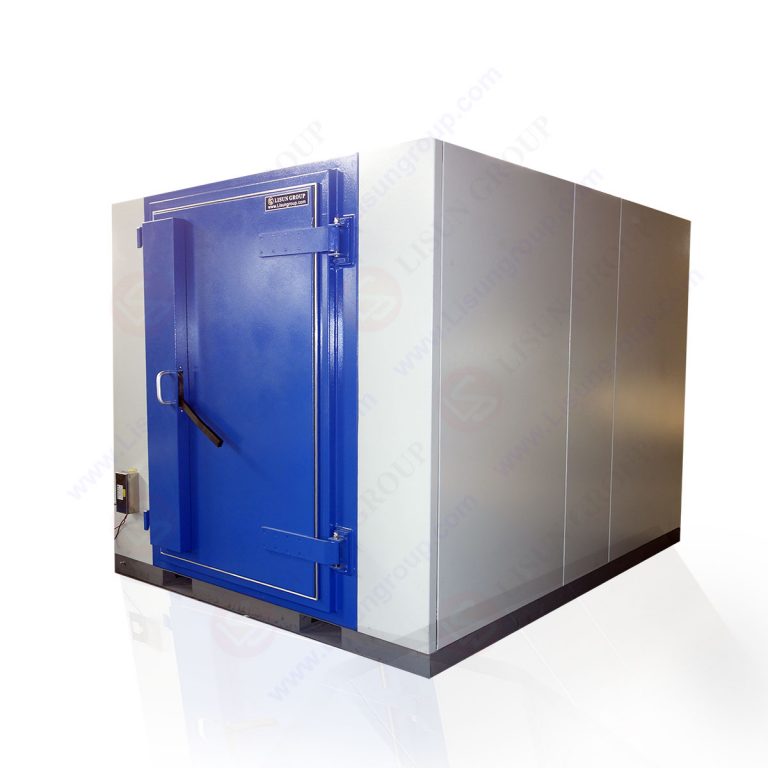

Top View of SDR Series Electromagnetic Chielding Chamber
Front View of SDR Series Electromagnetic Chielding Chamber
