Product No: LS5562

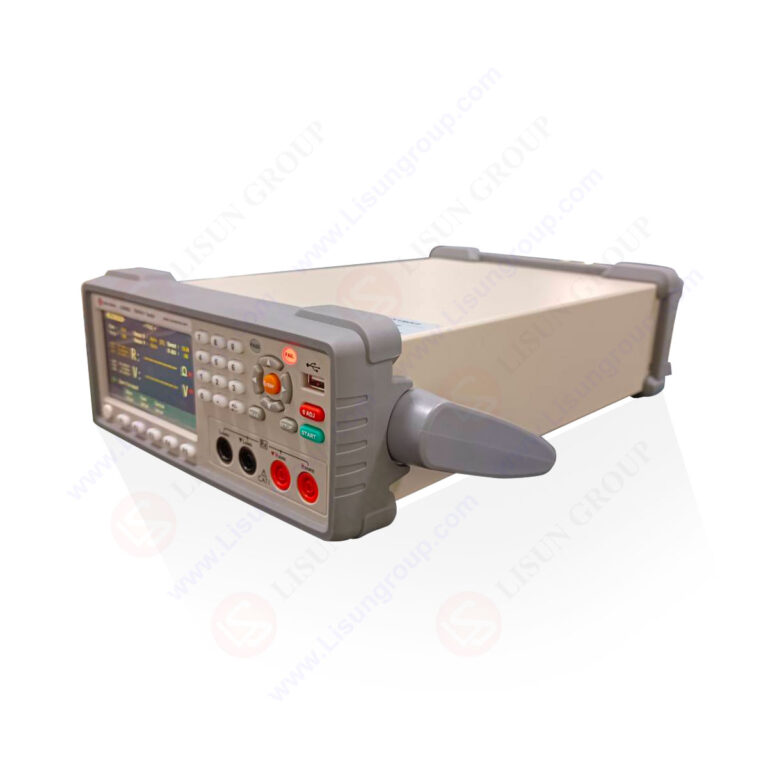

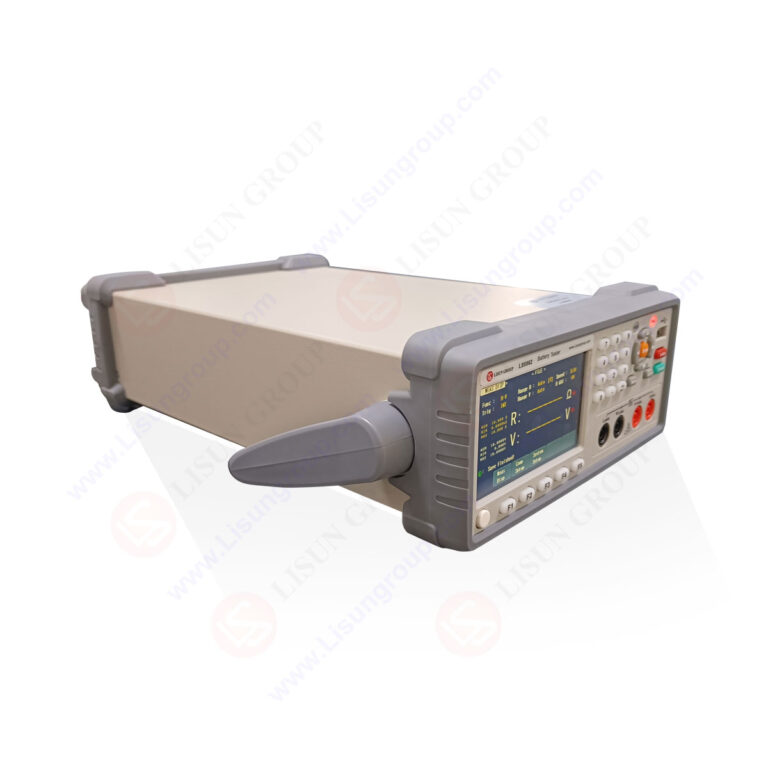

The LS5560 high-voltage, high-precision battery internal resistance tester is a specialized instrument developed for battery testing needs. It employs an AC 4-terminal measurement method, simultaneously detecting both the battery’s resistance and voltage. The instrument features a clear color LCD display for easy and intuitive reading of test results, and includes a test lead contact check function to ensure data accuracy. Supporting multiple communication interfaces and online functions, it allows for flexible construction of automated testing systems. It also features automatic saving of test conditions and convenient uploading of test results, making it suitable for diverse applications such as high-speed sorting lines, providing an efficient and reliable solution for battery testing.
Standards:
| Standards No. | Standards Name |
| IEC 61960-1:2017 | Secondary cells and batteries containing alkaline or other non-acid electrolytes – Part 1: General requirements |
| IEC 62133-1:2017 | Secondary cells and batteries containing alkaline or other non-acid electrolytes – Safety requirements for portable sealed secondary cells, and for batteries made from them, for use in portable applications |
| ANSI C136.10-2019 | Electric Vehicle Supply Equipment (EVSE) |
| GB/T 31484-2015 | 电动汽车用动力蓄电池循环寿命要求及试验方法 |
| GB/T 31485-2015 | 电动汽车用动力蓄电池安全要求及试验方法 |
| GB/T 18287-2013 | 移动电话用锂离子蓄电池及蓄电池组总规范 |
| GB/T 22473-2013 | 储能用锂离子电池和蓄电池组 通用要求 |
Specification:
• Included 4.3-inch LCD screen display, battery internal resistance R and voltage V are displayed at the same time;
• Minimum resolution: 0.1uΩ, 10uV;
• High precision, good stability, the fastest test speed up to 100 times/second;
• Test lead contact check function;
• Built-in comparator function, 10-level sorting;
• Equipped HANDLER sorting interface to achieve automatic online function;
• Standard RS232 (Option: RS485) communication interface, supports SCPI and Modbus (RTU) communication modes
• Test conditions are automatically saved, 50 sets of settings files are stored in the instrument and 500 sets of settings files are stored in the USB flash drive
• Patented invention, test results can be uploaded directly to the computer without installing software
| LISUN Model | LS5560 | LS5562 | LS5562A |
| Measure Parameters | RV/R/V (R: AC resistance V: DC voltage) | ||
| Test Method | AC 4-terminal measurement (1kHz) | ||
| Max Input Voltage | Rated input voltage 60VDC | Rated input voltage 60VDC | The rated input voltage 300VDC |
| Max rated voltage to ground: 60VDC | Max rated voltage to ground: 60VDC | Max rated voltage to ground: 300VDC | |
| Resistance Measure Range | 5 ranges | 7 ranges | |
| 3mΩ (Max display: 3.1000mΩ, Resolution: 0.1μΩ) | 3mΩ (Max display: 3.1000mΩ, Resolution: 0.1μΩ) | ||
| 30mΩ (Max display: 31.000mΩ, Resolution: 1μΩ) | 30mΩ (Max display: 31.000mΩ, Resolution: 1μΩ) | ||
| 300mΩ (Max display: 310.00mΩ, Resolution: 10μΩ) | 300mΩ (Max display: 310.00mΩ, Resolution: 10μΩ) | ||
| 3Ω (Max display: 3.1000Ω, Resolution: 0.1mΩ) | 3Ω (Max display: 3.1000Ω, Resolution: 0.1mΩ) | ||
| 30Ω (Max display: 31.000Ω, Resolution: 1mΩ) | 30Ω (Max display: 31.000Ω, Resolution: 1mΩ) | ||
| 300Ω (Max display: 310.00Ω, Resolution: 10mΩ) | |||
| 3000Ω (Max display: 3100.0Ω, Resolution: 100mΩ) | |||
| Accuracy | 30mΩ ～ 3000Ω range: ± 0.5%RDG. ± 5dgt. (EX.Fast needs to be added ± 3dgt., Fast/medium, ± 2dgt.) | ||
| 3mΩ~30mΩ range: ± 0.5%RDG. ± 10dgt. (EX.Fast need to be added ± 10dgt., Fast when you need to add ± 5dgt.) | |||
| Voltage Measure Range | DC6V (resolution 10 μV) DC60V (resolution 100 μV), two range switching | DC6V (resolution 10 μV) DC60V (resolution 100 μV), DC300V (resolution 1mV),three range switching | |
| Voltage Measurement Accuracy | EX. FAST:±0.01%.±3dgt. Add±3dgt, FAST: Add± 2dgt., MED :ADD± 2dgt. | ||
| Sampling Time | EX.FAST: 4ms, FAST: 12ms, MEDIUM: 42ms, SLOW: 157ms (The above is the fastest time for measuring a single parameter, the power frequency is 50Hz, the specific time depends on the test item and power frequency) | ||
| Full Measure Time | Response time + sampling time (The impedance/voltage common response time is about 1ms, for reference only, the specific time depends on the test process and the object being tested) | ||
| Comparators | Independent judgment: HI/IN/LO (voltage and impedance are judged independently), comprehensive judgment (PASS/FAIL. AND operation of impedance judgment result and voltage judgment result). LED display, buzzer alarm, external I/O output | ||
| External interface | Handler I/O,RS-232C,USB | ||
| Power requirements | AC:85-242V ，47～63Hz，15VA | ||
| Size((W*H*D) | 215mm*87mm*335mm (net size), 235mm*105mm*360mm (after adding cites) | ||
| Weight | 3.6KGS | ||
| External Interface | Handler I/O, RS-232C, USB | ||
Application：
• Measurement and life evaluation of alkaline and lead batteries
• UPS detection
• Battery Factory Inspection
• High-precision internal resistance and voltage detection of lithium battery
• High-speed mass production random inspection of buttons
• Measurement of fuel cell group
• Test of high-voltage battery packs such as electric vehicle lithium batteries
• Multi-section series high-voltage lithium battery internal resistance and voltage measurement
• Measurement of hydrogen fuel cell resistance and voltage
• Equipped with automatic sorting machine for automatic battery internal resistance + voltage testing
• Battery degradation status and life assessment
• ESR test of super capacitance (low internal resistance capacitor)
