Charger/Adapter Aging Test Rack (Constant Temperature)

Product No: SY65240T

Specifications

The SY65240T series constant-temperature aging rack is designed for various power products, including chargers, power adapters, and wireless chargers. It facilitates factory-level accelerated aging and reliability/durability testing across a full spectrum of power supplies—ranging from low to high voltage and low to high current—while supporting mainstream fast-charging protocols such as QC, PD, FCP, SCP, PPS, and AFC. It is widely used for mass-production quality inspection and R&D verification in the consumer electronics charging sector.

Equipped with a PC-based monitoring system, the SY65240T series allows for customizable load parameters and real-time data acquisition of voltage, current, and power. It supports both Constant Current (CC) and Constant Voltage (CV) load modes, with CC mode enabling channel paralleling for high-power testing. The system features dual automatic alarm and protection mechanisms against over-temperature and smoke, and supports customizable power-cycling sequences and automatic load switching. The unit utilizes a six-layer cold-rolled steel shelving structure, balancing testing flexibility, operational safety, and energy efficiency.

Specifications:

LISUN Model	SY65240T-65W	SY65240T-100W	SY65240T-150W	SY65240T-600W
Single-channel power	65W	100W	150W	600W
Number of load channels	240 channels	192 channels	192 channels	96 channels
Load voltage range	1~100V	1~100V	3~65V	3~120V
Load current range	0.05~5A/channel	0.05~10A/channel	0.05~5A/channel	0.05~30A/channel
Load accuracy	±(1%+0.1FS)
Load module type	Energy consumption		Energy-saving
Load output mode	CC Constant Current, CV Constant Voltage
Test Area Space	6 tiers, heightwidth per tier=170mm360mm
Temperature control in the test zone	Ambient temperature to 45°C ±5°C; double-opening folding tempered glass doors; exhaust ventilation for over-temperature conditions; low-temperature heating.
Compatible with fast charging protocols	QC、PD、FCP、SCP、PPS、AFC , etc.
EUT Input Interface	AC universal socket (or customized according to customer requirements)
Load output interface	USB、Type C (or customized according to customer requirements)

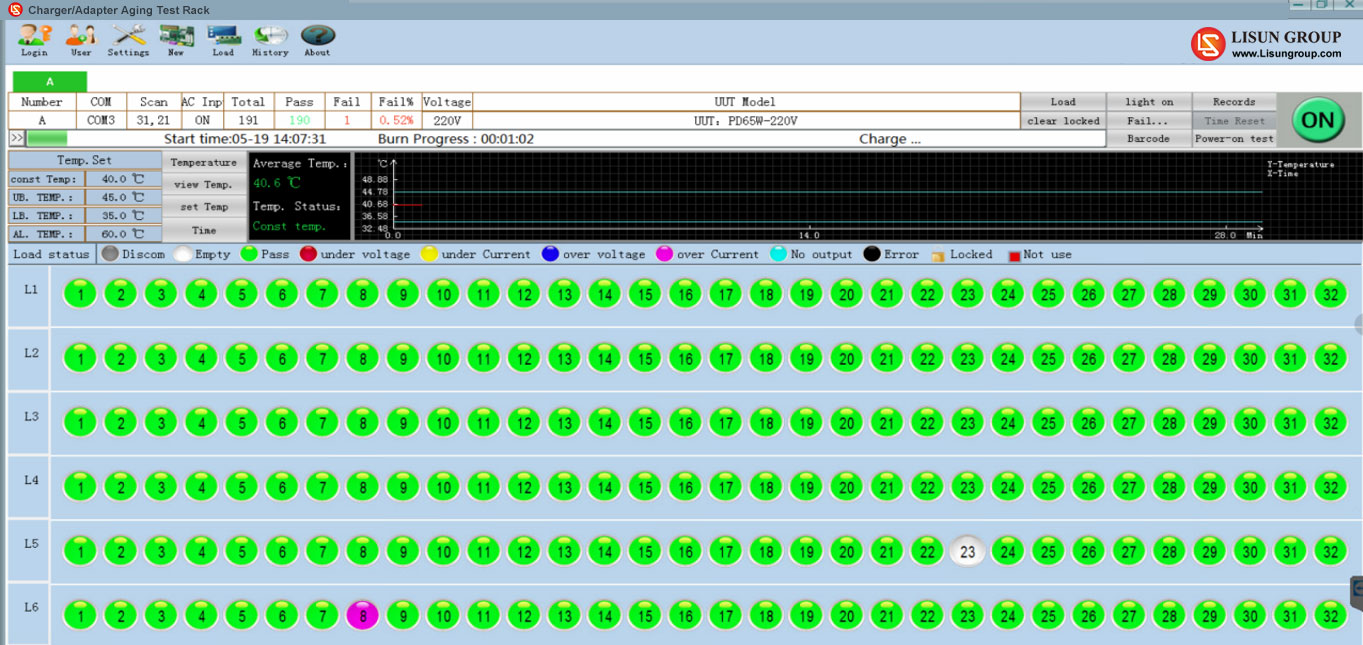

Control system	Monitoring PC + specialized power supply burn-in software (Chinese/English): Enables setting and monitoring of EUT voltage and current values, as well as programmable ON/OFF timing tests.
Aging cabinet input voltage	Three-phase 380~415V (customizable to three-phase 220~240V and LISUN model is SY65240T-65W-US)
EUT Multi-Voltage Surge Aging Test	An optional transformer control module is available for multi-voltage ON/OFF surge aging tests on the EUT. Specifications for LISUN model LS-RT30KVA-3G: 1. 30 kVA is the transformer output power (40/50/60 kVA options available); required power = single-channel load power × number of channels ÷ EUT conversion efficiency (conversion efficiency = output power / input power, typically >80%). 2. “3G” denotes three sets of surge voltages: standard settings are 90V, 110V, and 220V (customizable). 3. Standard input is three-phase 380–415V; three-phase 220–240V input is available upon request (Model: LS-RT30KVA-3G-US).
