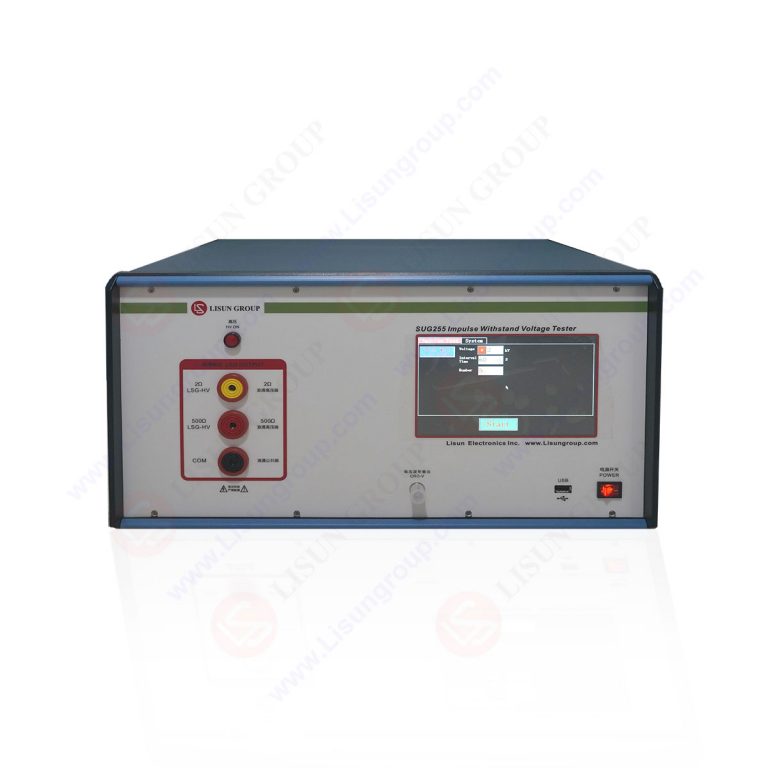

Impulse Test Generator

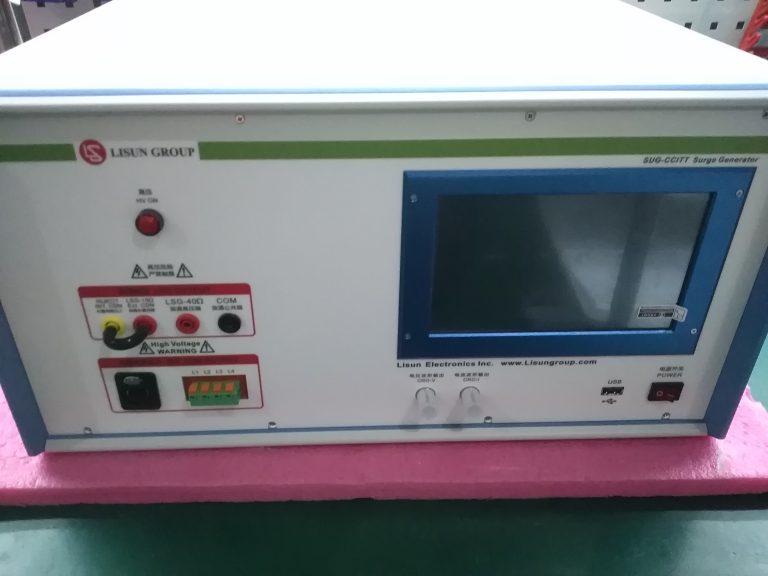

Impulse Test Generator SUG-CCITT-A (1a. 10/700μs, 6KV, figure is according to N.1 ITU-T in IEC60950-1:2005 Annex N).

Circuit reference 1 of Table N.1 generates 10/700 μs impulses (10 μs virtual front time, 700 μs virtual time to half value) as specified in ITU-T Recommendation K.44 to simulate lightning interference in the TELECOMMUNICATION NETWORK.
