Scientific Grade CCD Spectroradiometer

Product No: LMS-9500B/LMS-9500A
Get a Quote

Your email address will not be published. Required fields are marked *

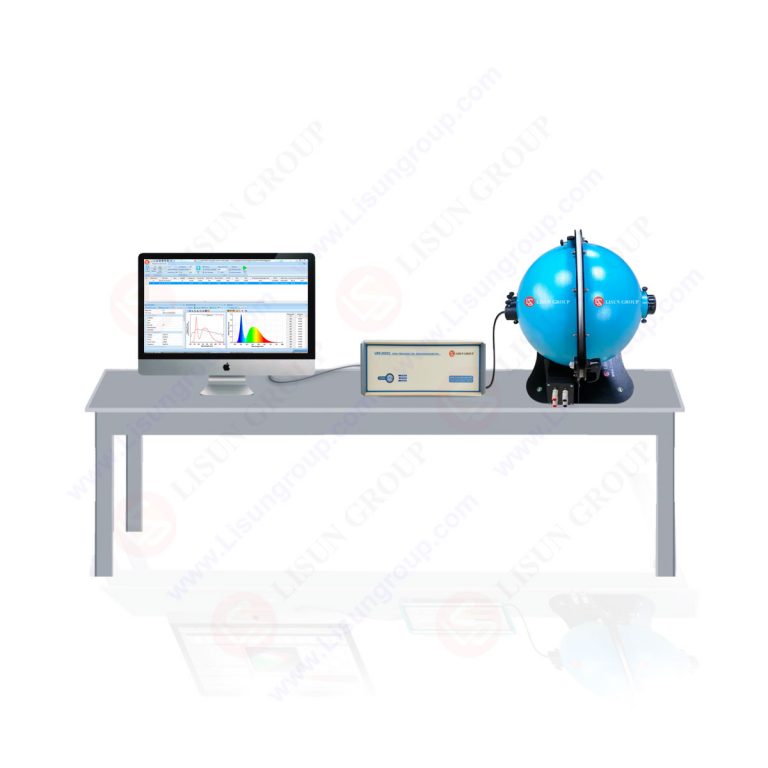

LMS-9500 Scientific Grade High Accuracy CCD Array Color Spectroradiometer fully meets Energy Star IESNA LM-79 and GB/T24824 standards etc. It is test for CFL, HID, Promise Light, Tungsten Halogen Lamps, which can reach the scientific grade measurement accuracy. LMS-9500 is composed of Concave Average Diffraction Grating and Scientific Grade CCD, and uses unique stray light control technology, wide dynamic linear technology, precision CCD electronic drive technology and complex matrix software technology, the instrument can be traceable to the Chinese National Institute of Metrology(NIM) and the USA NIST standards.

• CCD Detector: Hamamatsu TE-cooled (Temp: -10°C ±0.05°C) high sensitivity back-thinned CCD (LMS-9500B), Hamamatsu high sensitivity back-thinned CCD (LMS-9500A)
• Spectral Range Wavelength: 380nm~800nm (200~800nm and 380~1050nm are option)
• Spectral Wavelength Accuracy: ±0.2nm, Resolution: ±0.1nm, Sample Scanning Steps: ±0.1nm
• Accuracy of Chromaticity Coordinate (Δx, Δy): ±0.0015
• Correlated Color Temperature CCT: 1, 500K~100, 000K, CCT Accuracy: ±0.2%
• Color Rendering Index Range: 0~100.0, Accuracy: ±(0.3%rd±0.3)
• Photometric linear: ±0.2%, Stray light: <0.015%(600nm) and <0.03% (435nm)
• Time of integration: 0.1ms-60s
• Total flux testing method: Spectrum, Photometric and Spectrum with Photometric revision
• Spectrum senors: SMA905 optical fiber
