Product No: LMS-6000

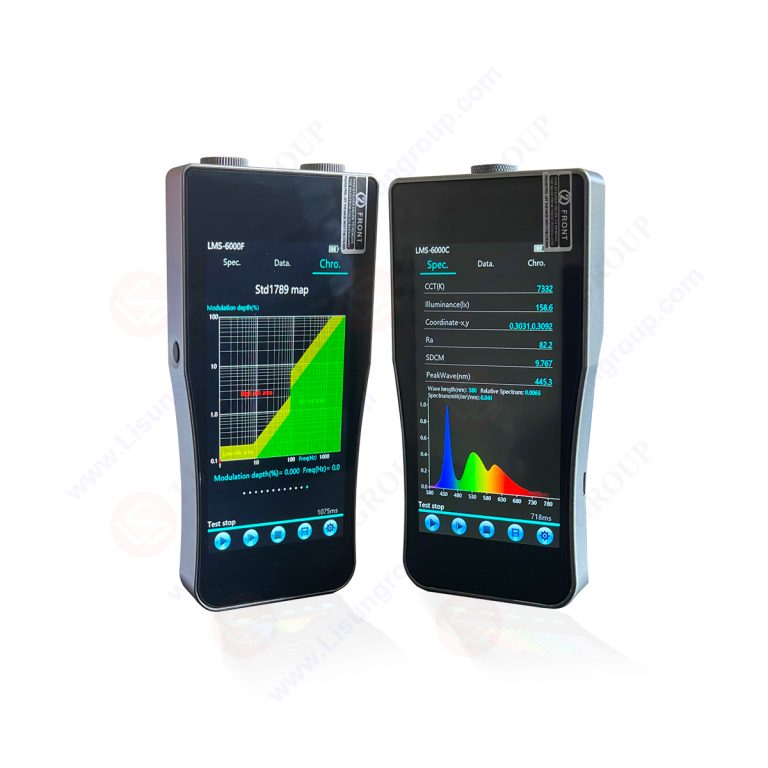

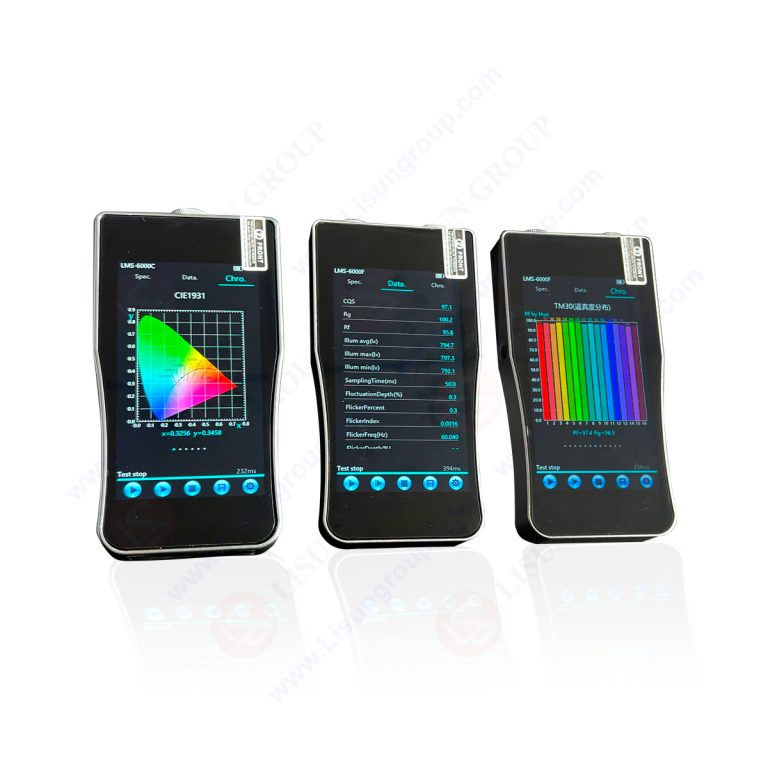

LMS-6000 series Portable CCD Spectroradiometer is a portable, on-site spectral testing instrument. It utilizes a long-focal-length, crossed-asymmetric Czerny-Turner (CT) optical system, combining laboratory-grade measurement accuracy with the convenience of a handheld device. The unit features a 5-inch high-definition IPS capacitive touchscreen and a built-in, high-capacity rechargeable lithium battery. It supports the local storage of tens of thousands of test reports and enables on-site, multi-dimensional measurement of optical and color parameters—including illuminance, luminance, color temperature, chromaticity coordinates, color rendering index (CRI), spectral distribution, flicker, blue-light hazard, horticultural lighting parameters, and Television Lighting Consistency Index (TLCI). Designed with a modular architecture, the series allows for the selection of specific functions—such as UV measurement, flicker analysis, luminance, retinal blue-light hazard assessment, horticultural lighting analysis, TLCI, and industrial I/O control—to suit diverse requirements. It is widely used for on-site inspections, production-line quality checks, project acceptance testing, and R&D benchmarking. Test data can be uploaded to PC-based software for further analysis and processing.
| LISUN Model | Product Version | Wavelength Range and Test Functions |
| LMS-6000 | Standard Version | Wavelength range 380~780 nm: illuminance, Duv, CCT, chromaticity coordinates, CRI, TM-30 (Rf/Rg), color purity, peak/dominant wavelength, full width at half maximum (FWHM), color tolerance (SDCM), and spectral distribution.. Please click here to see the LMS-6000 Test Report. |
| LMS-6000C | Economy Version | Wavelength range 380~780 nm: Full specifications for the standard version; excludes TM-30 metrics and PC-compatible software. |

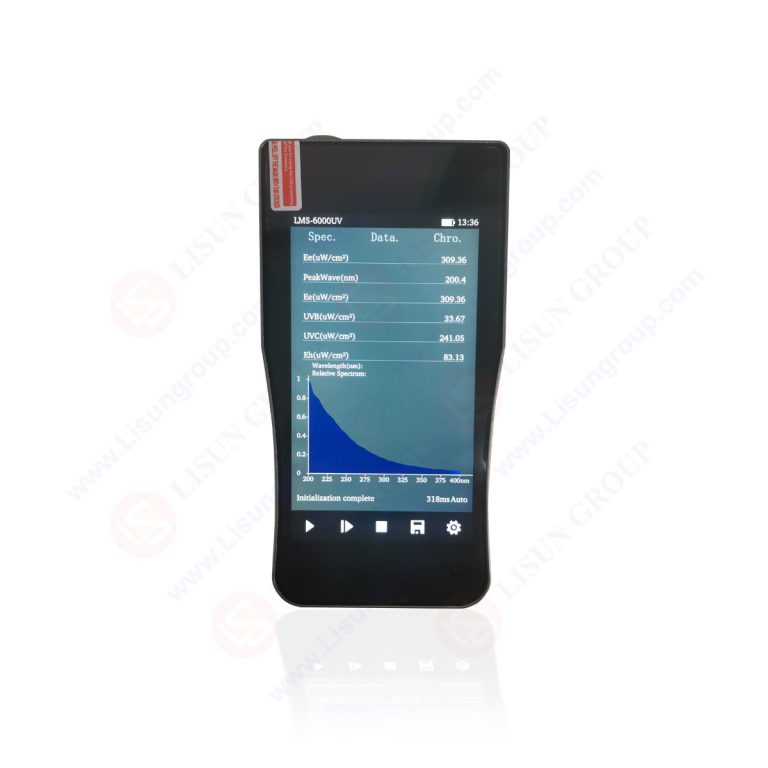

| LMS-6000UV | UV Version | Wavelength range 200~400 nm: UVA/UVB/UVC, UV irradiance, UV hazard assessment, and UV spectral analysis. Please click here to see the LMS-6000UV Test Report. |
| LMS-6000F | Flicker Version | Wavelength range 380~780 nm: All parameters from the standard version, plus flicker analysis functions such as flicker depth and flicker index.. Please click here to see the LMS-6000F Test Report. |
| LMS-6000L | Brightness Version | Wavelength range 380~780 nm: Luminance, fL (foot-lambert); includes all optical and color parameters found in the standard version. Please click here to see the LMS-6000L Test Report. |
| LMS-6000B | Blue Light Hazard Version | Wavelength range 350~800 nm: Includes all standard-version parameters plus an assessment of retinal blue-light hazard weighted irradiance, in compliance with GB/T 20145 and CIE S009/E:2002. |
| LMS-6000BF | Blue Light Hazard + Flicker Version | Wavelength range 350~800 nm: LMS-6000B – full parameter measurement plus flicker analysis. Please click here to see the LMS-6000BF Test Report. |
| LMS-6000P | Plant Lighting Version | Wavelength range 350~850 nm: Includes all standard-version parameters, plus specialized parameters for horticultural lighting such as PAR, PPFD, YPFD, spectral irradiance (by waveband), and the red-to-blue radiation ratio. Please click here to see the LMS-6000P Test Report. |
| LMS-6000S | Plant Lighting + Blue Light Hazard Version | Wavelength range 350~950 nm: LMS-6000P – full parameter set + retinal blue light hazard assessment. Please click here to see the LMS-6000S Test Report. |
| LMS-6000SF | Full-Featured Version | Wavelength 350~950 nm: LMS-6000S – full parameter set + flicker test and analysis. Please click here to see the LMS-6000SF Test Report. |
| LMS-6000TLCI | Professional Film & TV (TLCI) Version | Wavelength range 380~780 nm: All standard-version parameters + TLCI (Television Lighting Consistency Index) measurement for film and television lighting. |
| LMS-6000I | Industrial Version | Wavelength range 380~780 nm: Includes all specifications of the standard version, plus an RS485 interface and input/output control for automated integration. |
Specifications:
| Items | Specifications |
| Optical Spectroscopy Platform | Long-focal-length crossed asymmetric CT spectroscopic system |
| Wavelength Accuracy | ±0.5 nm |
| Spectral resolution | ±0.2 nm |
| Sample Scanning Interval | 0.1 nm (Adjustable) |
| Chromaticity Coordinate Accuracy | Δx、Δy ≤ ±0.005 |
| Correlated Color Temperature Range | 1,500 K~100,000 K |
| Color Temperature Accuracy | ±0.6 % |
| Color Rendering Index | 0~100.0；accuracy ±(0.3 % rd ±0.3) |
| Photometric Linearity | ±0.6 % |
| Stray Light | ＜0.015 %@600 nm；＜0.03 %@435 nm |
| Integration Time | 0.1 ms~5 s |
| Display Screen | 5-inch HD IPS capacitive touchscreen, 480*854 resolution |
| Power-supply Battery | 4,000mAh rechargeable lithium battery, providing up to 20 hours of continuous operation |
| Overall Dimensions | 135 mm*80 mm*23 mm |
| Local Storage | 8GB, can store 5,000–100,000 test reports |
| PC Software | Software available in Chinese and English; compatible with Win7/Win8/Win10/Win11; supports exporting test reports. |
LISUN LMS-6000 Portable CCD Spectroradiometer – After-sales Frequently Asked Questions (FAQ)
LISUN LMS-6000 Portable CCD Spectroradiometer were in the market for more than 10 years, LISUN engineers service team already summary the most of the After Sales Questions and Answers in the above link. Please read it carefuly, you can solve the most of the problems by yourself if you have some questions while using the instruments. LISUN will be continue to update this pages and more FAQ can be found in this topic link.
