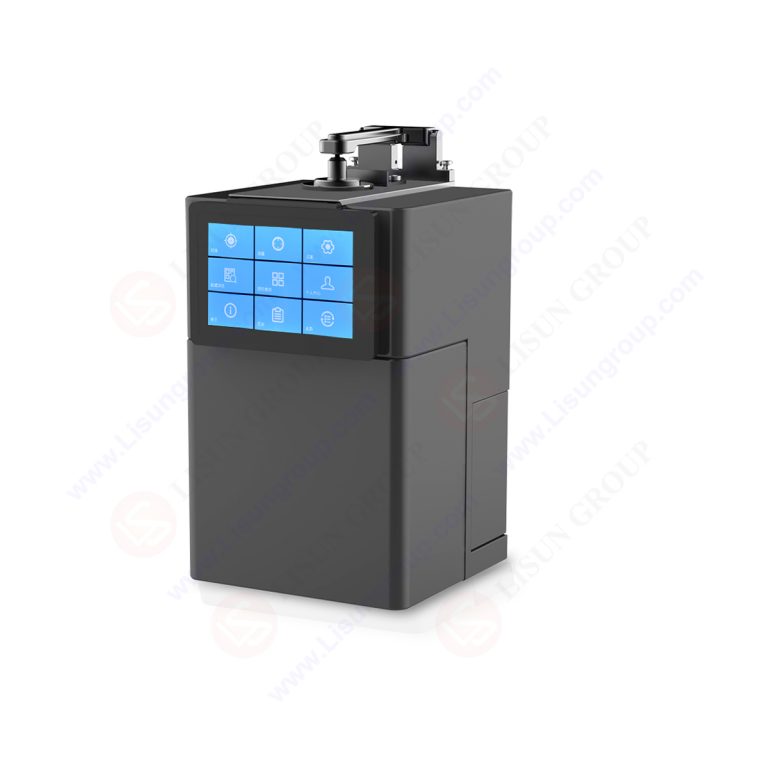

Benchtop Spectrophotometer (Reflectance and Transmittance)

Product No: DSCD-920

Leave a Message

=
  • Description
  • Video
  • Download
  • Benchtop Spectrophotometer (Reflectance and Transmittance) DSCD-920 adopts 7 inches touch screen, full wavelength range, Android operate system. Illumination : reflectance D/8° and transmittance D/0°(UV included / UV excluded), high accuracy for color measurement, large storage memory, PC software, because of above advantages, it is used in laboratory for color analysis and communication

    Introduction:
    • Adopts reflectance D/8° and transmittance D/0° geometry to measure both opaque and transparent materials.

    • Dual Optical PathsSpectrum Analysis Technology
    This technology can simultaneous access to both measurement and instrument internal environmental reference data to ensure instrument accuracy and long-term stability.

    • Compatible with SCI/SCE measurement, Support SCI+SCE Measurement
    Instrument adopts D/8 geometry which is highly recommends by CIE (International Commission on Illumination) to meet color measurement of different industries.It supports both SCI (specula component included) and SCE (specular component excluded) mode for better detect of color change.Fast SCI+SCE measurement, test time only need less than 4s.

    • Rotatable Touch Screen with Android Operate System
    Screen position and direction can be adjusted according to the instrument test methods.

    • Open Transmittance Measurement Area, no limit on sample size

    • Different Kinds of Accessories for simple measurement
    It contains 15 kinds of standard and 12 kinds of optional accessories to measure different kinds of materials

    • Accessory Drawer to Protect and Store Accessories

    • Switchable Reflectance Apertures

    • Four Kinds of UV Test Modes for Fluorescence Material Measurement

    Instrument Structure Introduction

    DSCD-920

    Specifications:

    Illumination/ Viewing System

    Reflection: d/8(Diffused illumination, 8 degree viewing)

    Simultaneous measurement of SCI/SCE (ISO7724/1, CIE No.15, ASTM E1164, ASTM-D1003-07, DIN5033 Teil7, JIS Z8722 Condition C standard)

    Transmittance d/0(Diffused illumination, 0 degree viewing )

    Sensor

    Silicon Photodiode Array

    Grating Method

    Concave Grating

    Sphere Diameter

    152mm

    Wavelength

    360-780nm

    Wavelength Pitch

    10nm

    Half Band Width

    5nm

    Reflectance Range

    Resolution

    0-200%

    0.01%

    Light Source

    Pulse Xenon Lamp and LED

    UV Measurement

    Include UV, 400nm cut, 420nm cut, 460nm cut

    Measurement Time

    SCI/SCE < 2s

    SCI+SCE < 4s

    Measurement Aperture

    Reflectance: XLAV Φ30mm, LAV 18mm,MAV Φ11mm,SAV Φ6mm

    Transmittance:Φ25mm

    (Auto aperture size recognition)

    Transmittance Sample Size

    No limit on sample width and height, thickness ≤50mm

    Repeatability

    XLAV Spectrum Reflectance/Transmittance: standard deviation within 0.1%

    XLAV Chromaticity value: Standard deviation within ΔE*ab 0.015 * When a white calibration plate is measured 30 x at 5-second intervals after white calibration

    Inter-Instrument Agreement

    XLAV ΔE*ab 0.15 (BCRA Series II, Average measurement of 12 tiles, at 23℃)

    Illuminants

    A, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, DLF, NBF, TL83, TL84

    Language

    English, Russian, Spanish, Portuguese, Japanese, Thai, Korean, German, French, Polish, Chinese (simple and traditional)

    Display

    Reflectance and Transmittance graph/value, color value, color difference values, pass/fail, color simulation, color assessment, haze, liquid chromaticity values, color tendency

    Viewing Angles

    2° and 10°

    Color Spaces

    L*a*b, L*C*h, Hunter Lab, Yxy, XYZ

    Other Indices

    WI(ASTM E313-00,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Stensby)

    YI(ASTM D1925, ASTM E313-00, ASTM E313-73), Tint(ASTM E313-00), Metamerism index milm, stain fastness, color fastness, ISO brightness, R457, A density, T density, E density, M Density, APHA/Pt-Co/Hazen, Gardner, Saybolt, ASTM color, Haze, Total Transmittance, Opacity, Color Strength

    Color Difference

    ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc, ΔE*94, ΔE*00, ΔE*ab(hunter),555 shade sort

    Storage Memory

    8 GB U Disk for data storage and transfer

    Screen Size

    7 Inches Touch Screen

    Power

    12V/3A

    Operate Temperature

    5-40℃(40-104F), relative humidity 80% (at 35℃) no condensation

    Storage Temperature

    -20-45℃(-4-113F), relative humidity 80% (at 35℃) no condensation

    Accessories

    Power Adaptor, USB Cable, fixture for transmittance, U disk (PC software), Black Calibration Cavity, White and Green Calibration Tile,0% Calibration Tile (transmittance), Reflectance Test Support,30mm,18mm,11mm and 6mm apertures, reflectance sample fixture, Glass Cell 40x10mm

    Optional Accessories

    Heating Fixture for Transmittance, Vertical Support and Pneumatic ram for downward measurement, Reflectance fixture for small size sample, Reflectance Glass Cell Support, Corrosion-Resistant Protective Plate (non-removable), Sample Holder for Fiber, Film Fixture, Transmittance Fixture for Small Aperture, Trolley Case, European Standard Plug, American Standard Plug

    Interface

    USB, USB-B and RS-232

    Instrument Size

    465x240x260mm

    Weight

    10.8kgs

    Other Function

    1. Camera to view measurement area;

    2. Support horizontal, vertical and downward measurement method (need optional accessories to support for downward measurement);

    3. Auto humidity and temperature compensation function.

    Applications:
    • Plastic Plate Color Measurement
    • Powder Material Color Measurement
    • Petroleum and Oil Color and Transmittance Measurement
    • Textile and Yarn Color Measurement
    • Master Batches and other Pellet Material Color Measurement
    • Printing Ink and Packing Material Color Measurement
