Isolation Transformer

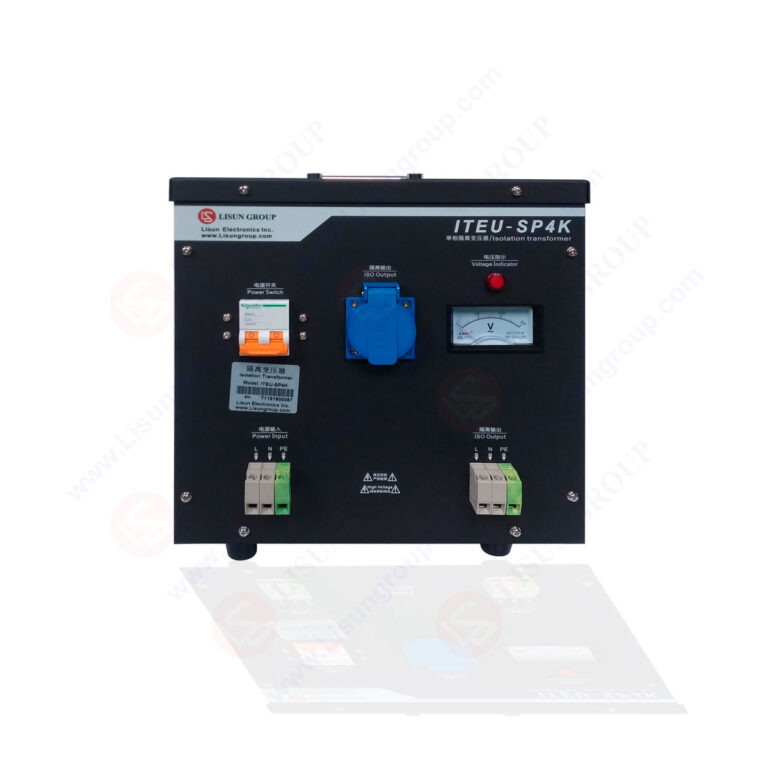

Product No: ITEU-SP4K

Leave a Message

=
  • Description
  • Isolation transformer refers to a transformer with electrical isolation between the input winding and the output winding. The isolation transformer is used to avoid accidentally touching the charged body at the same time. The isolation of the transformer is to isolate the respective currents of the primary and secondary coils. It is widely used in industrial and mining enterprises and electronics industry, precision instruments, medical equipment, machine tools and machinery. LISUN Surge Generator need to match isolation transformer to work smoothly.

    Specifications:
    • Input voltage = Output voltage = Customer’s local rated voltage (Please inform the exactly input voltage when order)
    • Single phase output current = Power * 80%/Output voltage
    • Three-phase output current = Power * 80%/1.732/Output voltage
    • Output Power = Actual power * 1.5

    Model

    Input voltage

    Output voltage

    Input/Output Power

    ITEU-SP4K

    220-240V

    220-240V

    Single Phase/4KVA

    ITEU-SP5K

    220-240V

    220-240V

    Single Phase/5KVA

    ITEU-SP10K

    220-240V

    220-240V

    Single Phase/10KVA

    ITUS-SP2K

    110-120V

    110-120V

    Single Phase/2KVA

    ITUS-SP5K

    110-120V

    110-120V

    Single Phase/5KVA

    ITEU-TP20K

    316-480V

    316-480V

    Three Phases/20KVA

    ITUS-TP10K

    200-260V

    200-260V

    Three Phases/10KVA
