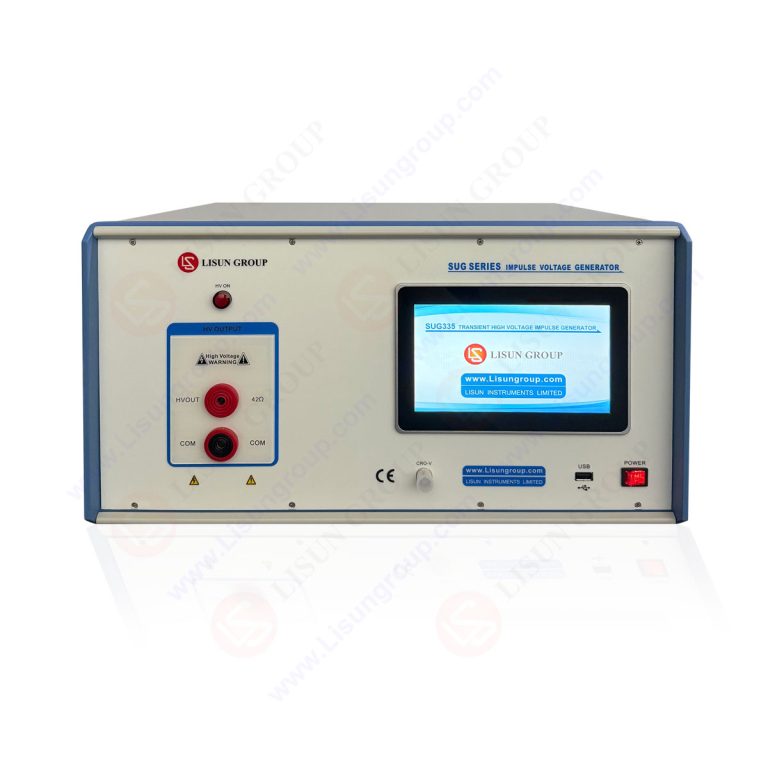

Transient High Voltage Impulse Generator | IEC60335

Product No: SUG335

Leave a Message

Description
Video
Download

The SUG335 Transient Overvoltage Tester is a high-precision instrument designed by LISUN specifically for transient voltage testing of electrical products (EUT). It output a 1.2/50µs standard lightning surge waveform, capable of performing surge tests at intervals as fast as 1s. The SUG335 accurately simulates sudden transient voltage in circuits, helping to verify compliance with regulatory requirements for equipment safety clearances and providing reliable support for the safety performance verification of electrical products (EUT). It is widely used for testing of LED lighting, household appliances, low-voltage electrical appliances, energy meters and residual current operated circuit breakers.

Standards:

Standards No.	Standards Name
IEC 60335-1:2020	Household and similar electrical appliances – Safety – Part 1: General requirements
IEC 62052-11:2018	AC electricity metering equipment – General requirements, tests and test conditions – Part 11: Metering equipment
IEC 61008-1:2022	Residual current operated circuit-breakers without integral overcurrent protection for household and similar use – Part 1: General rules
IEC 61009-1:2022	Residual current operated circuit-breakers with integral overcurrent protection for household and similar use – Part 1: General rules
IEC 60947-1:2020	Low-voltage switchgear and controlgear – Part 1: General rules
IEC 60060-1:2010	High-voltage test techniques – Part 1: General definitions and test requirements
IEC 62053-21:2018	AC electricity metering equipment – Particular requirements – Part 21: Static meters for active energy (classes 1 and 2)
GB 4706.1-2005	家用和类似用途电器的安全第 1 部分：通用要求
GB/T 17215.211-2022	交流电测量设备通用要求、试验和试验条件第 11 部分：测量设备
GB 16916.1-2022	家用和类似用途的不带过电流保护的剩余电流动作断路器（RCCB）第 1 部分：一般规则
GB 16917.1-2022	家用和类似用途的带过电流保护的剩余电流动作断路器（RCBO）第 1 部分：一般规则
GB 14048.1-2020	低压开关设备和控制设备第 1 部分：通用要求
GB/T 16927.1-2011	高电压试验技术第 1 部分：一般定义及试验要求
GB/T 17215.321-2022	交流电测量设备特殊要求第 21 部分：静止式有功电能表（1 级和 2 级）

Specifications:

Parameters	Detail Specs
Lightning waveform leading edge time	1.2 µs ± 30%
Falling waveform half-value time	50 µs ± 20%
Surge voltage range	1~12.5 kV，Accuracy ≤±3%
Output impedance	42Ω
Surge interval	1~99s (Adjustable, in accordance with IEC 60335:2010+A1:2013, page 43, clause 14)
Surge count	1~9,999 times (settable)
Surge polarity	Positive and negative
Waveform detection	Built-in surge voltage probe (1000:1), connect with LISUN OSP1102 Oscilloscope directly

Applications:
1. Household and Similar Appliance Testing: Based on the IEC 60335 standard, this test tests the safety performance of household appliances such as refrigerators, washing machines, and air conditioners under transient overvoltage shocks. This verifies that the equipment’s safety clearances meet standards and prevents equipment failures or safety accidents caused by transient voltages.

2. Low-Voltage Appliance Testing: This test simulates lightning transient voltages for low-voltage electrical appliances such as circuit breakers and contactors covered by the IEC 60947 standard, testing their interference immunity and operational reliability to ensure proper operation during transient power grid fluctuations.

3. Energy Meter Testing: Based on the IEC 62053 standard, this test performs transient overvoltage tests on Class 1 and Class 2 static AC active energy meters to verify their measurement accuracy and operational stability in transient voltage environments.

4. Residual Current Operated Circuit Breaker (RCCB/RCBO) Testing: Based on IEC 61008-1/IEC 61009-1, this test verifies the residual current operating performance of RCCBs and RCBOs in transient overvoltage scenarios to ensure that their protection against electric shock and equipment leakage is not affected by transient voltages.

Tags：SUG335 , Transient Over-voltages Tester
