Product No: LS-B07

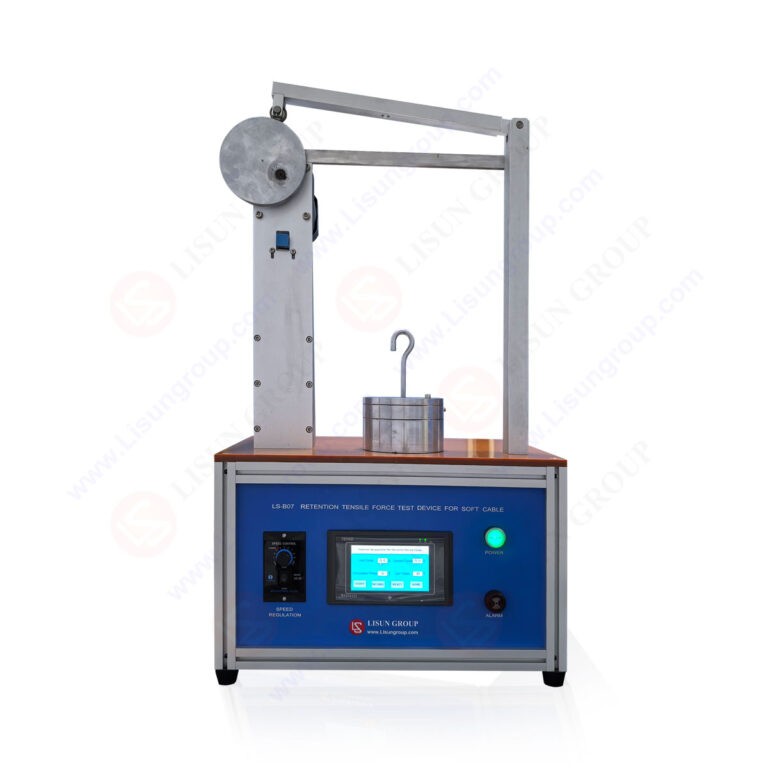

The LS-B07 Retention Tensile Force Test Device for Flexible Cables is specifically designed to inspect the fixation of plug or socket wires to electrical accessories. This device applies a corresponding force to the sample through a specific mechanical structure, observes the connection between the wire and accessory, and thus determines whether the fixation meets specified requirements. This provides effective inspection support for quality control of related products, ensuring the stability of the wire connection during product use.
Standards:
| Standards | Standards Name |
| IEC 60884-1:2022 | Plugs and socket-outlets for household and similar purposes – Part 1: General requirements |
| EN 50075:1990 | Plugs, socket-outlets and couplers for household and similar purposes – Safety requirements |
| GB/T 2099.1-2021 | 家用和类似用途插头插座 第 1 部分：通用要求 |
Specification：
| Display Touch Screen | Color touch screen + PLC |
| Drive Mode | Gear motor |
| Eccentric Wheel | Effective diameter φ125 |
| Eccentricity of the Eccentric Wheel | 32.5mm |
| Sample Distance from Pivot | 200mm |
| Sample Distance from Impact Point of Eccentric Wheel | 160mm |
| Weights | Combination of 50N, 60N, 80N, 100N weights |
| Number of Tests | Presettable from 0 to 9999 |
| Duration of Force Application Control | Adjusted by speed controller, with screen displaying the duration of force application |
| Test Completion Alarm | Audio-visual alarm |
Typical Applications:
1. Inspection of the secure fastening of household plug wires and electrical accessories
2. Reliability testing of the connection between household socket wires and electrical accessories
3. Inspection of the wire fastening in electrical accessories for similar purposes
4. Quality inspection of plug and socket products that meet relevant standards
IEC 60884 1 Figure 27
