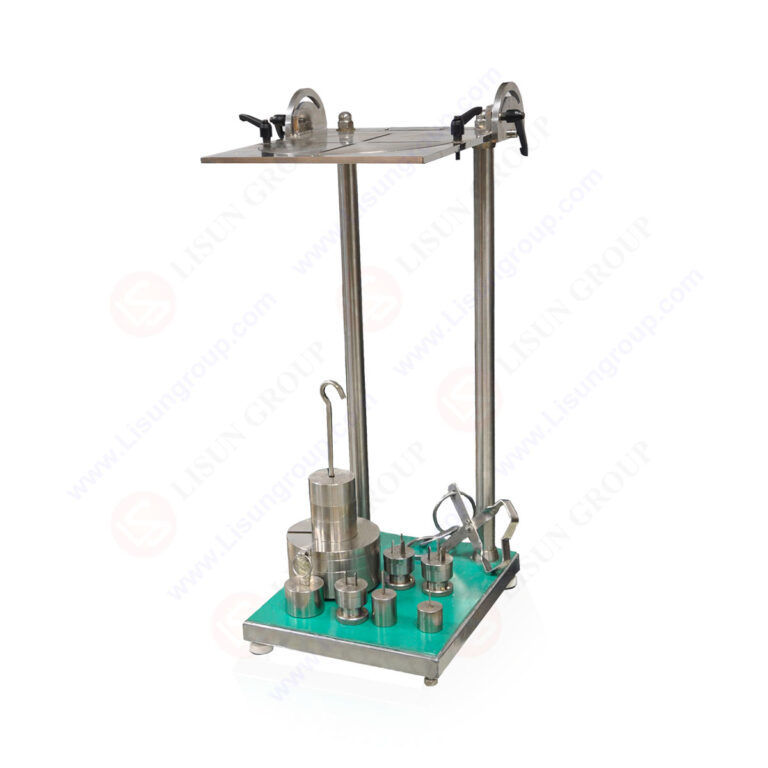

Max & Min Pull-out Force and Lateral Strain Resistance Test Apparatus
Max & Min Pull-out Force and Lateral Strain Resistance Test Apparatus

Max & Min Pull-out Force and Lateral Strain Resistance Test Apparatus

Product No: BCL-1

Leave a Message

=
  • Description

  • The BCL series Max & Min Pull-out Force and Lateral Strain Resistance Test Apparatus  is designed to check the force required to pull a plug out of a socket and the socket’s ability to withstand lateral stress. By means of supporting standard test plugs, pins and weight assemblies, the device simulates the force conditions during plug insertion and extraction in actual service scenarios to determine whether the withdrawal force meets operational requirements. Meanwhile, it utilizes lateral stress application components to simulate the lateral force that may be generated by electrical appliances plugged into the socket, assessing the socket’s structural stability under such stress conditions and ensuring that it does not malfunction due to lateral stress during daily use. This device is applicable to plugs and sockets for household and similar purposes, covering the product testing needs within specific rated voltage and rated current ranges.

    Standards：

    Standards Standards Name
    IEC 60884-1:2013 Plugs and socket-outlets for household and similar purposes—Part 1: General requirements
    GB/T 2099.1-2021 《家用和类似用途插头插座 第 1 部分：通用要求》

    Specifications:

    LISUN Model BCL-1 BCL-2 BCL-3 BCL-4
    Test Function Max and min pull-out force + Lateral Strain Max and min pull-out force Lateral Strain
    Max Current 0~16A 0~16A 0~32A 0~16A
    Main Weight 21.5N、9N、12.6N one piece each N/A
    Additional Weight 4N、5N 、5.4N one piece each N/A
    Clamping Device 1N，quantity：1 个 N/A
    Weight Tray 10N，quantity：1 个 N/A
    Test Rack One unit, dimension：280*250*590mm
    The max pull-out force gauge/Lateral Strain gauge 2-pole 10A, 3-pole 10A and 16A 2-pole 10A，3-pole 10A and 16A，3-pole 32A 2-pole 10A，3-pole 10A and 16A
    Minimum pull-out force gauge/weight 10A/1.5N，16A/2N 10A/1.5N，16A/2N 10A/1.5N，16A/2N，32A/3N N/A
    Transverse stress weights 5N，quantity：1pc N/A 5N，quantity：1pc
    Transverse stress crossbar 1pc N/A 1pc

    IEC 60884-1 Figure 25 Apparatus for verification of maximum withdrawal force

    IEC 60884-1 Figure 25

    IEC 60884-1 Figure 26 Apparatus for verification of maximum withdrawal force

    IEC 60884-1 Figure 26

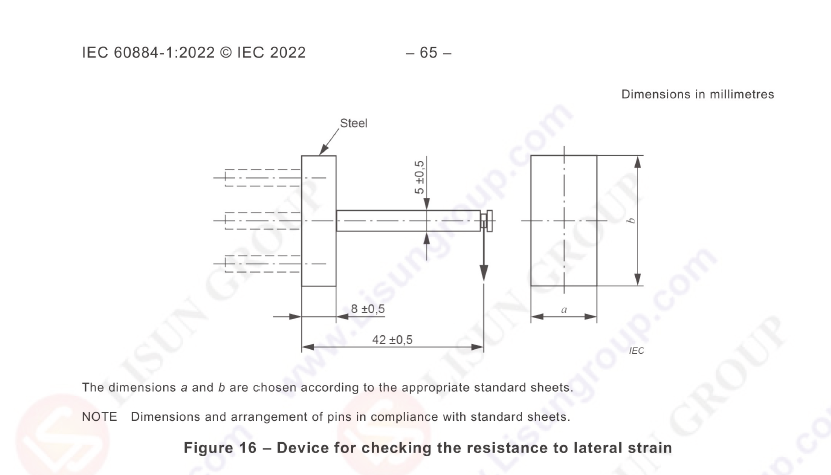

    IEC 60884-1 Figure 16

    IEC 60884-1 Figure 16
