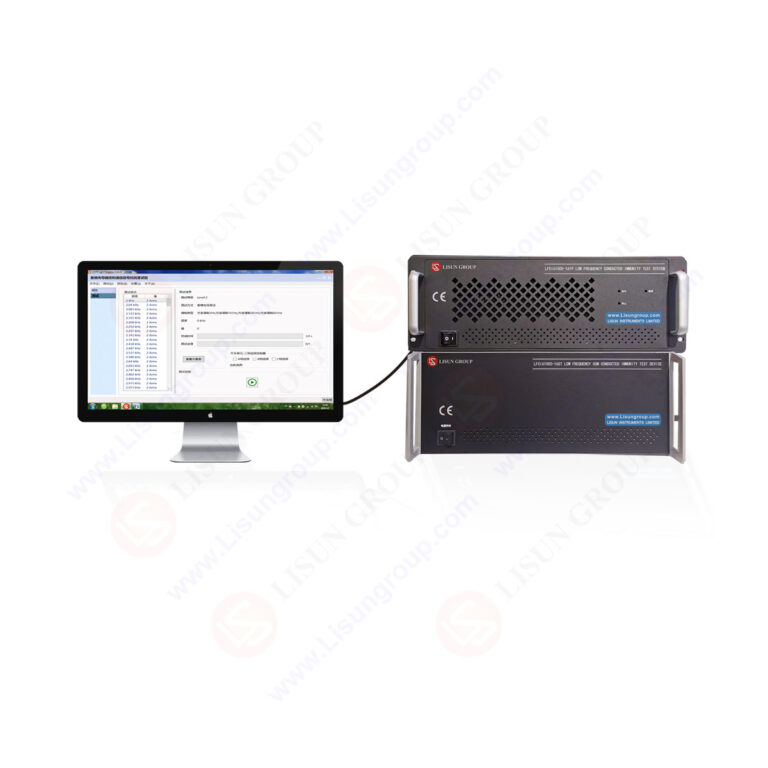

Low Frequency Conducted Immunity Test System

LFCI61000-1619 Low Frequency Conducted Immunity Test System with various testing accessories such as co-anti-disturbance test devices, coupling removal network, and current injection device can meet different test needs. The low-frequency common mode/differential mode conducted immunity testing system is capable of simulating the fundamental frequency, major harmonics, and interharmonics of power distribution systems or power electronic devices (such as power converters). The interference can be injected into the grounding system through stray capacitance or coupled onto the signal and control lines through induction.

Standard:
IEC/EN 61000-4-19 (GB/T17626.19) “Ectromagnetic compatibility (EMC) – Part 4-19: Testing and measurement techniques – Test for immunity to conducted, differential mode disturbances and signalling in the frequency range 2 kHz to 150 kHz at a.c. power ports”
IEC/EN 61000-4-16 (GB/T17626.16) “Ectromagnetic compatibility (EMC) – Part 4-16: Testing and measurement techniques – Test for immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz”
JJF 1245.4-2019 “Outline of Type Evaluation of Installed AC Energy Meters-Special Requirements and Safety Requirements”
IEC 62052-11 (GB/T17215.211) “electricity metering equipment – General requirements, tests and test conditions – Part 11: Metering equipment”
IEC/EN 60255-22-7 (GB/T 14598.19) “Electrical relays – Part 22-7: Electrical disturbance tests for measuring relays and protection equipment – Power frequency immunity tests”

Aplication:
Intelligent meters utilize PLC data transmission for smart metering; touch dimming lights; communication systems (such as Ethernet systems, ISDN, ADSL modems, IP network branch switches, routers); contactless card readers, credit card terminals; alarm systems; electronic controls (such as heating systems, streetlights, traffic lights); household appliances (such as steam irons, coffee machines, microwaves, washing machines), etc.

Technical configuration:

Typic Appications 1: LFCI61000-1619, LFCI61000-19IN and LFCI61000-V1.0 are fully compliant with IEC 62052-11 (GB/T17215.211), which is a specialized standard for the electric energy meter industry.

Typic Appications 2: The LFCI61000-1619, LFCI61000-19IN, CDND-M3-16, CAL-CDND19 and LFCI61000-V1.0 completely comply with the differential mode voltage test and differential mode current test requirements of IEC/EN 61000-4-19 (GB/T17626.19).

Table 1 – Test levels in the 2kHz to 150kHz frequency range for differential voltage testing

Table 2-Test levels in the 2kHz to 150kHz frequency range for differential current testing

IEC/EN 61000-4-19 Clause 5.1 Differential Model Voltage Test Technical Parameters

IEC/EN 61000-4-19 Clause 5.2 Differential Model Current Test Technical Parameters

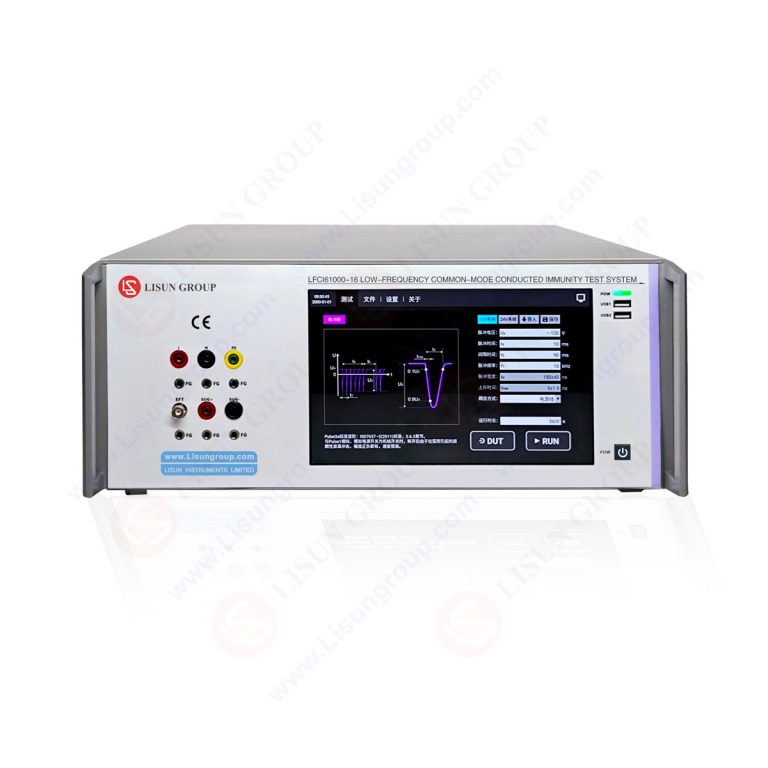

Typic Appications 3: LFCI61000-1619, LFCI61000-16ST, CN-M2-16-DC (or CN-M4-32) and LFCI61000-V1.0 fully comply with the requirements of IEC/EN 61000-4-16 (GB/T17626.16) for continuous disturbance, short-term interruption disturbance, and testing within the frequency range of 15Hz to 150kHz.

Test levels for continuous disturbances at the electricity supply frequency(Table 1 of EN61000-4-16)

Test levels for short duration disturbances at the electricity supply frequency(Table 2 of EN61000-4-16)

Test levels for continuous disturbances in the frequency range 15Hz to 150kHz (Table 3 of EN61000-4-16)

IEC/EN 61000-4-16 Table 1 Levels for continuous disturbance Technical Parameters:

IEC/EN 61000-4-16 Table 2 Level for short duration disturbance Technical Parameters:

IEC/EN 61000-4-16 Table 3 Test Level in the frequency range 15Hz to 150kHz Technical Parameters:
