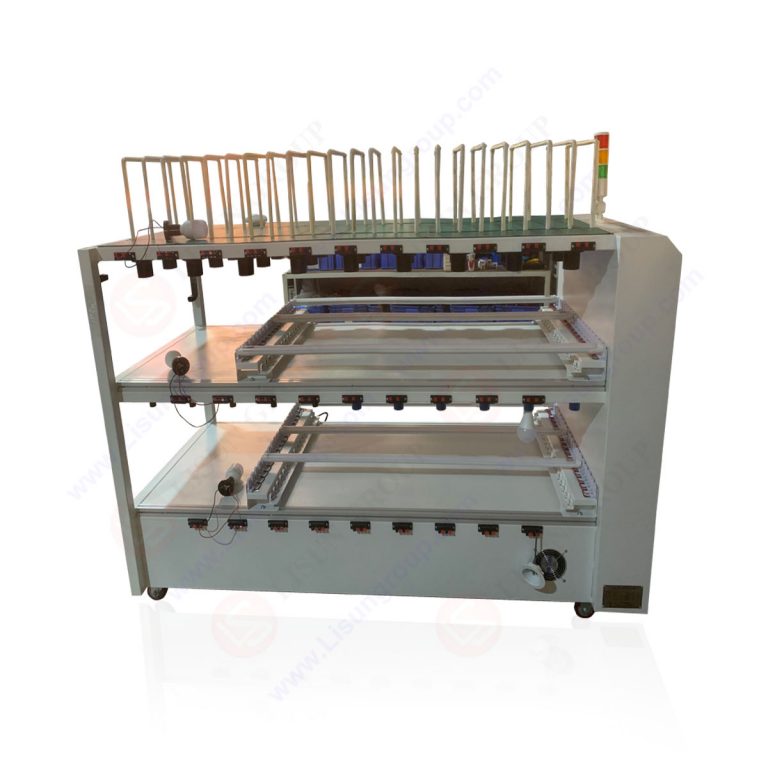

LED Aging and Life Test Rack

Product No: SY2036

Leave a Message

  • Description
  • Video
  • SY2036 LED aging and life test rack is fully designed according to the IEC standards, and it can also be designed based on the customer request. SY2036 can test all kinds of lamps and luminaires, such as LED, CFL, HID indoor lamp and outdoor lamp.

    • PLC program and English/Chinese touch screen, easy for the operation and maintenance.
    • Built in over-current protection system. When the load’s current becomes too high, the device will give alarm and switch off the output to protect the transformer.
    • Contains 3 independent floors and each can work separately. It can test different kinds of EUT.

    • Input Power supply: AC220V, 50/60HZ, 12KVA Min (110V is optional)
    • Built-in transformer: 0-250V 5KVA and 0-300V 5KVA (Other power is optional)
    • Maximum power for EUT: 5KVA and 12A (Other power is optional)
    • EUT and Number: 112pcs B22, 112pcs E27. 36pcs T5/T8/T12 Tube. 22pcs LED panel (Other EUT can be designed according to customer request)
    • ON/OFF test: Can be set on the touch screen with program
    • Test cycles: 0~99999(Adjustable)

    Here are some photos about the standard aging rack:

    LED Luminaires Aging Rack 1

    LED Luminaires Aging Rack 2

    LED Luminaires Aging Rack 3

    LISUN SY2036 LED Aging and Life Test Rack – After Sales Questions and Answers.
    LISUN SY2036 LED Aging and Life Test Rack were in the market for more than 10 years, LISUN engineers service team already summary the most of the After Sales Questions and Answers in the above link. Please read it carefuly, you can solve the most of the problems by yourself if you have some questions while using the instruments. LISUN will be continue to update this pages and more FAQ can be found in this topic link.
