CCD Spectroradiometer

Product No: LMS-7000

Get a Quote

Your email address will not be published. Required fields are marked *

  • Description
  • Video
  • Download
  • LMS-7000 Fiber Optic CCD Color Spectroradiometer  is applied with TOSHIBA TCD1304DG linear array CCD detector. The measurement speed is very quick and cost-saving.
    • The following wavelength range is with 0.8nm FWHM:

    LMS-7000UV LMS-7000UV-VIS LMS-7000VIS LMS-7000VIS-NIR LMS-7000UV-VIS-NIR
    200~400nm 200~800nm 380~800nm 380~1050nm 200~1050nm

    • Integration time: 1ms to 60s
    • CCD detector is 3648pix which size is 8μm×200mμm
    • SNR (Signal to Noise Ratio) is 1000: 1 (Full range). A/D is 16bit
    • Communicate with PC by USB2.0. The software has a rich re-develop platform which can run on WinXP/7/8/10.
    • Optical port is SMA905

    Typical Application:

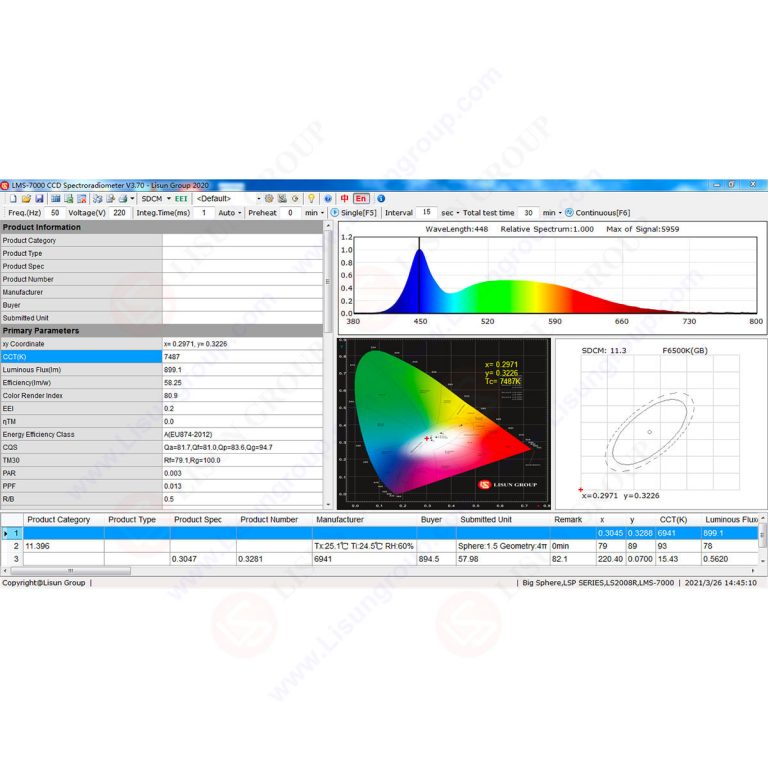

    The LMS-7000 is for LED color & lumen test. It works with integrating sphere and standard lamp as a system: LPCE-3 CCD Spectroradiometer Integrating Sphere Compact System. This system can do the following test.

    Measurement:
    Colorimetric: Chromaticity Coordinate (x, y) and (u, v), Relative Spectral Power Distribution P(λ), Correlated Color Temperature (Tc), Color Rendering Index (Ra, R1 to R15), Color Difference, Dominant Wavelength, Peak Wavelength, Half-bandwidth, Spectral Purity, TM30 (Rf, Rg), CQS
    Photometric: Luminous Flux (Lumen), Luminous Efficiency, Radiant Power, EEI, PAR, PPF

    Specification:
    • Spectral Resolution: ±0.2nm
    • Reproducibility: ±0.5nm
    • Accuracy of Chromaticity Coordinate (Δx, Δy): ±0.003
    • Correlated Color Temperature CCT: 1, 500K ~ 25, 000K (±3%)
    • High spectral resolution, high sensitivity and excellent reliability

    Other Applications:
    The LMS-7000 can also work with other accessories. It can be used in the following field and area. Please contact LISUN sales dept for the detail solution and price.

    LMS-7000 CCD Spectroradiometer

  • CCD Spectroradiometer
