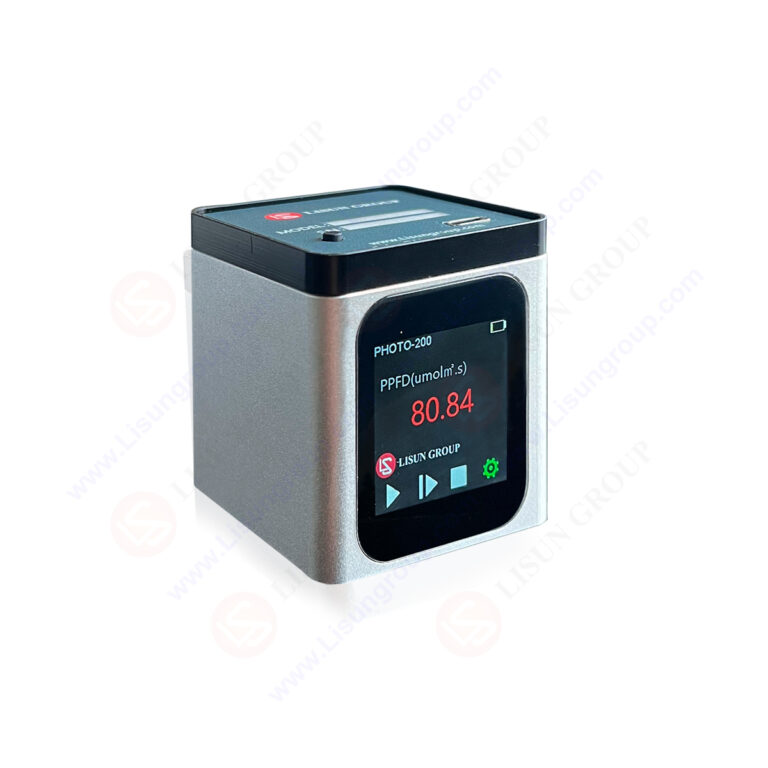

Lux Meter | Brightness Meter | PPFD Meter | UV Irradiance Meter

Product No: PHOTO-200

Get a Quote

Your email address will not be published. Required fields are marked *

  • Description
  • The PHOTO-200 series Lux Meter | Brightness Meter | PPFD Meter | UV Irradiance Meter use high-precision linear optoelectronic sensor, which has the characteristics of lightweight, stable performance, high accuracy, high cost performance, and easy carrying. Widely used on -site lighting measurement, the research and development of light source products, quality monitoring of production lines, and plant factories.

    Specification:

    Probe precision

    Class 1 (± 4%reading ± 1 reading)

    Measuring repetitiveness

    ±0.5%

    Display method

    Touch screen (can expand: PC, mobile APP)

    Screen Size

    1.54 “IPS HD LCD touch screen

    Screen type

    180 degrees rotation

    communication method

    USB、Bluetooth

    Charging interface

    Type-C

    Power supply

    1600MA lithium battery

    Continuous work time

    It can be used for about 12 hours at a time

    Product Size

    65mm*60mm*60mm

    Product weight

    Aluminum alloy body, 100g

    Secondary development

    Support

    Order Model:

    LISUN Model

    Product Name

    Test Parameters and Specification

    PHOTO-200

    Pocket Illuminance Meter

    Illuminance lux test range (380-780nm): 0.1-500,000lx (+/-0.1lx), upper and lower limit settings, sorting tests, optical change curves (PC software), illuminance, average illuminance, maximum illuminance, minimum illuminance, point illumination, illuminance transmission (%)

    PHOTO-200L

    Pocket Brightness Meter

    Brightness test range (380-780nm): 0.1-500,000cd/m² (+/-0.1cd/m²), upper and lower limit settings, sorting test, light change curve (PC software), brightness, average brightness, maximum brightness, minimum brightness, points brightness, brightness transmission (%)

    PHOTO-200P

    PPFD Sensor and Lux Meter

    illuminance lx, PPFD umol/m².s (400-700nm) test range: 0.1-500,000umol/m².s (+/-0.01umol/m².s) , Up and down limit settings, sorting tests, optical change curves (PC software), PPFD, average PPFD, maximum PPFD, minimum PPFD, energy, transmission ratio (%), test time

    PHOTO-200DLI

    PPFD Sensor(DLI)

    PPFD umol/m².s (400-700nm) test range: 0.1-500,000umol/m².s (+/-0.01umol/m².s), total amount of effective radiation umol/m².d

    PHOTO-200B

    Blue Light Irradiance (460nm)

    Irradiance μW/cm² (peak: 40nm) test range: 0.1-200,000μW/cm² (+/-0.1μW/cm²), upper and lower limit settings, sorting tests, optical change curves (PC software), irradiation, average Irradiance degree, maximum Irradiance, minimum Irradiance degree, minimum Irradiance, degree Blu -ray energy μJ/cm², Irradiance transmission ratio (%), test time

    PHOTO-200UV

    UV Irradiance

    Irradiance μW/cm²(222 nm or 254nm or 365nm) test range: 0.1-500,000μW/cm² (+/-0.01μW/cm²), upper and lower limit settings, sorting tests, optical change curves (PC software), Irradiance degree, average Irradiance degree, maximum Irradiance, minimum Irradiance, UV energy, radiation transmission ratio (%), test time

    PHOTO-200UVZ

    UV Irradiance (Multiband)

    Irradiance μW/cm²(two -wave switching, etc. of 254nm and 365nm) test range: 0.1-500,000μW/cm² (+/-0.01μW/cm²), upper and lower limit settings, sorting tests, optical change curve (PC software), radiation, average radiation, maximum radiation, minimum radiation, UV energy, radical transmission ratio (%), test time

    PHOTO-200R

    Red Light Irradiance (650nm)

    Irradiance μW/cm² (Peak: 650nm) test range: 0.1-200,000μW/cm² (+/-0.1μW/cm²), upper and lower limit settings, sorting tests, light change curve (PC software), irradiation, average radiation degree, maximum radiation, minimum radiation, red light energy μJ/cm², radiation transmission ratio (%), testing time

    PHOTO-200IR

    nIR Irradiance

    Irradiance μW/cm² (850 nm and 940nm) test range: 0.1-500,000μW/cm² (+/-0.01μW/cm²)

    PHOTO-200IRZ

    nIR Irradiance (Multiband)

    Irradiance μW/cm² (850 nm and 940nm) test range: 0.1-500,000μW/cm² (+/-0.01μW/cm²)
