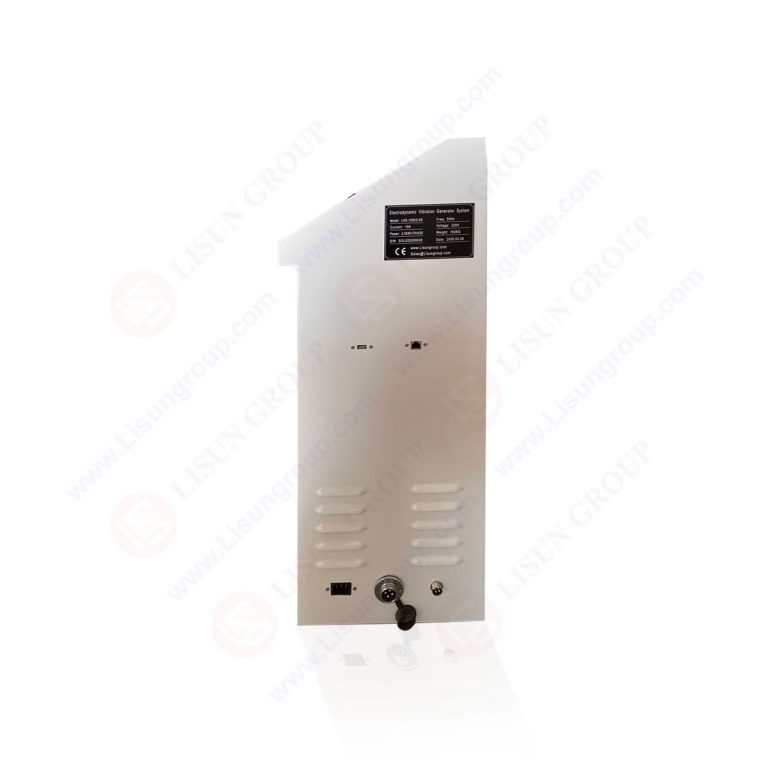

Electrodynamic Vibration Generator System

Product No: LVD-100KG

Leave a Message

=
  • Description
  • Video
  • Download
  • Electrodynamic Vibration Test System is used to simulate vibration states under various conditions by means of electromagnetic excitation to determine the vibration resistance, stability, and reliability of various components and finished products in service life.

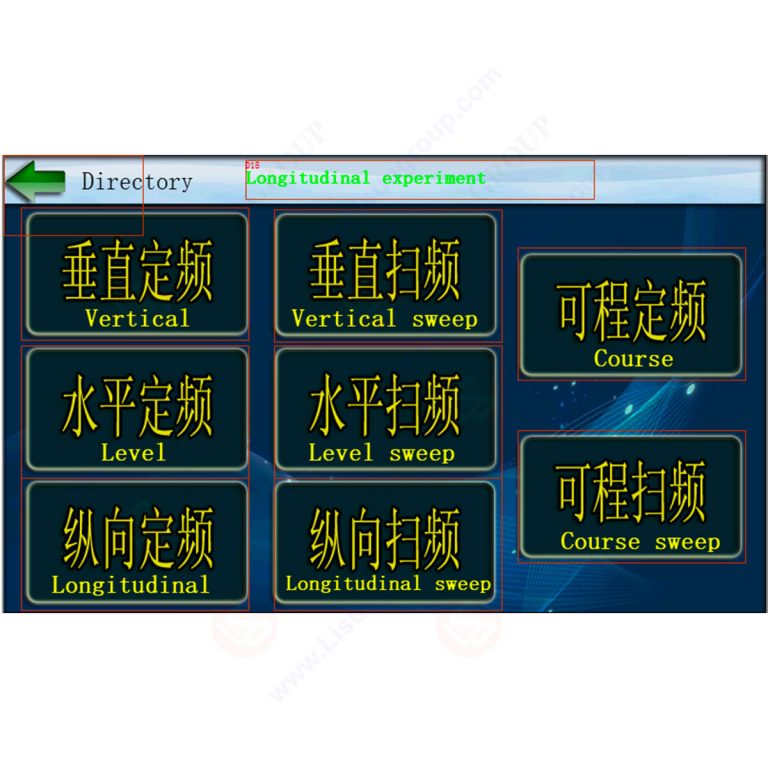

    • LVD-100KG: Combined the Vertical and Longitudinal total 4 directions in one test table.
    • LVD-100KG-6D: Combined the Vertical, Level and Longitudinal total 6 directions in one test table.

    Measurements:
    Sine Wave, Frequency Modulation, Sweep Frequency, Programmable, Frequency Doubling, Logarithm, High Acceleration speed, Amplitude Modulation, Time Control, Full-function Computer Control, simple and easy to set the acceleration and amplitude.

    Standard:
    IEC 60068 “Environmental testing – Part 2: Tests – ALL PARTS”
    IEC68-2-6 “Environmental testing – Part 2-6: Tests – Test Fc: Vibration (sinusoidal)”
    JJG189-97 “Electrodynamic Vibration Generator System for LED and Electrical Product Test”
    ISO 2247  “Packaging – Complete, filled transport packages and unit loads – Vibration tests at fixed low frequency”
    ISO 13355  “Packaging – Complete, filled transport packages and unit loads – Vertical random vibration”
    ASTM D999 “Standard Test Methods forVibration Testing of Shipping Containers”
    ASTM D4728 “Standard Test Method for Random Vibration Testing of Shipping Containers”
    ASTM D3580 “Standard Test Methods for Vibration (Vertical Linear Motion) Test of Products”
    IEC 60598-1:2020 Clause 4.20 ” Luminaires – Part 1: General requirements and tests”

    Specifications:
    • Vibration table size: 500*500mm (Other size can be designed)
    • Vibration: 0~5mm (Adjustable range P-P). Vibration waveform: sine wave (half wave and full wave). Acceleration speed: 0~20g (Adjustable)
    • Maximum test load capacity: 100kg
    • Accuracy: Frequency can be displayed to 0.01 Hz. Precision: 0.1 Hz.
    • Sweep frequency function (1~600Hz): (Upper frequency, Lower frequency, Time range) It can set real standard arbitrarily to sweep frequency back and forth
    • Programmable Function (1~600Hz): It can set 15 segments in one test with different parameters (frequency/amplitude/time/acceleration), and it can be recycled
    • Frequency doubling function (1~600Hz): 15 segments multiplied-increase:
    1)Low to high frequency
    2)High to low frequency
    3)Low to high and then to low frequency, it can be recycled
    • Logarithmic function (1~600Hz), 3 modes of logarithm/can be recycled:
    1)Lower to upper frequency
    2)Upper to lower frequency
    3)Lower to upper and then to lower frequency
    • Measuring instrument: To display amplitude, acceleration speed and the maximum acceleration speed

    Why do we measure vibration?
    Vibration test is to simulate the various vibration environment impacts encountered by the product in the transportation, installation. This test is to simulate the various impacts encountered by the product in the transportation, installation and use environment. This kind of vibration environmental impact is used to determine whether the product can withstand various environmental vibrations.

    LISUN LVD-100KG Electrodynamic Vibration Generator System – After Sales Questions and Answers.
    LISUN LVD-100KG Electrodynamic Vibration Generator System were in the market for more than 10 years, LISUN engineers service team already summary the most of the After Sales Questions and Answers in the above link. Please read it carefuly, you can solve the most of the problems by yourself if you have some questions while using the instruments. LISUN will be continue to update this pages and more FAQ can be found in this topic link.
