LED Optical Aging Test Instrument

Product No: LEDLM-84PL

Leave a Message

=
  • Description
  • Video
  • Download
  • LEDLM-84PL LED Lumen Maintenance and Aging Life Test System is designed according to IES LM-84 and TM-28. It is used to test & record the optical and electrical maintenance for LED luminaires. The software is based on Arrhenius model and TM-28 to calculate the LED life. The LEDLM-84PL needs to work with GDJW Series High and Low Temperature Chamber (Option is GW Series) and LSP-1KVARC AC Power Source. Please click to view the test report samples of LM-84 and TM-28.

    LEDLM-80PL LED Lumen Maintenance and Aging Life Test System is designed according to IES-LM-80 and TM-21. It is used to test & record the optical and electrical maintenance for single LEDs or LED module. The software is based on Arrhenius model and TM-21 to calculate the LED life. The LEDLM-80PL needs to work with GDJW Series High and Low Temperature Chamber (Option is GW Series) and and DC6010 Series DC Power Source. Please click to view the test report samples of LM-80 and TM-21.

    LED has the feature of long life, but its life will be different with the different working condition and driver current. Generally the life will be around 50K hours. Different from the traditional lightsource, LED light will decay gradually rather than extinguish instantly.
    1) L70 (hour): time to 70% lumen maintenance
    2) L50 (hour): time to 50% lumen maintenance

    video

    Standard:
    IES LM-84 “Measuring Optical Radiation Maintenance of LED Lamps, Light Engines, and Luminaires”
    IES-LM-80 ” LED Lumen Maintenance and Aging Life Test “
    LM-79-19 “Optical and Electrical Measurements of Solid State Lighting Products”

    Specification:
    • Record the changing curves of lumen, colorimetric and electrical parameters VS time
    • Test and record the light attenuation data within a short time, then software will predict the LED life
    • Introduction to Arrhenius Model, make the final result more reliable and efficient
    • The LEDLM-84PL test system works with LISUN GDJW-015A GDJW Series High and Low Temperature Chamber can test 8 LED luminaires at one time; the LEDLM-80PL test system works with LISUN GDJW-500A  High and Low Temperature Chamber can test 16 single LEDs or LED module at one time . (Option 1: Up to 3 sets Temperature Test Chambers can be connected to work with LEDLM-84PL/LEDLM-80PL at the same time for testing. Option 2: Other size High and Low Temperature Chamber

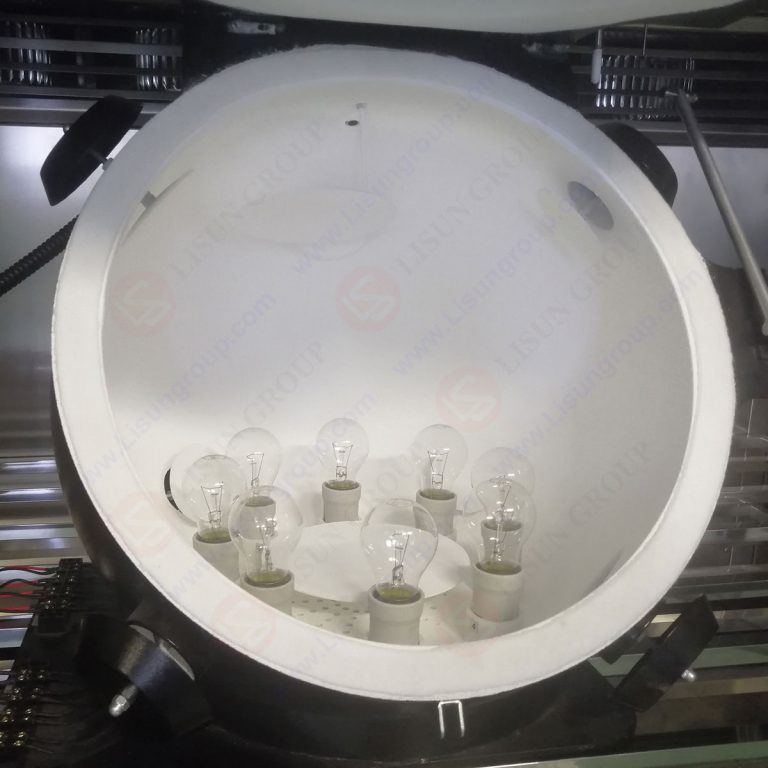

    • The LEDLM-84PL test system already includes a 0.5m customized integrating sphere for bulbs, a customized integrating sphere for max1.2m tubes, and test terminals for outdoor luminaires; the LEDLM-80PL test system already includes a 0.3m customized integrating sphere which has been built-in a set of multi-functional jig that can test 16 single LEDs/LED modules at the same time. (Option: other special integrating spheres, test fixtures or jigs can be customized according to customer requirements)
    • The system supply two solutions for LED lumen maintenance and aging test:
    1. Strictly according to LM-84 or LM-80 to test up to 6000 hours to get L50 and L70 test report based on TM-28 or TM-21, LISUN LEDLM-84PL/LEDLM-80PL test system will be fully automatic, and no manual operation is required for the 6,000-hour test.
    2. LISUN LEDLM-84PL/LEDLM-80PL test system supply a fast accelerated test. The software was designed based on the Arrhenius Model to simulate 6000 hours testing in a “short time” to get the L50 and L70 test report based on TM-28 or TM-21. This solution saves a lot of time for the testing company.

    LED Optical Aging Test Instrument LED Optical Aging Test Instrument LEDLM 80PL AL5

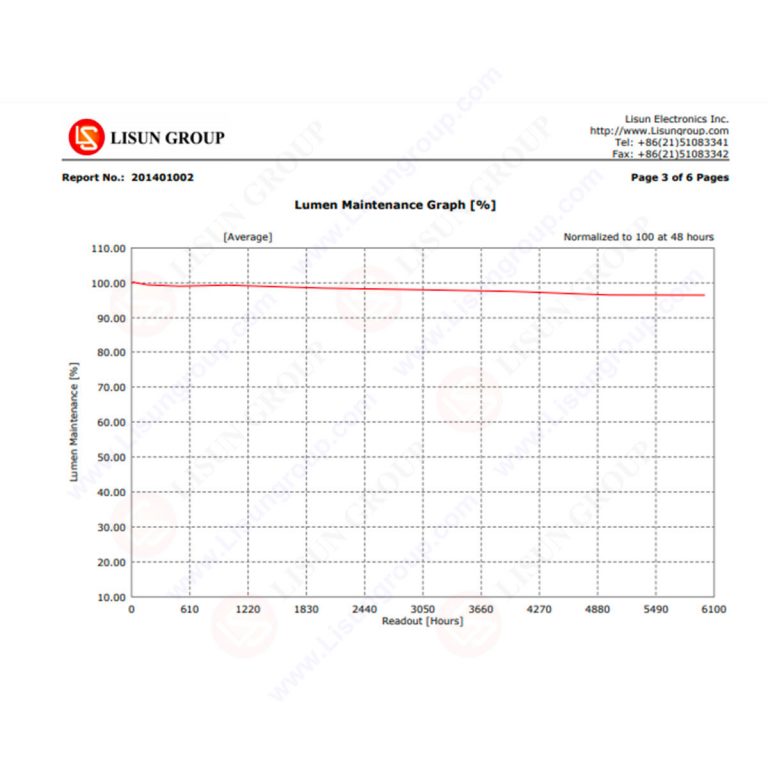

    LEDLM-80PL LED Optical Aging Test Report (Sample)



    LISUN LEDLM-80PL LED Optical Aging Test Instrument – After Sales Questions and Answers.
    LISUN LEDLM-80PL LED Optical Aging Test Instrument were in the market for more than 10 years, LISUN engineers service team already summary the most of the After Sales Questions and Answers in the above link. Please read it carefuly, you can solve the most of the problems by yourself if you have some questions while using the instruments. LISUN will be continue to update this pages and more FAQ can be found in this topic link.
