UV Lamp Test System

Product No: LPCE-2(LMS-9000CUV)

Leave a Message

  • Description
  • Video
  • Download
  • The LPCE-2(LMS-9000CUV) UV Lamp Test System is used to test Spectrum, Radiant, Efficiency, UVA, UVB, UVC radiant and electric parameters of the UV lamp (light source). Please click here to see the test report sample: UVA Lamp Spectral-Radiance Test Report, UVB Lamp Spectral-Radiance Test Report and UVC Lamp Spectral-Radiance Test Report. The system includes the following instruments:

    1. LMS-9000CUV High Precision UV Spectroradiometer:
    Chromaticity coordinates, Peak Wavelength, Relative Spectral Power Distribution, Radiant Power, ect.

    2. CFS-1.5M Silica Fiber
    Mainly used for optical signal transmission between LMS-9000CUV spectroradiometer and dark case.

    3. CASE-UV036 Dark Case for UV Test
    Provide testing environment for UV light source. The internal dimensions is 60*60*100cm

    4. CLAMP-2B Multi-function LED Clamps Set for UV Test (including movable rail)
    CLAMP-2B is suitable for most SMD and through-hole single UV light sources test, it can move on the 60~316mm grail (the movable rail has been built-in the CASE-UV036 Dark Case) to test various UV light sources with different light intensities.

    CASE-UV036 Dark Case for UV Test and CLAMP-2B Multi-function LED Clamps Set (including movable rail)

    5. SLS-UV UV Standard Light Source with Power Supply
    The UV spectrum calibration system includes a UV standard light source and a Special power supply for UV standard light source. The standard light source is a deuterium light source. Deuterium lamp spectrum is continuous, it is an ideal UV light source for photometric analysis instruments. In order to ensure the stability of the light source and prolong its service life, the standard light source is equipped with a special power supply.

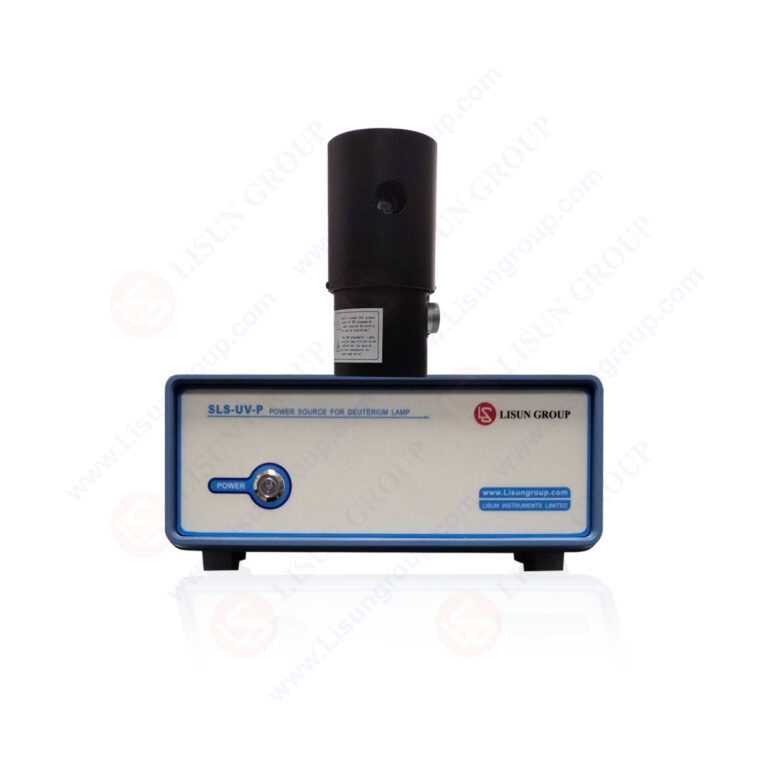

    UV Standard Light Source with Power Supply

    UV Standard Light Source with Power Supply

    Preheating voltage: 2.5V
    Preheating current: 4A
    • Trigger voltage: 350V
    • Lamp current: 300mA
    Wavelength range: 200~400nm

  • UV Lamp Test System - Introduction Video

  • LMS-9000CUV UVA Lamp Test Report LMS-9000CUV UVB Lamp Test Report LMS-9000CUV UVC Lamp Test Report
