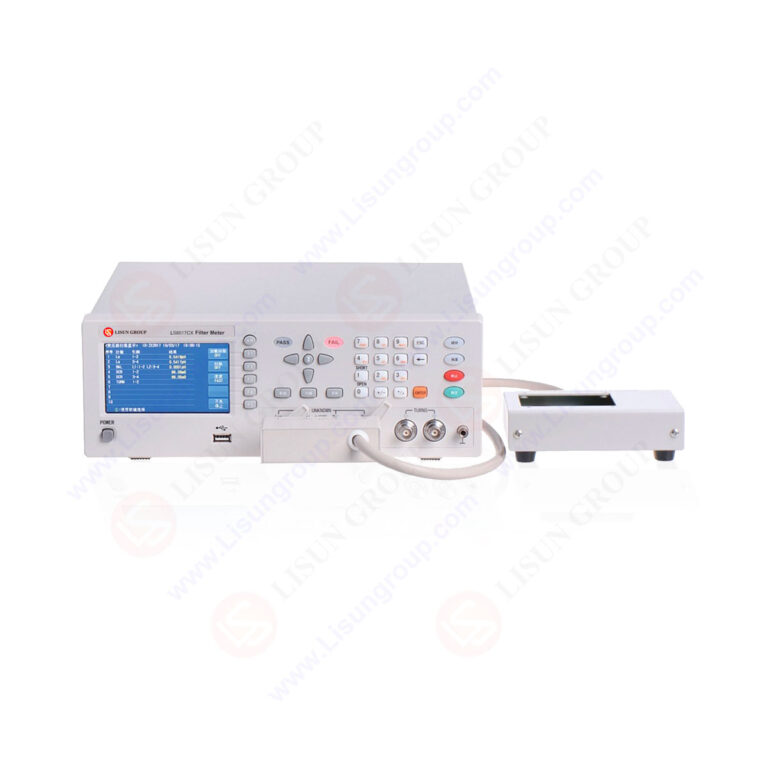

Common Mode Inductor Balance Tester

Common Mode Inductor Balance Tester

Product No: LS8517CX

Leave a Message

=
  • Description

  • Common mode inductor balance tester is also called filter balance tester. It is suitable for all kinds of common mode inductors, filter common mode inductors Ls, DCR balance measurement. Its measuring accuracy is up to 0.1% and it can meet the measurement requirements of production line quality assurance, incoming inspection and component design and evaluation. Equipped with a more comprehensive communication and control interface, the connection of automation equipment is simple and convenient.

    The following are product models and differences, please purchase on demand:
    • LS7575BN: Maximum frequency 10KHz, 4.3 “LCD 2U standard case
    • LS1085CX: Test frequency 50-200kHz, DCR test function, standard test box, balance fixture
    • LS8517CX-4PA: 2 pairs of winding test with frequency 50-200kHz, can simultaneously test Ls, DCR, cycle ratio, balance function
    • LS8517CX-6PA: 3 pairs of winding test with frequency 50-200kHz, can simultaneously test Ls, DCR, cycle ratio, balance function

    Model

    LS7575BN

    LS1085CX

    LS8517CX

    Test frequency



    100Hz,120Hz,1kHz,10kHz

    50Hz～200kHz,

    42 typical frequency points

    50Hz ～ 200kHz,

    37 typical frequency points

    Test parameter

    L, Q, R

    L、C、R、Q、|Z|、DCR

    L、R、Q、|Z|、θ(RAD),C,DCR

    Test level

    0.1Vrms, 0.3Vrms, 1Vrms

    10mV～1Vrms

    50mV-2.0V，Continuously adjustable

    Basic accuracy

    0.1%，Accuracy table shall prevail

    0.05%，Accuracy table shall prevail

    Display

    range









    |Z|

    –

    0.1 mΩ～99.999MΩ

    0.1 mΩ～99.999MΩ

    L

    0.0001μH～999.99H

    0.0001μH～9999.9H

    0.0001μH～999.99H/ 0.0001μH～9999.9H

    R

    0.01 mΩ～99.999MΩ

    0.1 mΩ～99.999MΩ

    0.01 mΩ～99.999MΩ

    Q

    0.0001～9999

    0.0001～99999

    0.1～9999.9

    θ(RAD)

    –

    -3.14159～3.14159

    θ(DEG)

    –

    -179.99 o ～179.99o

    Δ%

    –

    -99.999%～99.999%

    DCR

    –

    0.1 mΩ～99.999MΩ

    0.01mΩ-99.9999MΩ

    Test speed



    Fast speed: 30 times/second,

    medium speed: 6 times/second,

    slow speed: 1.5 times/second

    Fast speed: 50 times/second,

    medium speed: 20 times/second,

    slow speed: 6 times/second

    Source impedance

    30Ω、100Ω

    30Ω、50Ω、100Ω、10/100Ω

    Range mode

    Automatic and hold

    Trigger mode



    Internal, manual, external

    Internal, manual, automatic, external, bus

    Calibration function

    Open/short circuit, full frequency clear zero

    Equivalent circuit

    Series and parallel

    Comparator



    BIN0～BIN3、NG、Pass、Fail

    PASS、HI、LOW(PASS/FAILLED)

    PASS、HI、LOW(PASS/FAILLED)、Buzzer



    Ports

    RS232C、UsbHost、USB Device、Handler

    Memorizer

    –

    Internal 50 groups, external U disk 500 groups of files

    Working temperature

    humidity

    0℃～40℃，Relative humidity≤75%

    Working power

    100～120 V AC/198～242 V AC, 46～64 Hz，Power >50 VA

    Volume(WxHxD)

    310mmx110mmx315mm

    Net weight

    2.5Kg

    5.5Kg
